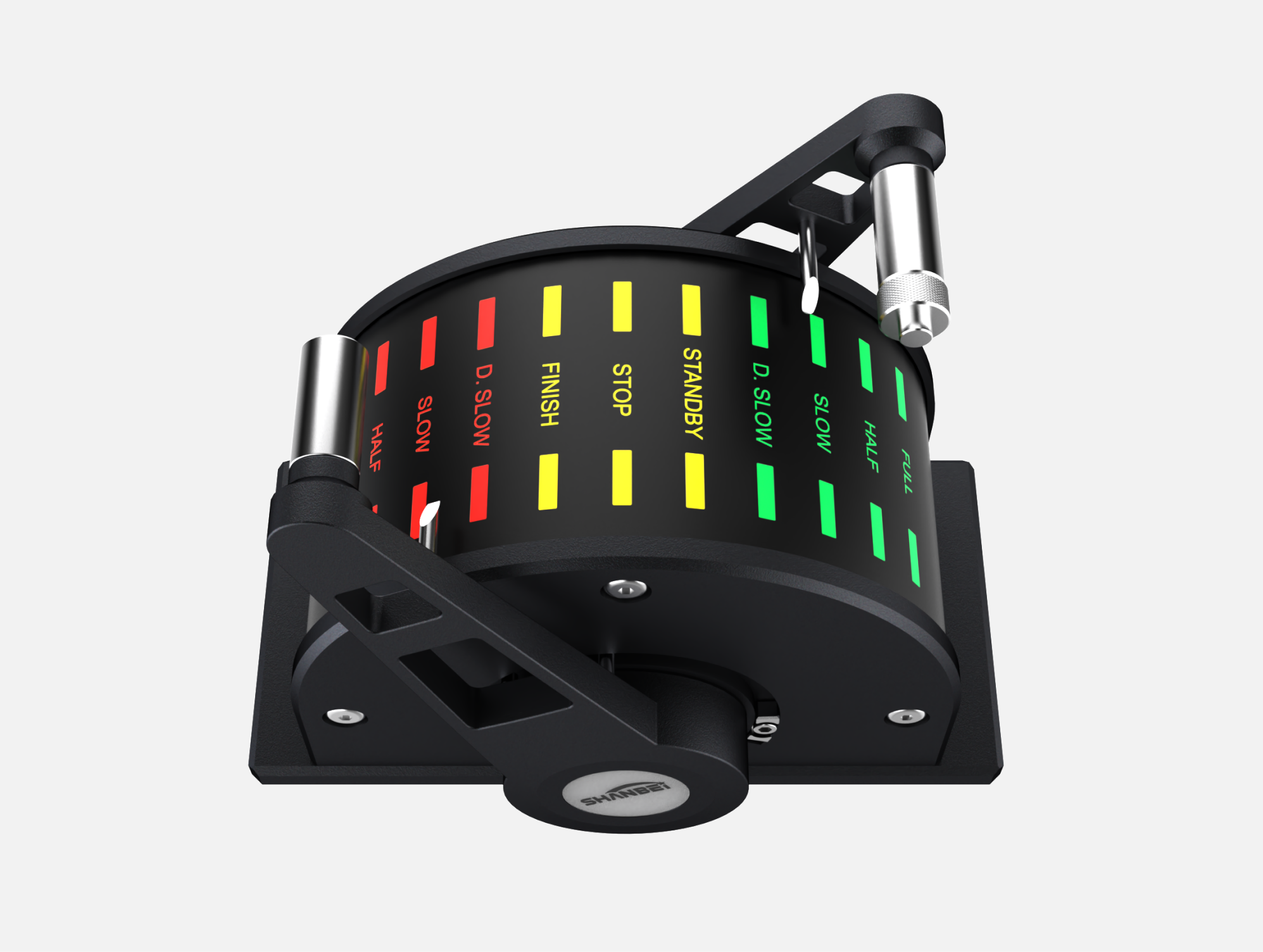

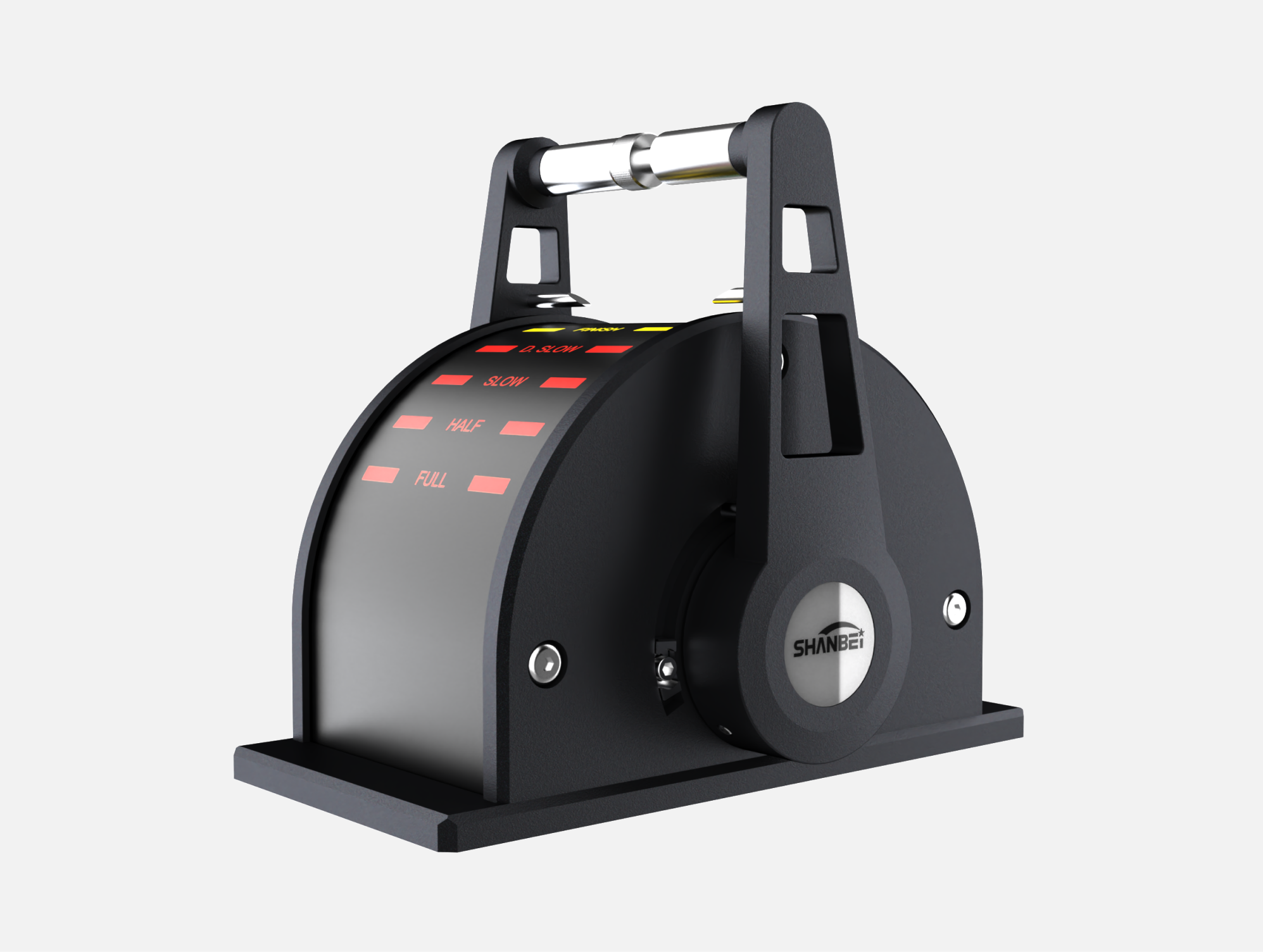

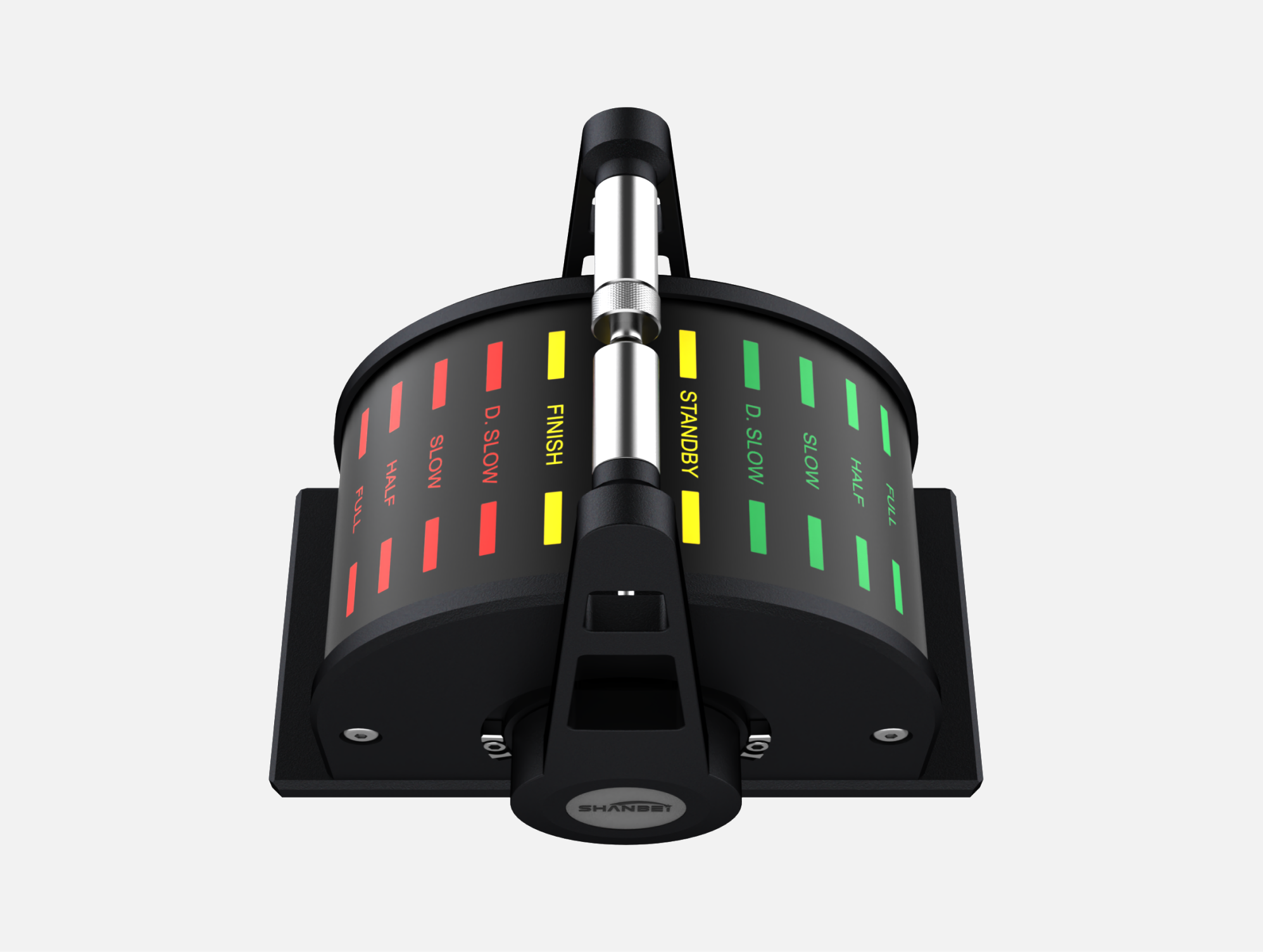

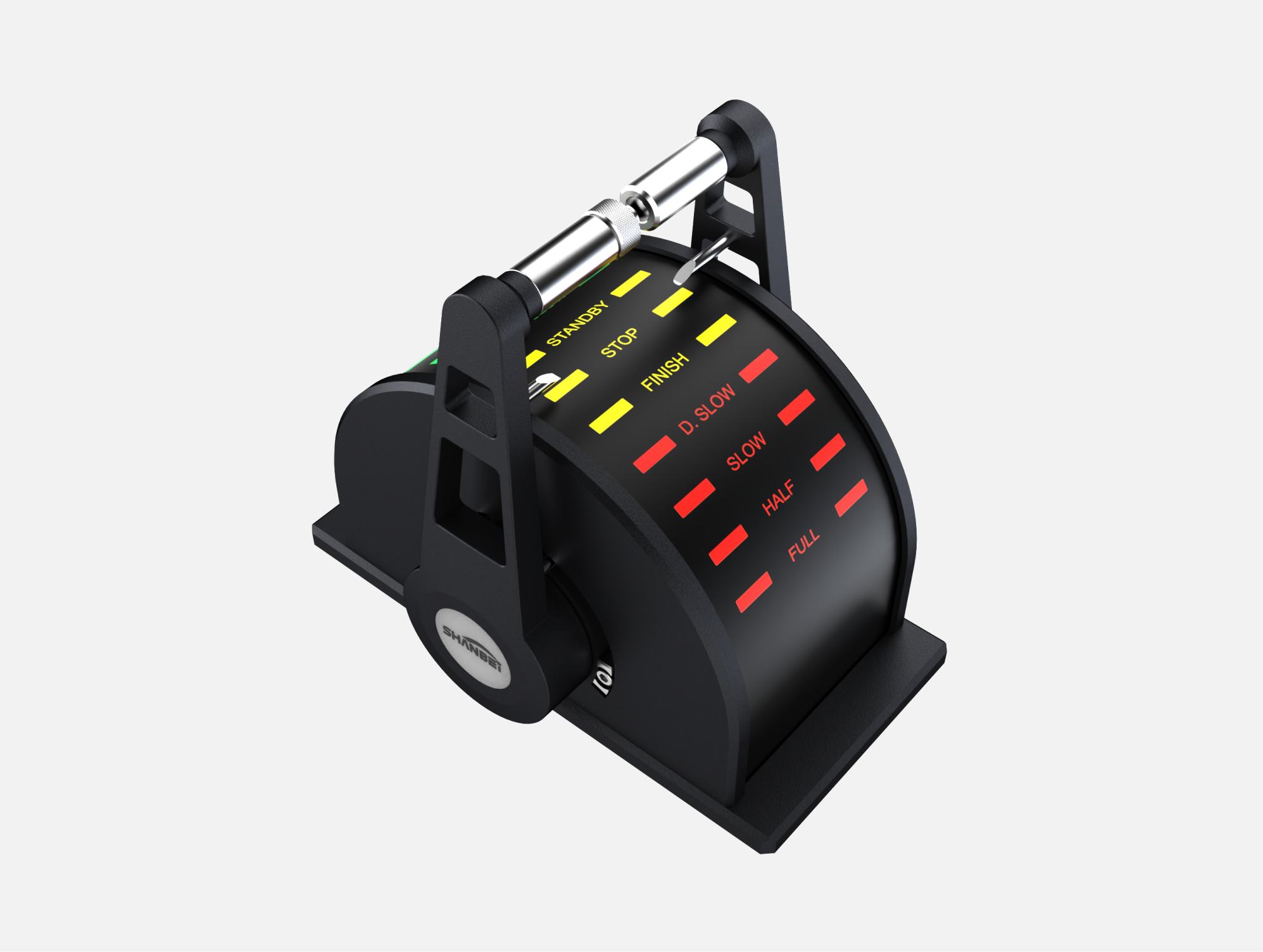

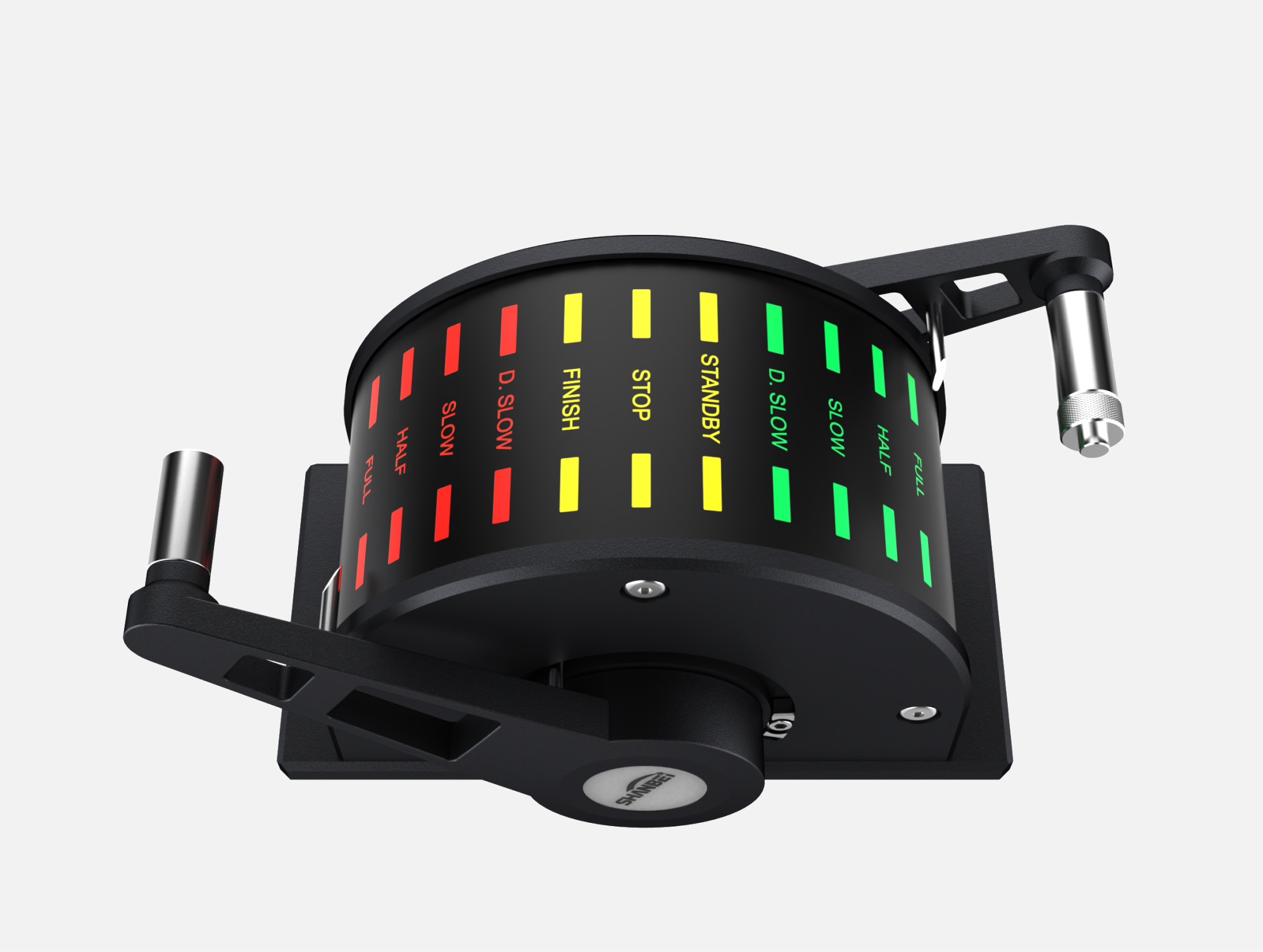

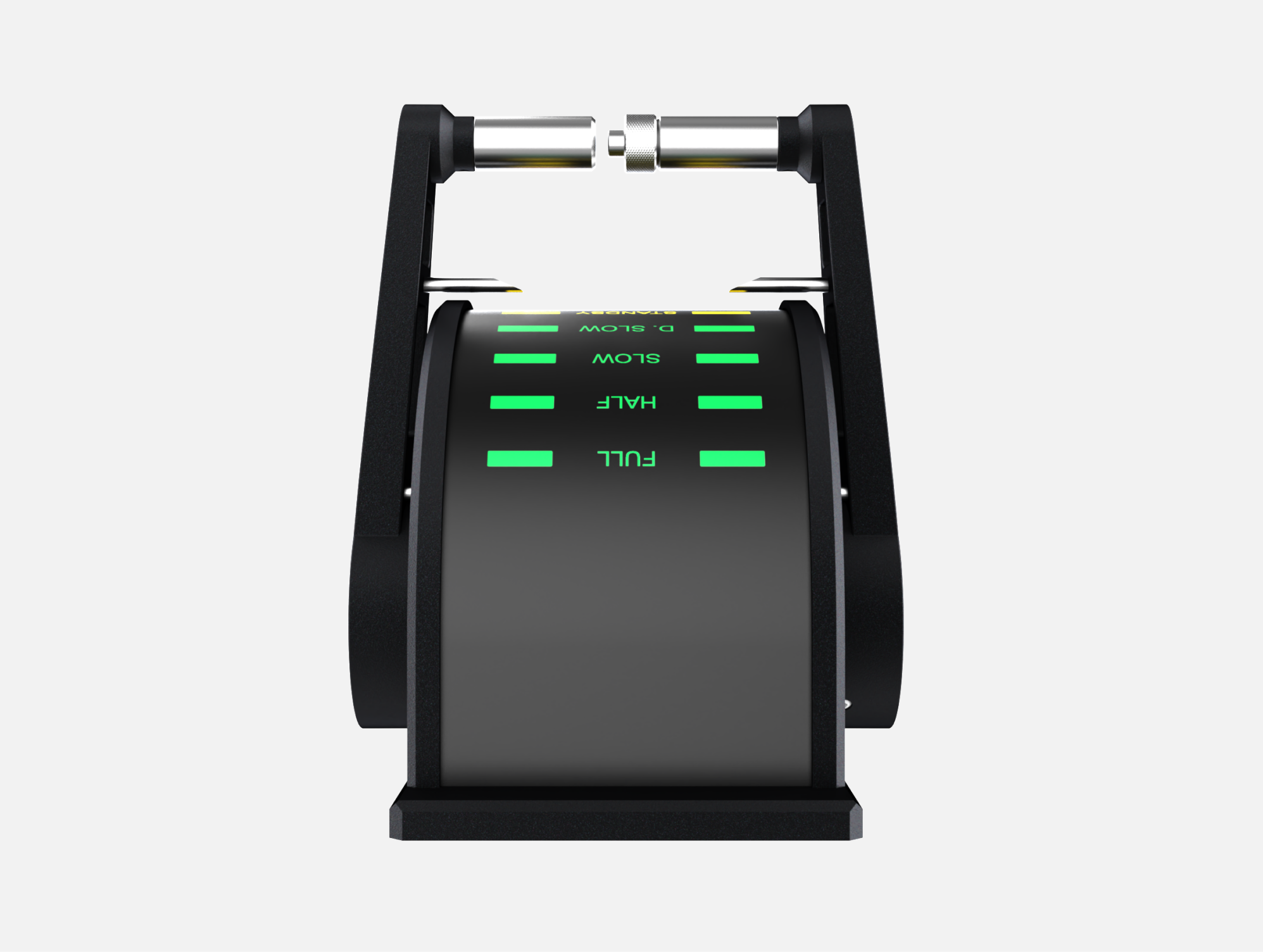

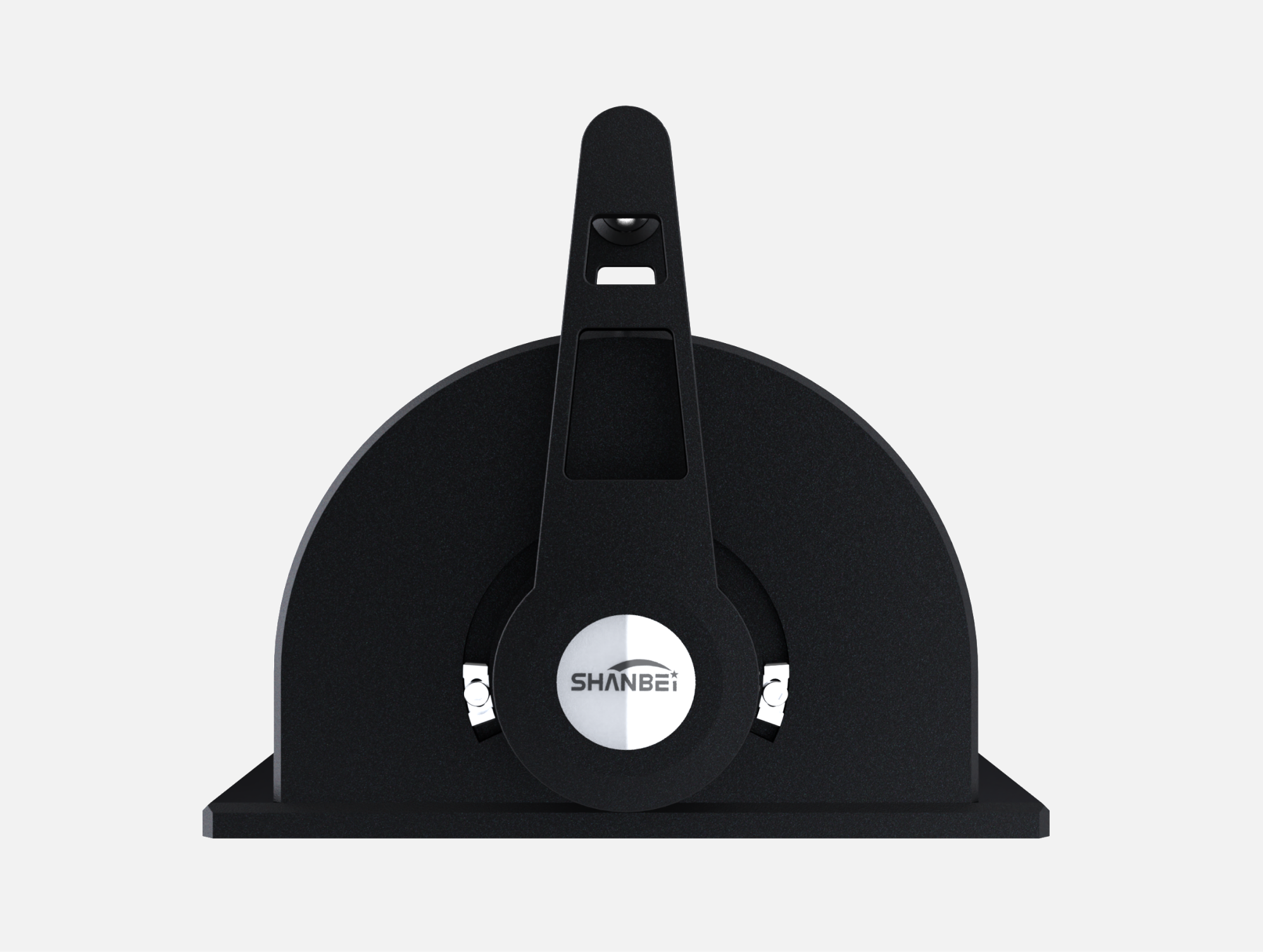

WLF-180
Main propulsion control handle
The WLF-180 main thrust control handle is used for the speed control of the ship main engine, and can also be used for the control of other main equipment.
Contact Us 0574-87186781
FEATURES
PARAMETER
-
Supply voltage24VDC
-

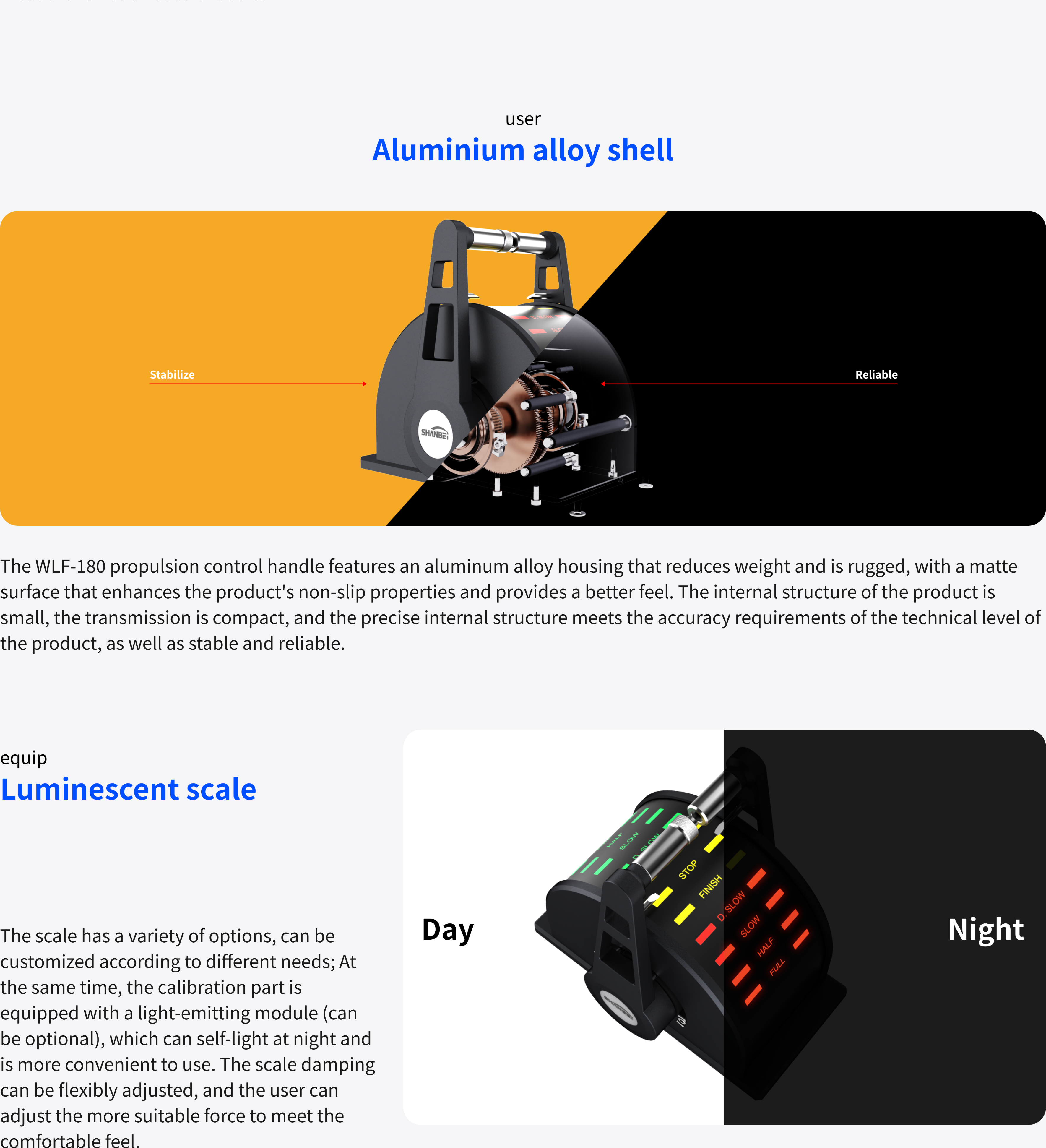

Body materialAluminum alloy black spray
-
Spindle materialStainless steel
-
Handle materialPOM
-

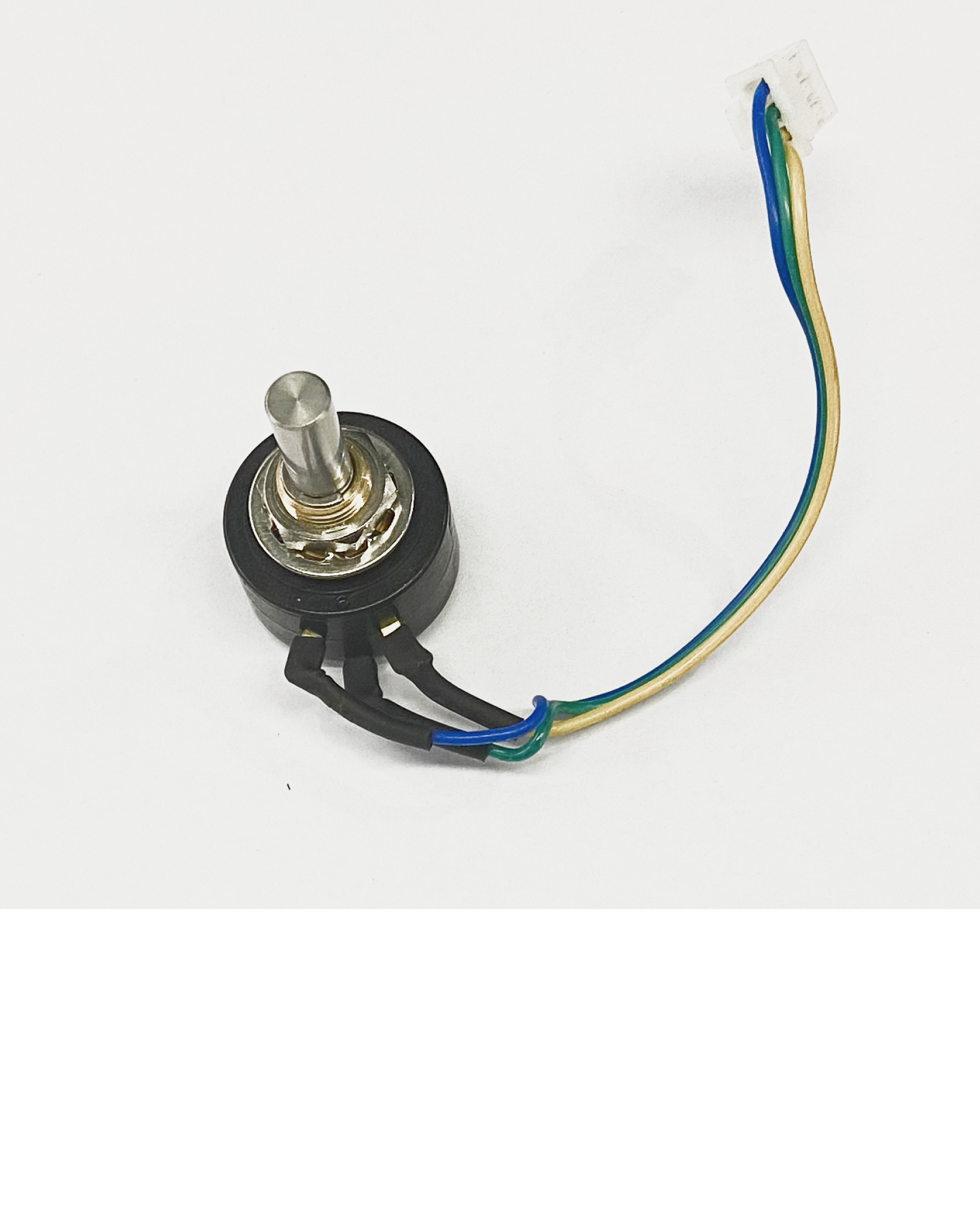

Potentiometer resistance5K
-
Transmission modeGear drive
-

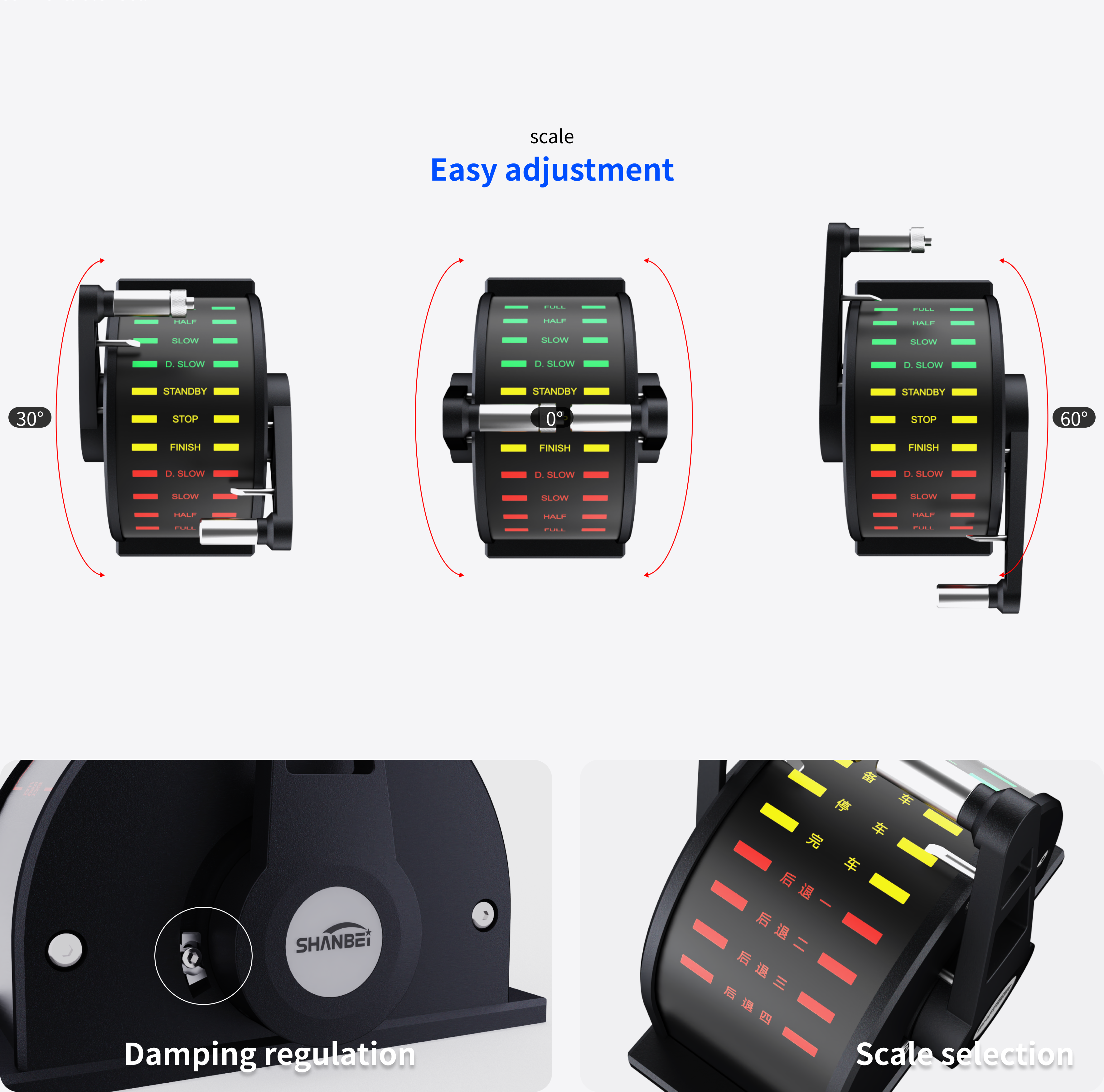

Handle rotation range-60~0~60°
-
Class of protectionIP56
-
Connection mode16 bit terminal
CUSTOMIZATION
-
TypeLeftRightDouble push
-
Gear grading indicationYesNo
-
Graduated film%ChineseEnglish
-
Potentiometer brandMade in ChinaEntrance
-
Potentiometer resistance5KΩOther
-
Remote control handleYesNo
-
Remote synchronizationYesNo
-
Limit switchYesNo
-
Integrated key switchYesNo
ACCESSORIES

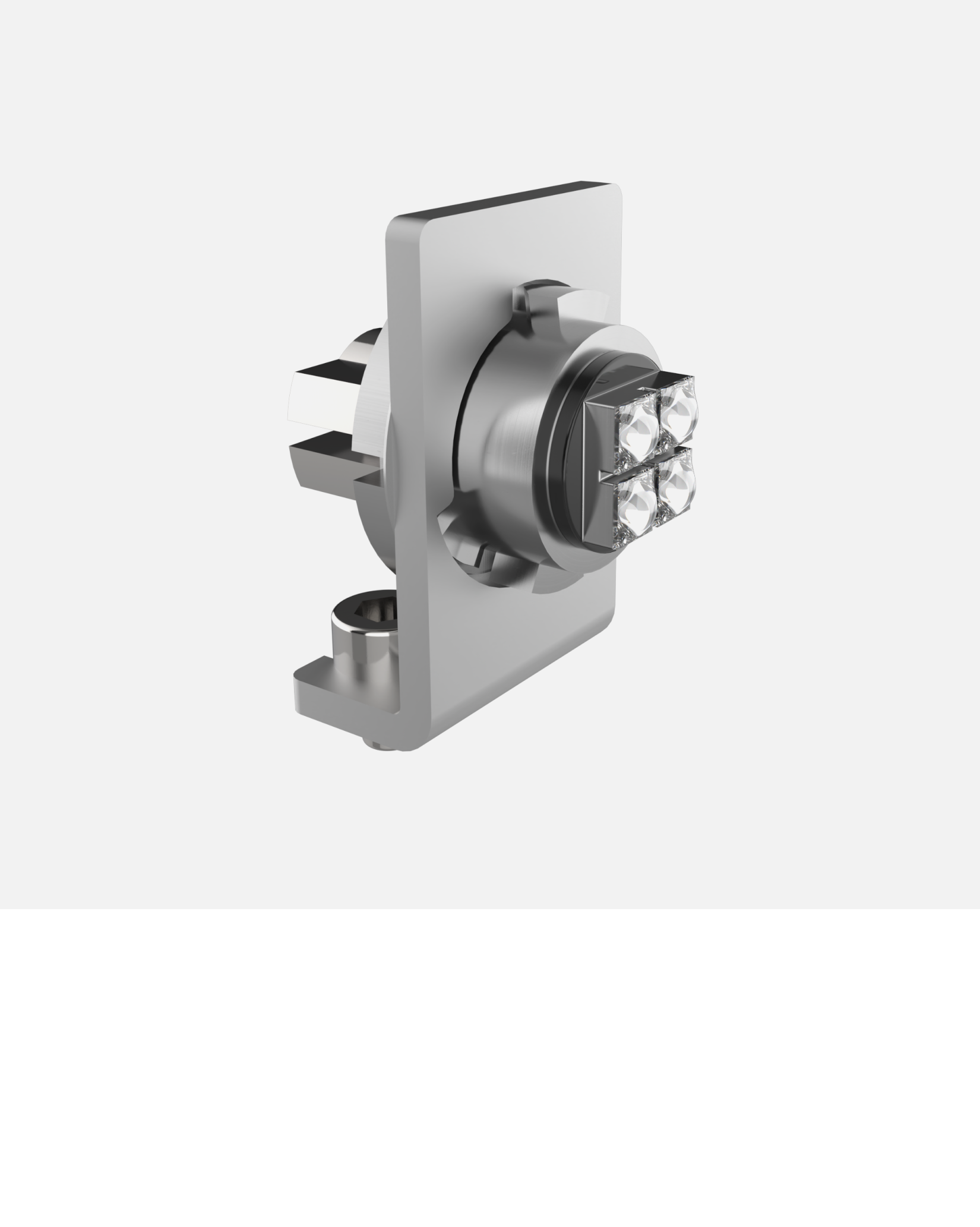

Lighting element
Driver circuit board

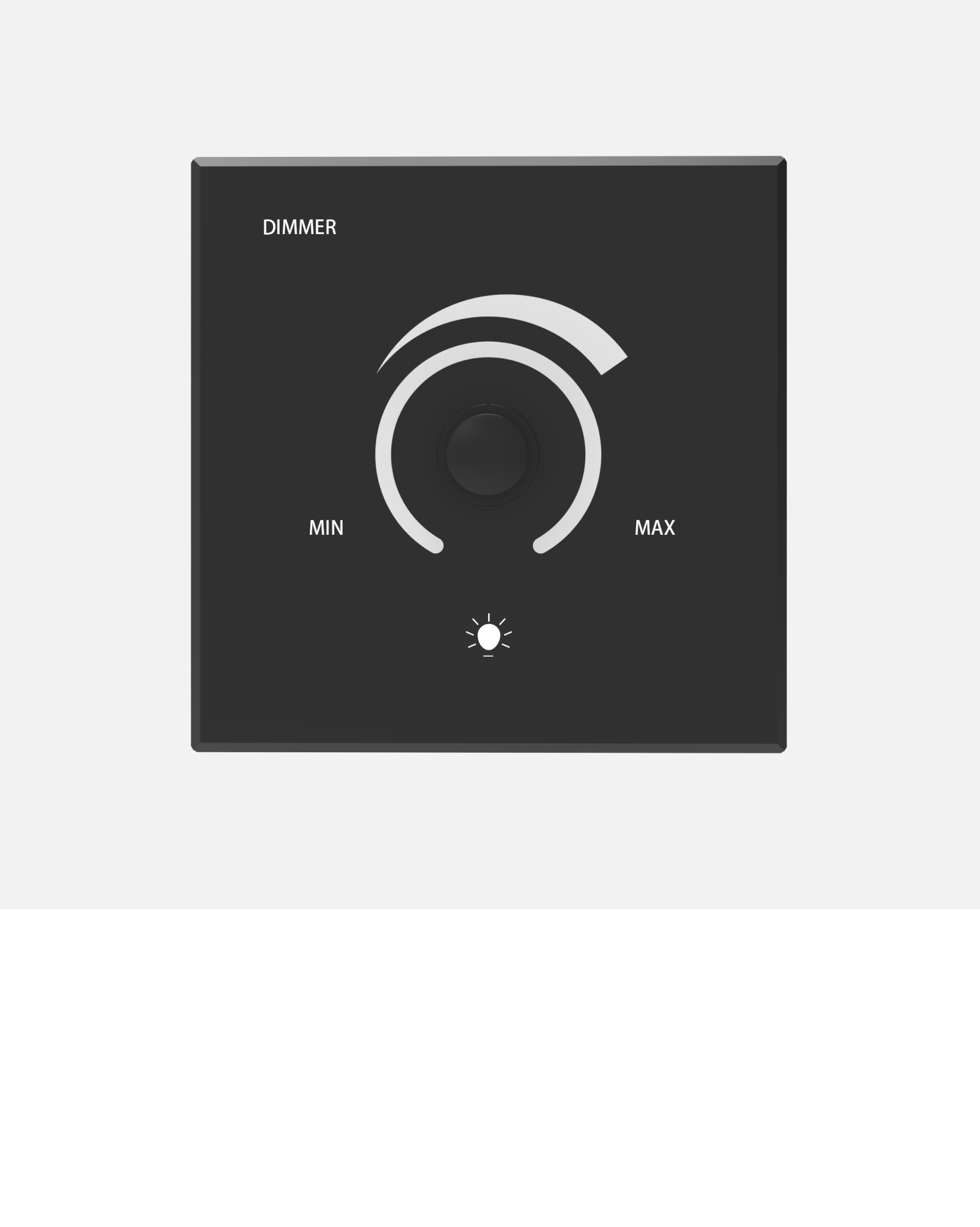

Dimmer button
