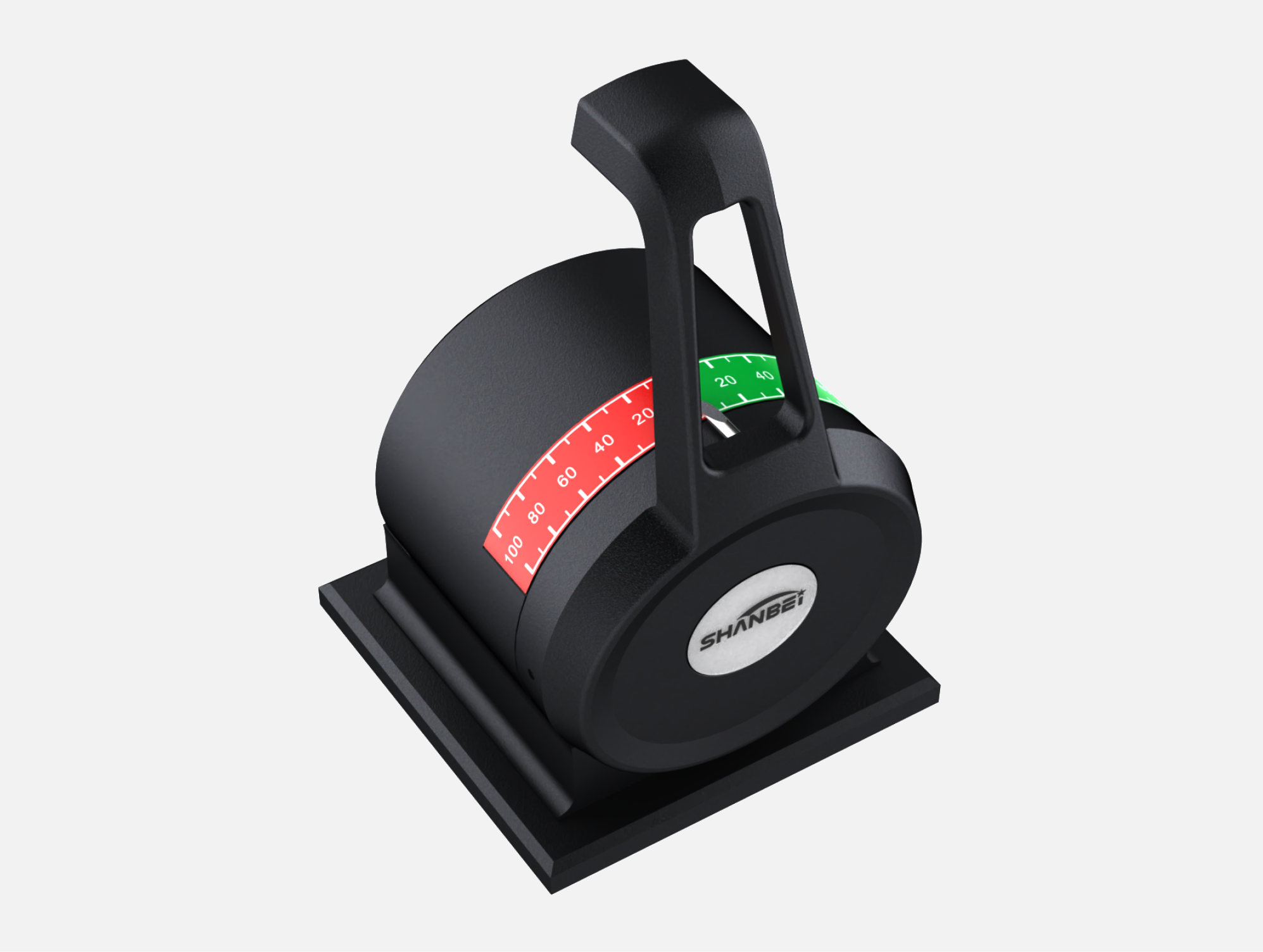

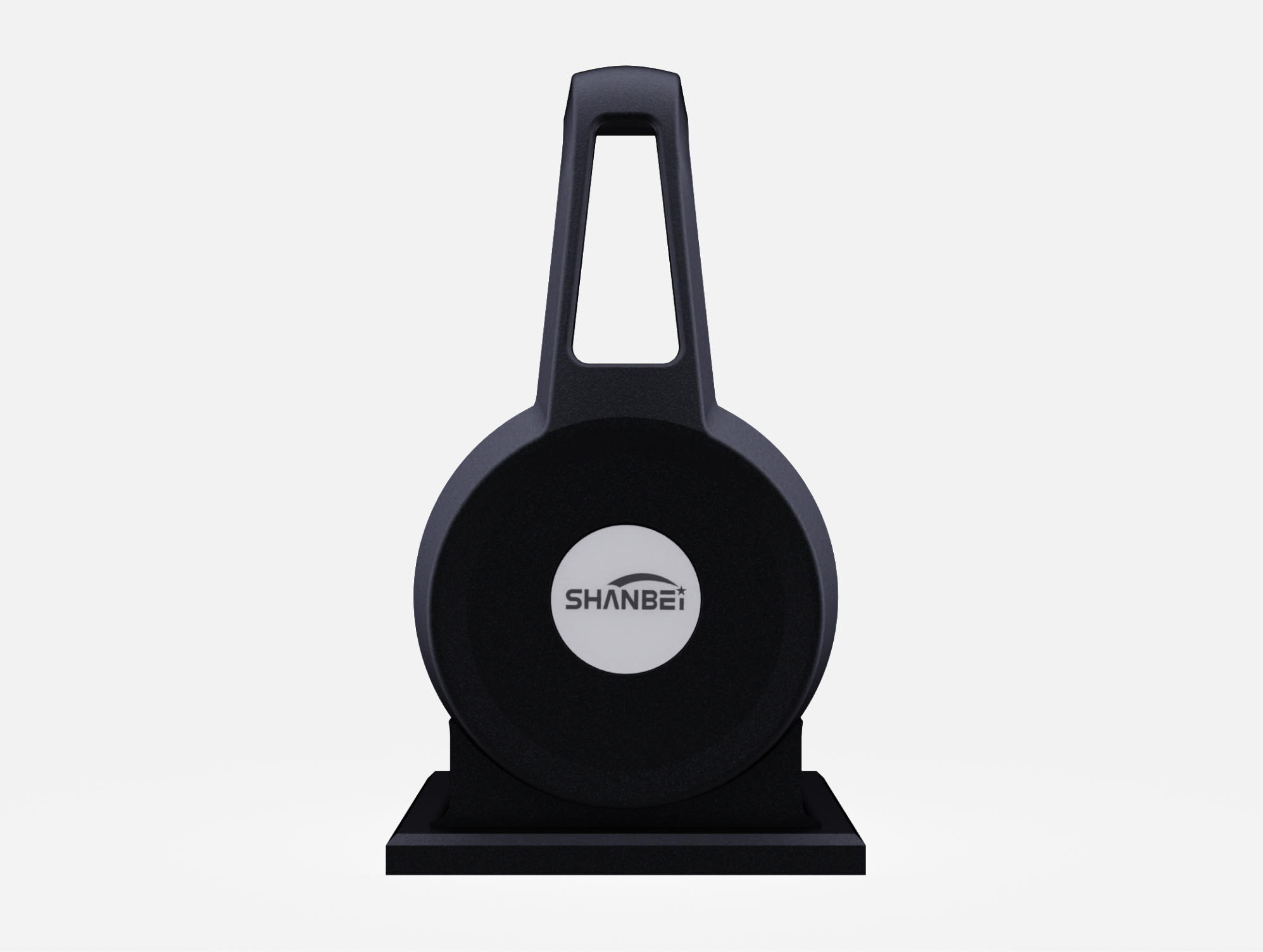

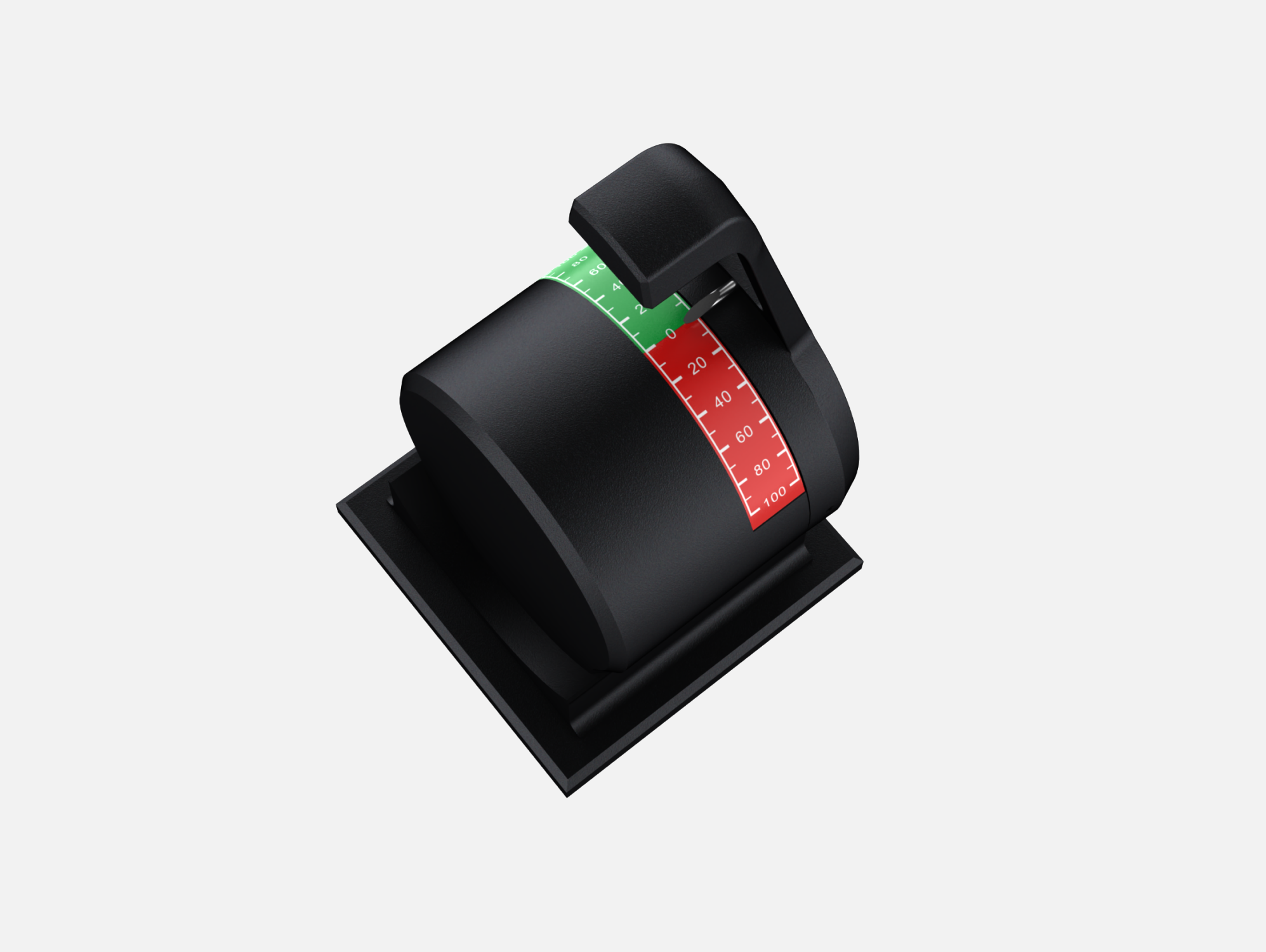

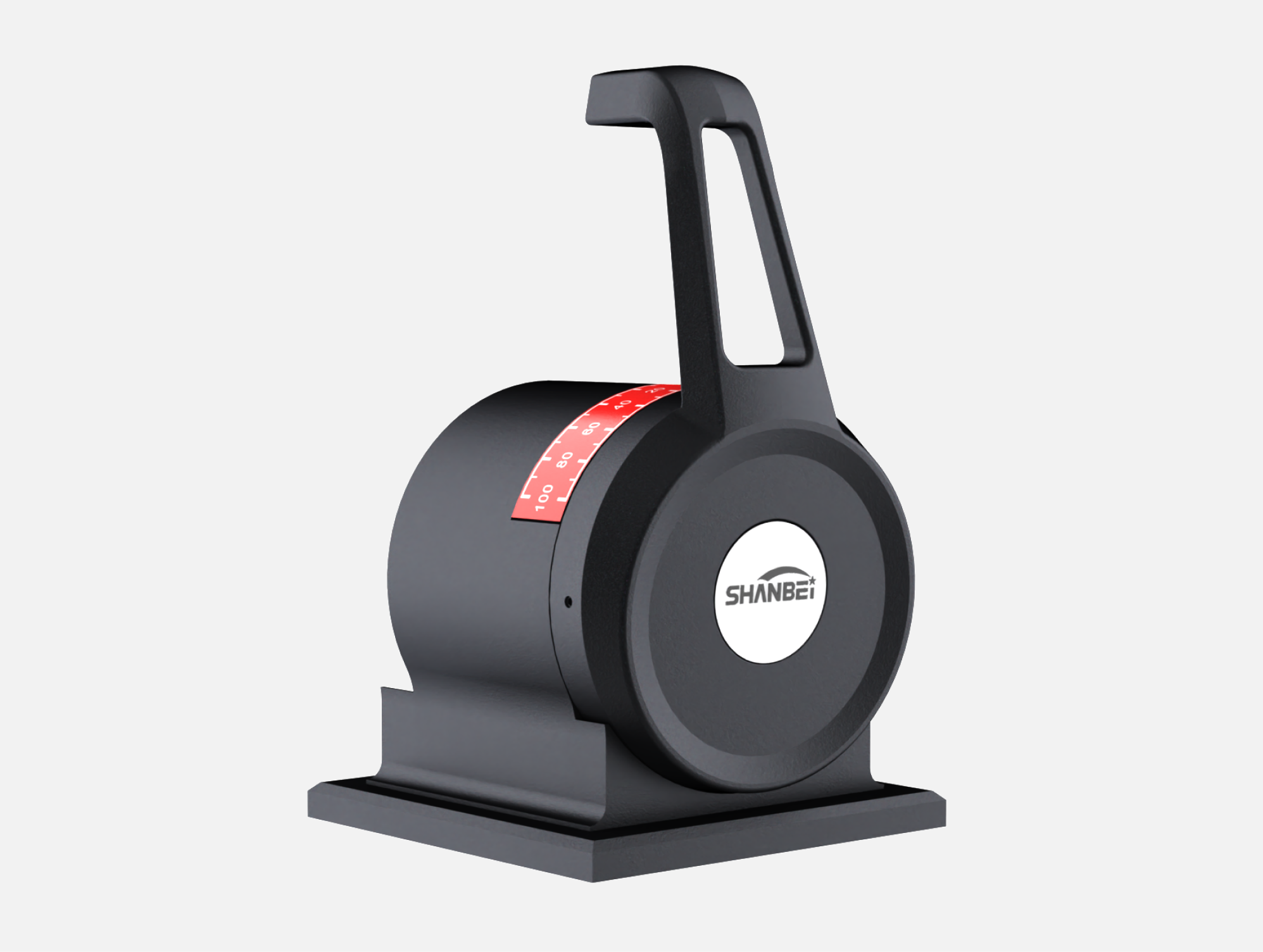

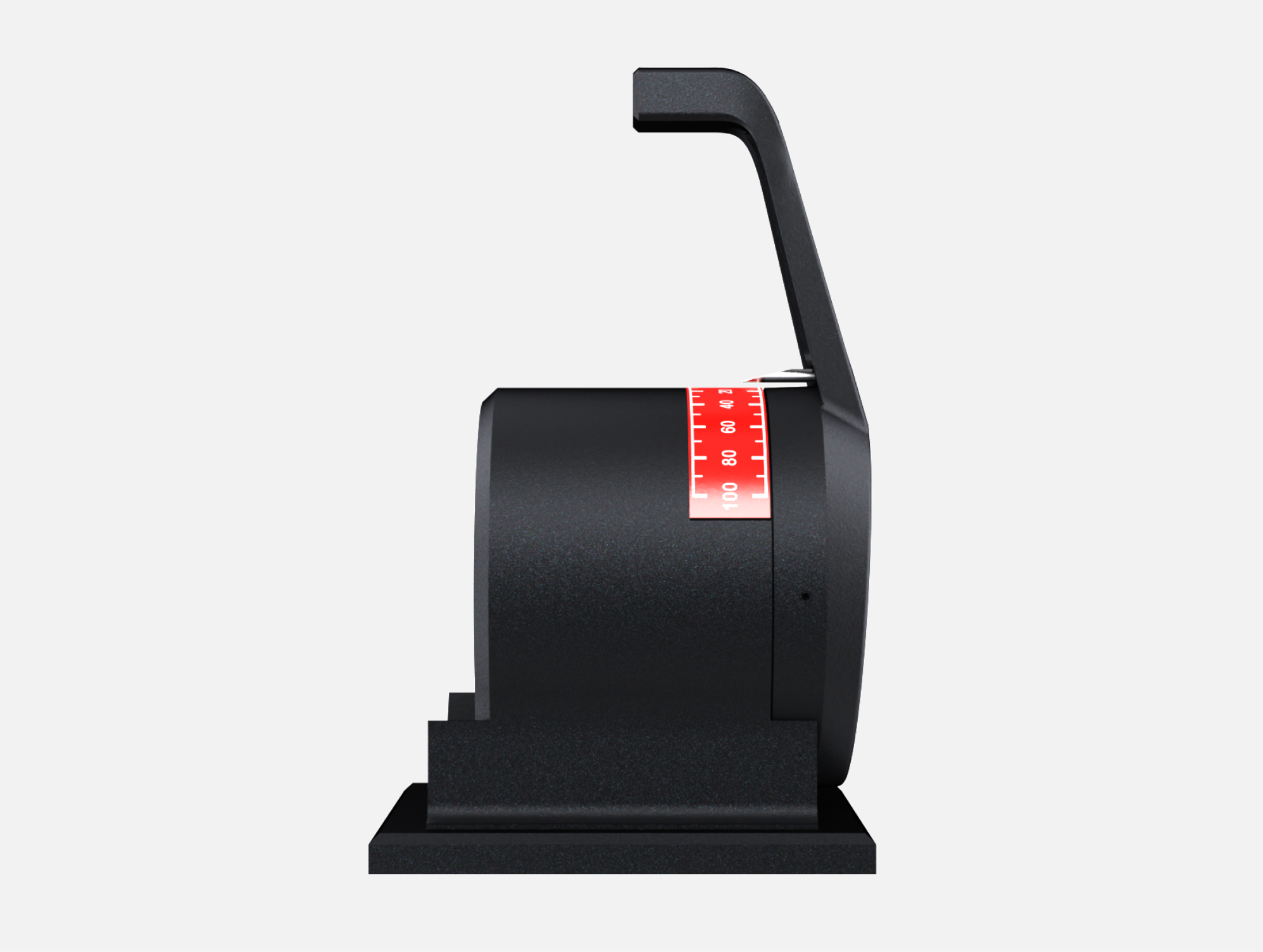

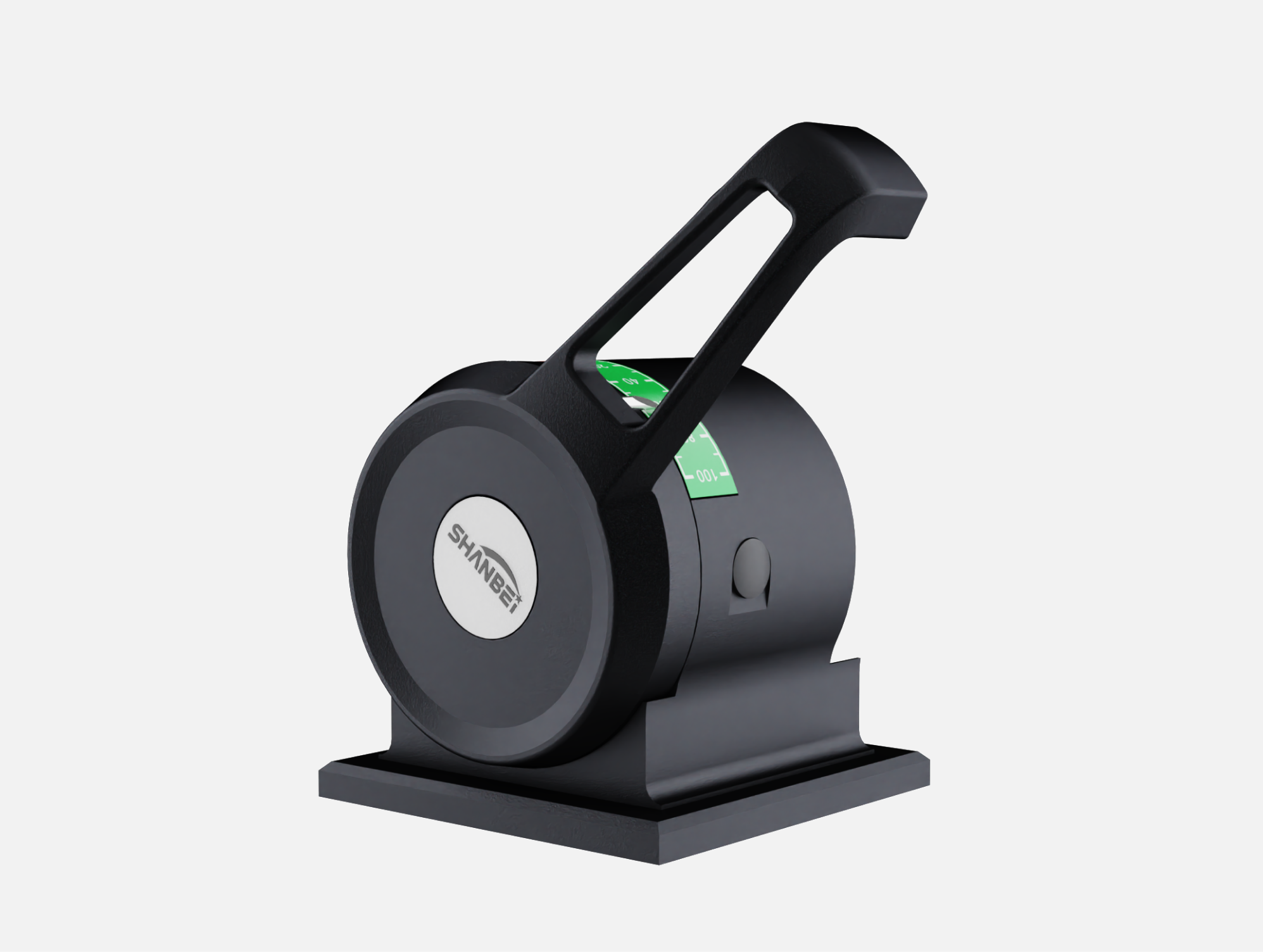

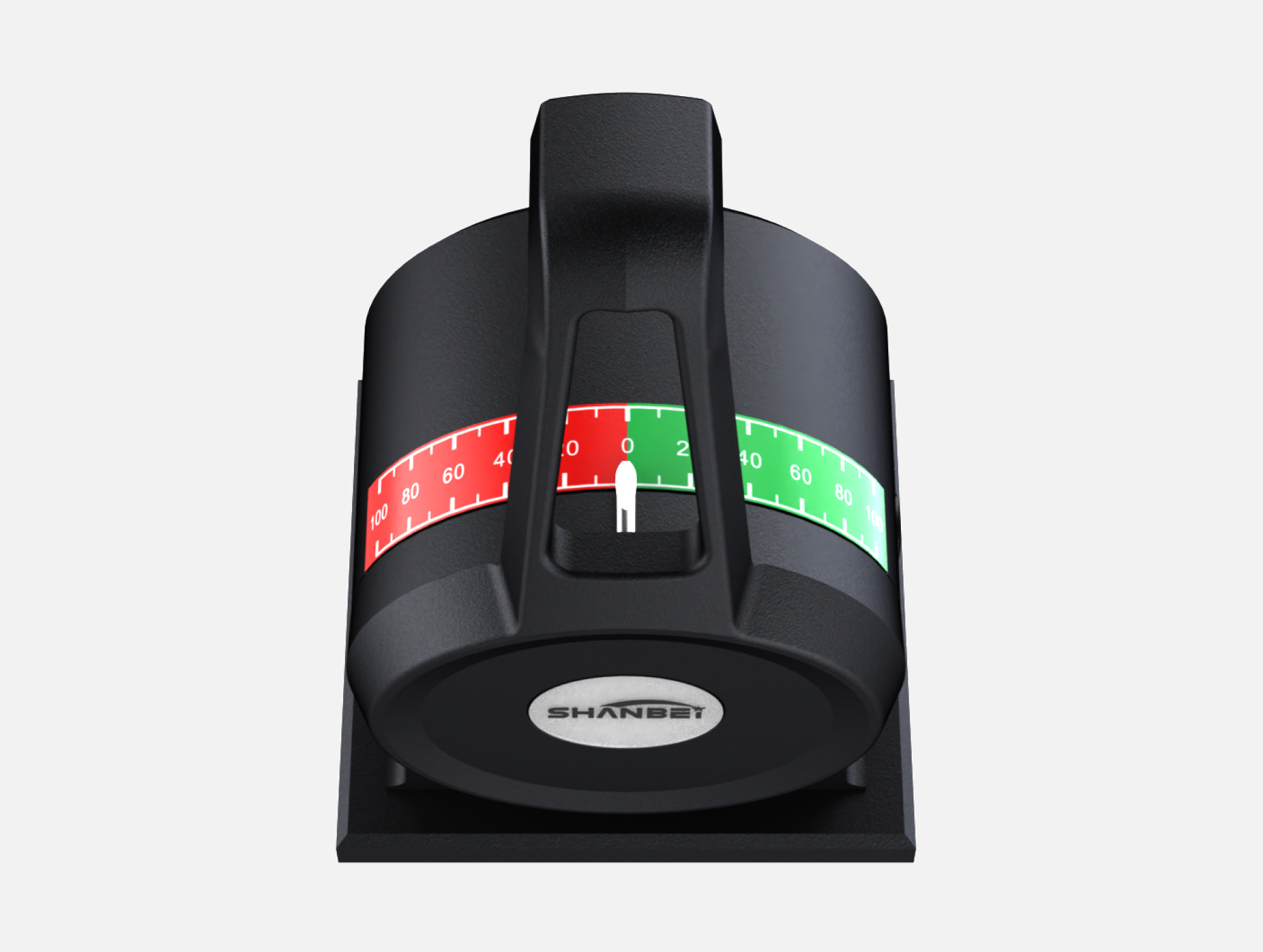

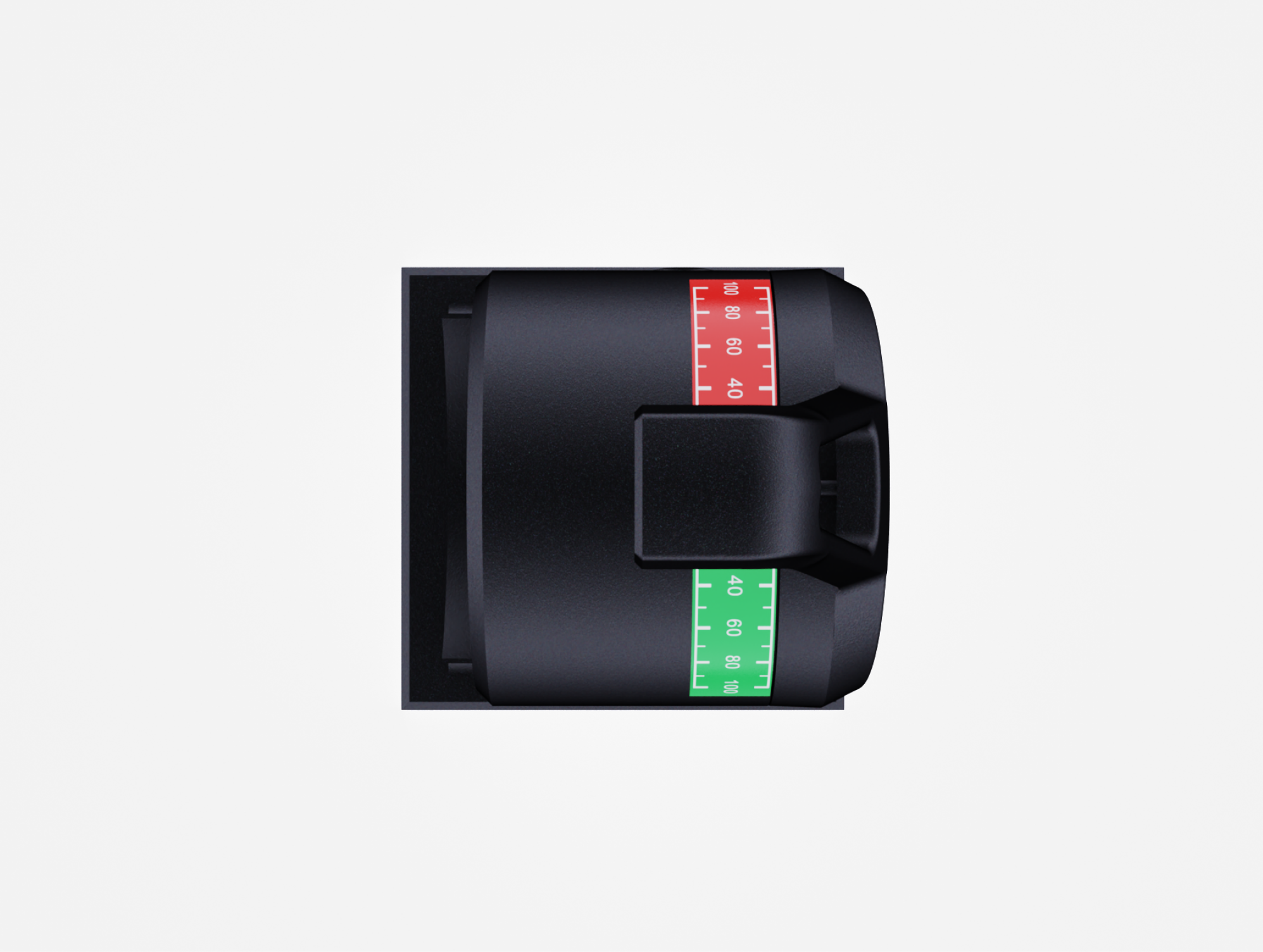

WLF-90C
Side propulsion control handle
WLF-90C side push control handle, used for ship single and double side push control.
Contact Us 0574-87186781
FEATURES
PARAMETER
-
Supply voltage18~32VDC
-
Weight1.5~4.0kg
-

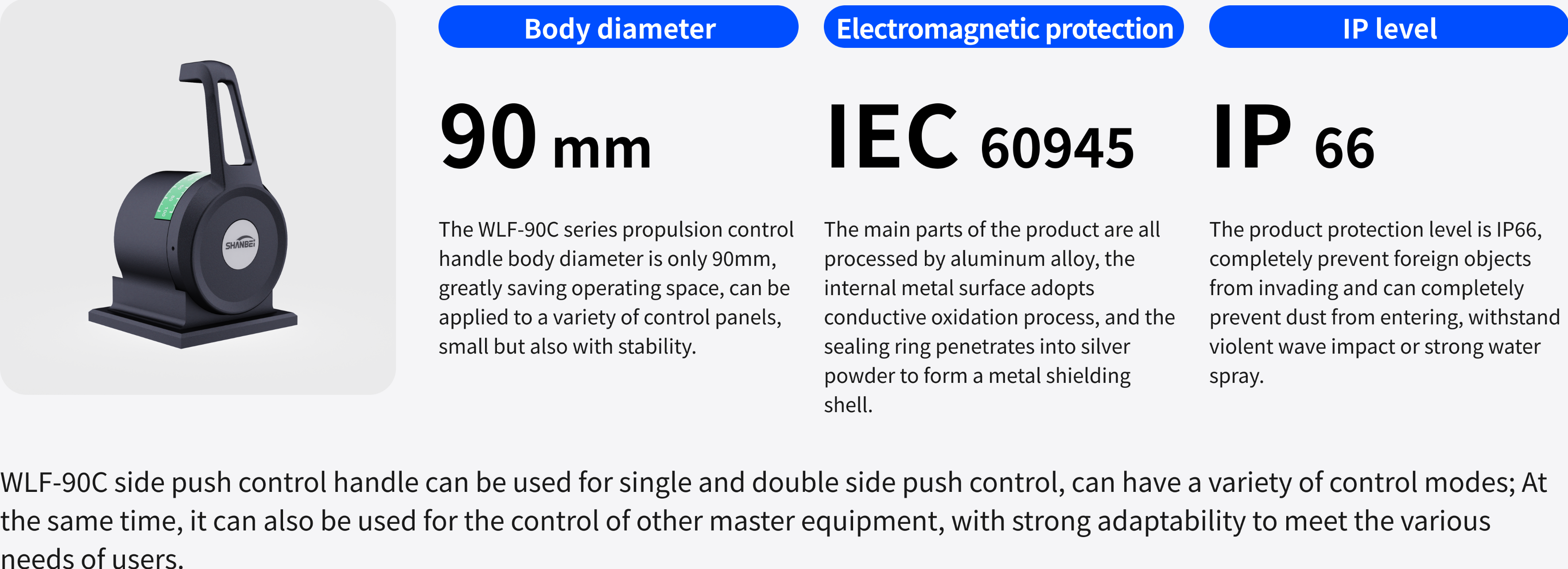

Environmental testingIACS E10、IEC60945
-
Operating temperature-15°~70°
-

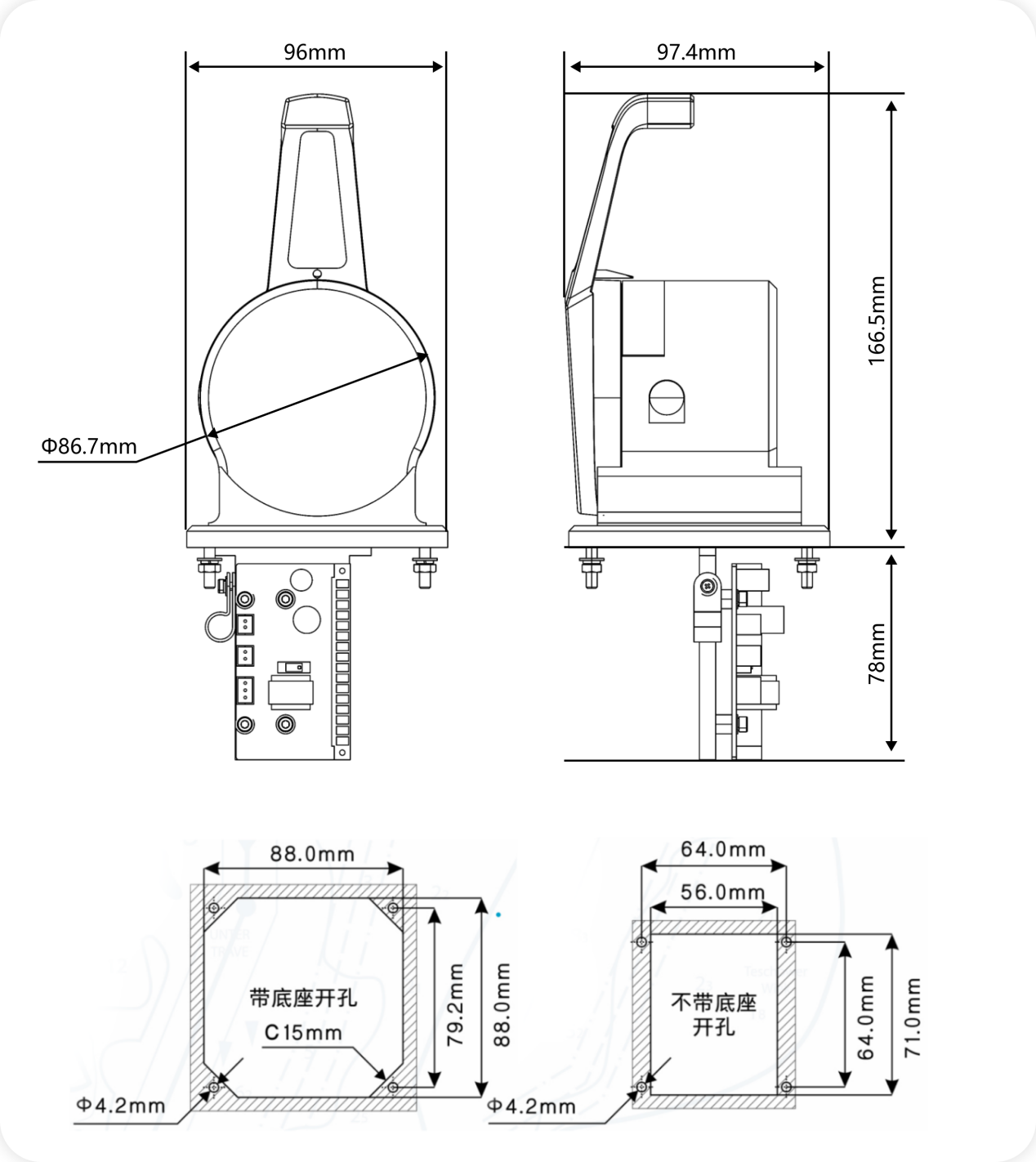

Install4xM5,Panel thickness<10mm
-
IP levelIP66
-

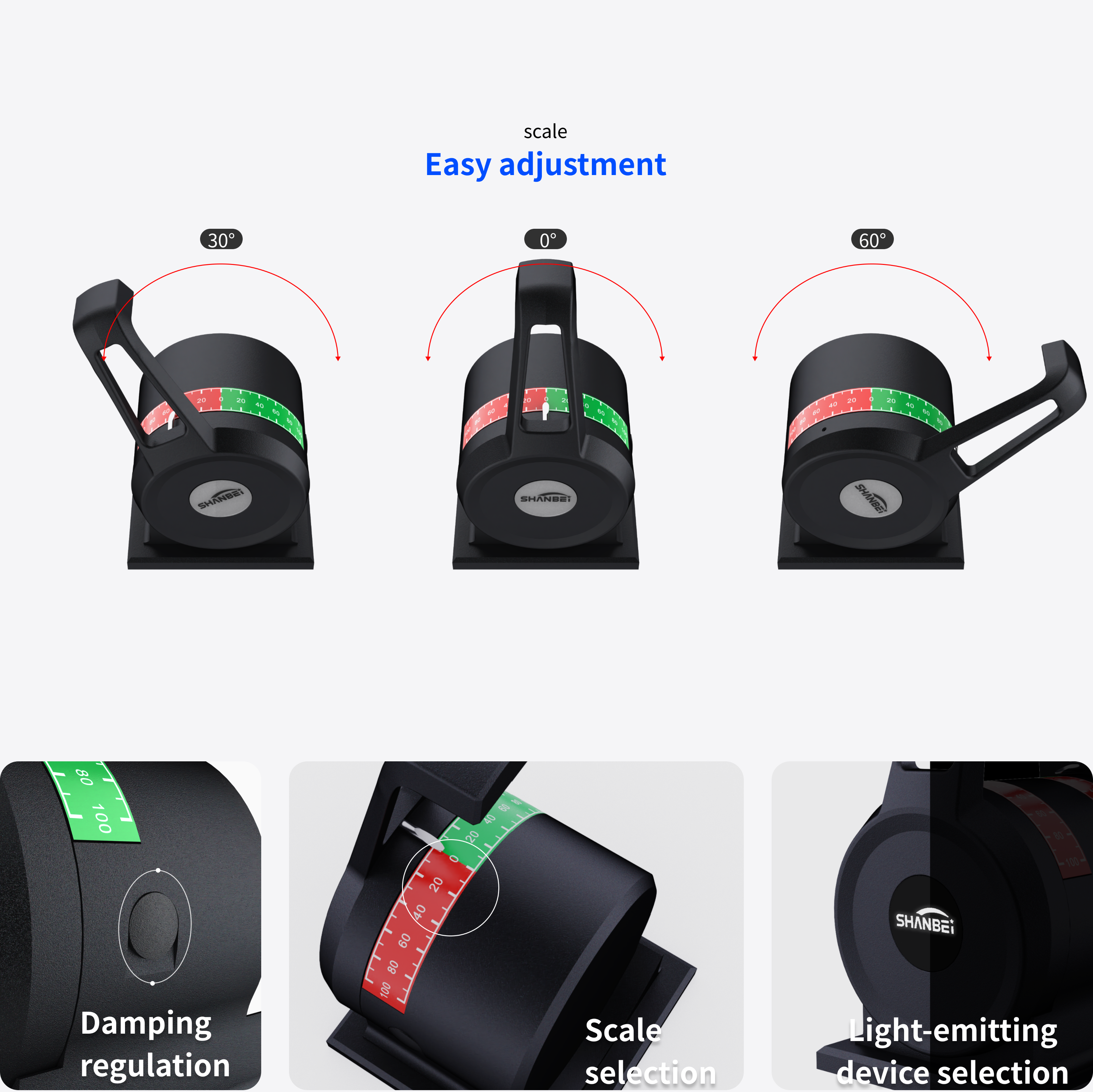

Operating range±60°
-
Vibration<1g
-
Wiring16 1/0 terminal block
CUSTOMIZATION
-
TypeLeftRightDouble push
-
Mounting panel96*96144*144None
-
Graduated filmPercentChineseEnglish
-
Potentiometer brandMade in ChinaEntrance
-
Potentiometer resistance5KΩOther
-
Grip typeAluminium alloyStainless steelPlastic
ACCESSORIES
Lighting element
Mounting panel
Driver circuit board
Graduated film
