Technical Parameter:
Mica wire application:
1. Power field: In the power system, mica wires are widely used as internal connecting wires, leads, and grinding wires for electrical equipment such as generators, transformers, and motors in high-temperature environments.
2. Metallurgical field: In the metallurgical industry, mica wires are mainly used for manufacturing internal circuits, leads, and wiring of high-temperature equipment such as heat treatment furnaces, electric arc furnaces, and induction furnaces.
3. Mechanical manufacturing field: In the field of mechanical manufacturing, mica wires are suitable for internal circuits, leads, and wiring of electrical heating systems, hot blast furnaces, high-temperature furnaces, and other equipment in high-temperature environments.
4. Other fields: In addition to the main application areas mentioned above, mica wires are also widely used in automotive manufacturing, aerospace, medical equipment, electronic instruments, fiber optic communication and other fields.

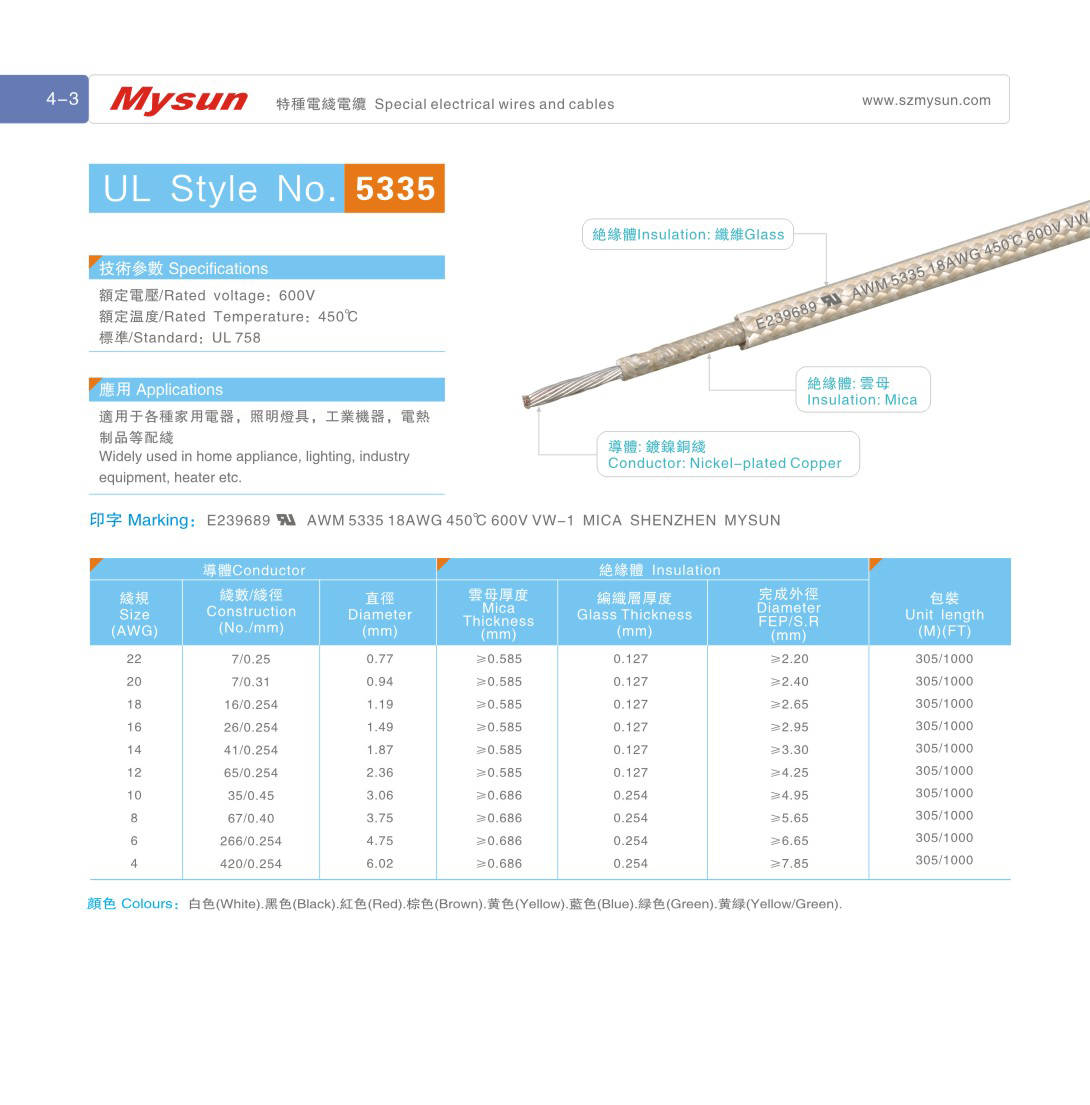

導體(Conductor) | 絕緣层 Insulation |
包裝 Unit Length (M)/(Ft) |
||||
線規 Size (AWG) |
線數/線徑 Construction (No./mm) |
直徑 Diameter (mm) |
雲母壁厚 Mica Thickness (mm) |
玻纖壁厚 Glass Thickness (mm) |
直徑 Diameter (mm) |
|
24 | 7/0.20 | 0.61 | ≥0.381 | 0.178 | ≥1.75 | 305/1000 |
22 | 7/0.25 | 0.77 | ≥1.90 | |||
20 | 7/0.31 | 0.94 | ≥2.10 | |||
18 | 16/0.254 | 1.19 | ≥2.30 | |||
16 | 26/0.254 | 1.49 | ≥2.60 | |||
14 | 41/0.254 | 1.87 | ≥3.00 | 200/656 | ||
12 | 65/0.254 | 2.36 | ≥0.508 | 0.381 | ≥4.15 | 100/328 |
10 | 35/0.45 | 3.06 | ≥4.85 | |||
8 | 67/0.40 | 3.75 | ≥5.55 | |||
6 | 266/0.254 | 4.75 | ≥6.55 | |||
4 | 420/0.254 | 6.02 | ≥7.80 |
For products in stock, we ship immediately. Otherwise, production typically takes 7-10 working days.
MOQs vary by product. For wires and cables ranging from 28AWG to 18AWG, it's 6100 meters. For 16AWG to 12AWG, it's 3050 meters. Beyond 10AWG, the MOQ is 1000 meters.
We offer transportation by sea, land, and air.
We accept various payment methods. Our recommendations are 100% T/T or PayPal before production, or a 70% T/T deposit with the remaining 30% balance due before shipment.
In case of any quality concerns, we will promptly resend fully-qualified products to you.
