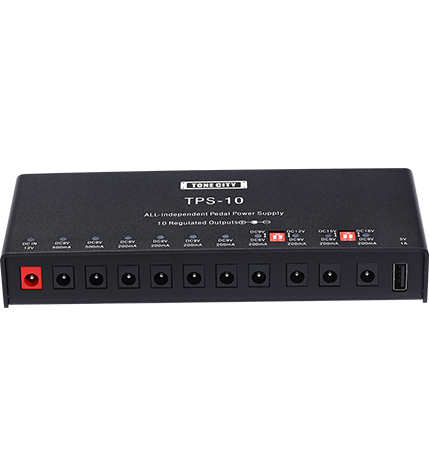

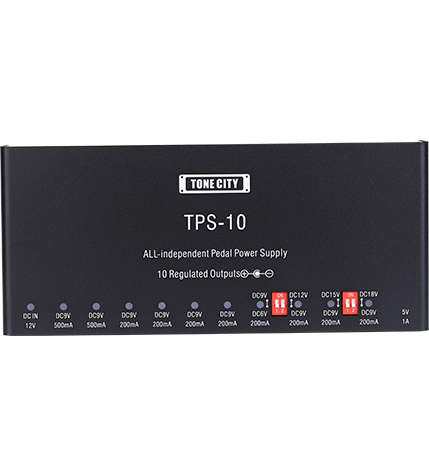

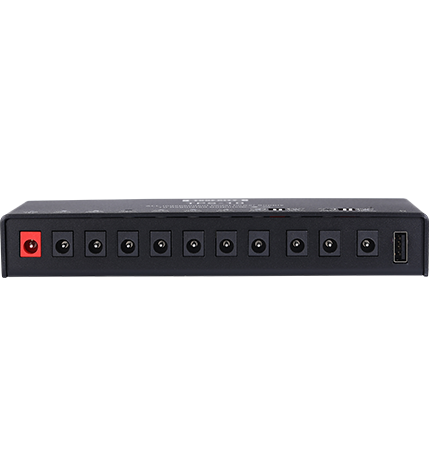

TPS-10 All Isolated Five Outputs Multi-output Pedal Power Supply

Specifications:

Input：DC12V/3A Adapter

Outputs：DC9V/500mA *2

DC9V/200mA *4

DC6/9V-200mA *1 (switch on to get DC 9V)

DC9/12V-200mA *1 (switch on to get DC 12V)

DC9/15V-200mA *1 (switch on to get DC 15V)

DC9/18V-200mA *1 (switch on to get DC 18V)

USB Charger 5V/1A *1

Dimensions: 18.3*8.1*2.3(cm)

Output Power：32W

Accuracy：3%

Body Weight: 348g

Product Description Gear Demos Related Gear Manual & Report Where to buy

1 short-circuit protection circuit design for each output. An IC with short-circuit protection function for each output. When any single or more output occurs short circuit, output will be quickly cut off, corresponding red LED light will be off to help users quickly find out fault points. When the fault is eliminated, the red LED light will be on. Along with this process, the other output will not be affected. These ensure the safety of the music equipment and the stability of the playing.
