DR Series

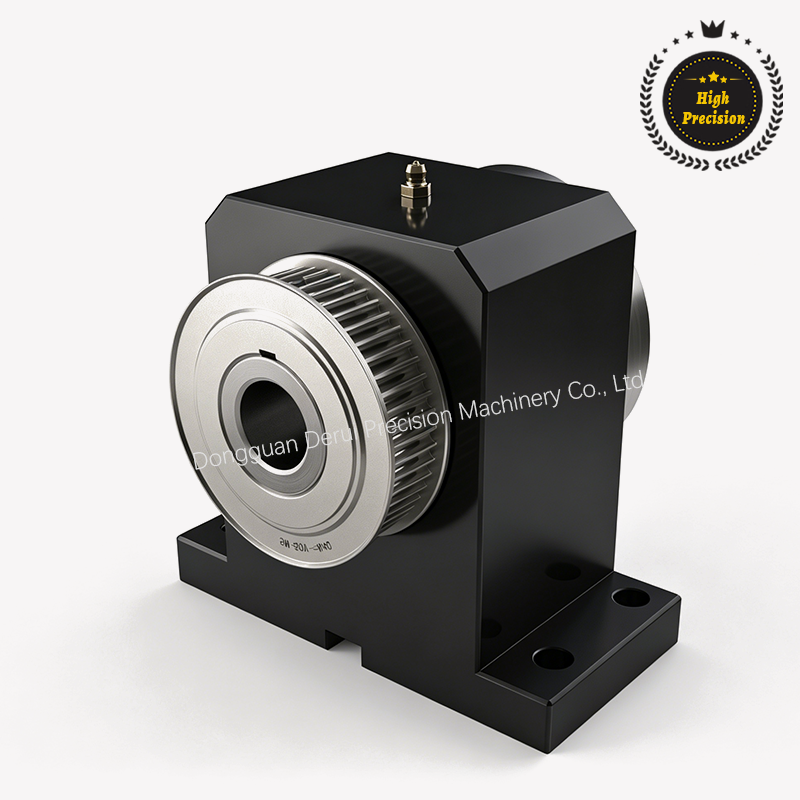

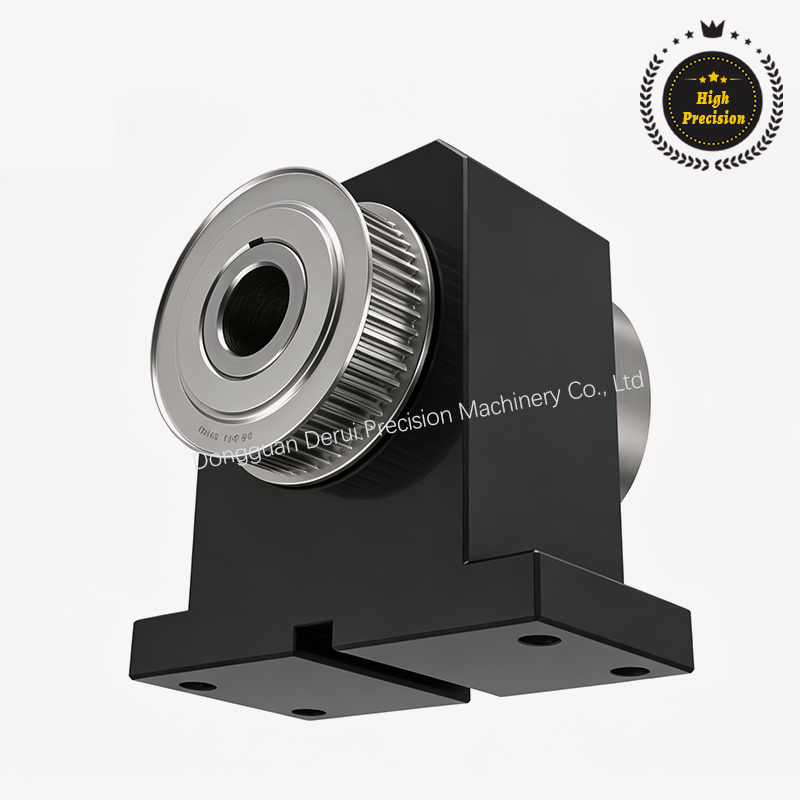

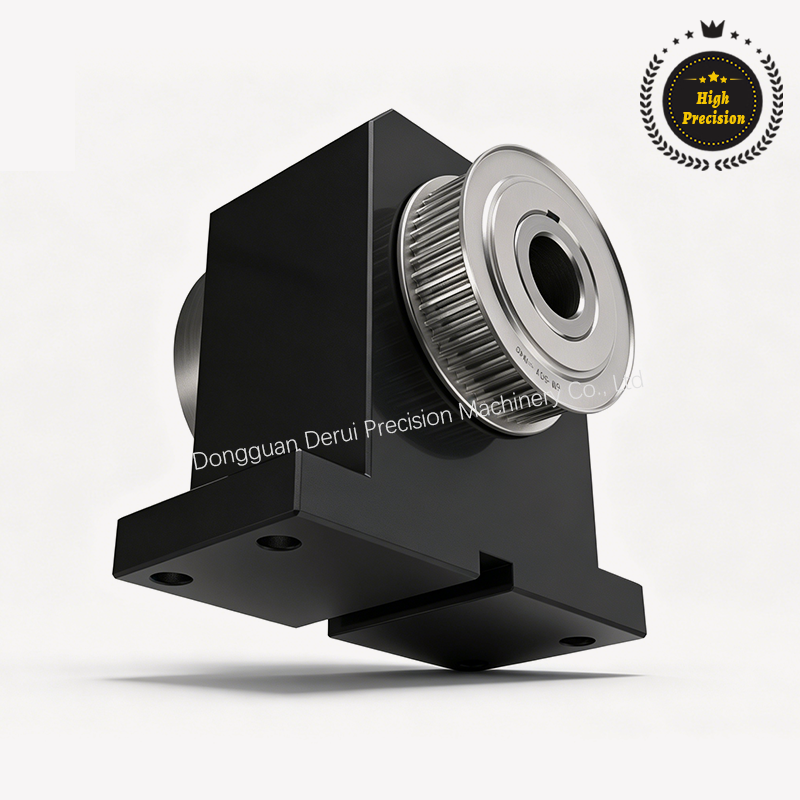

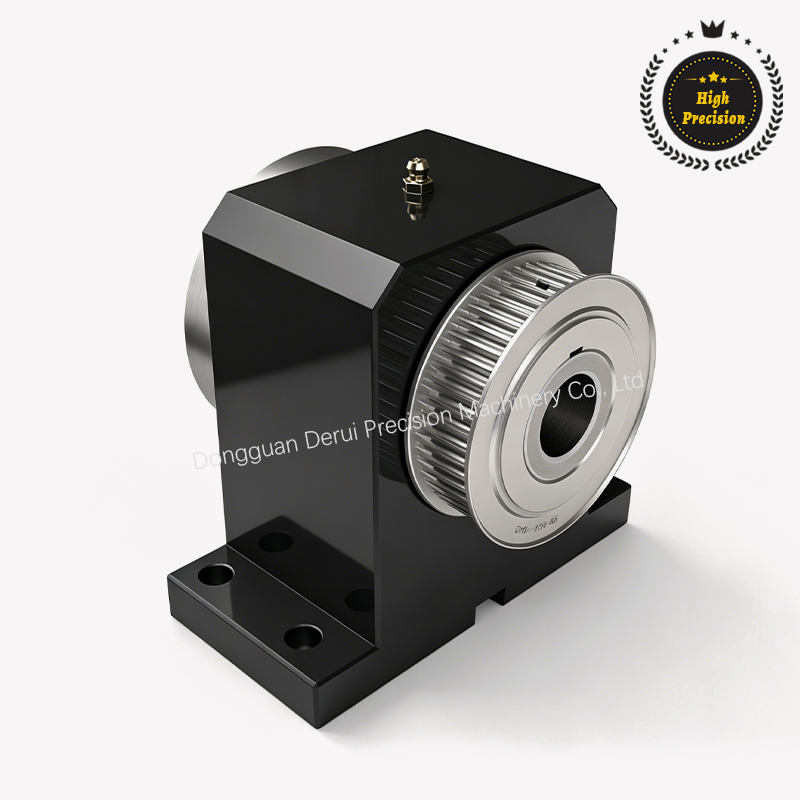

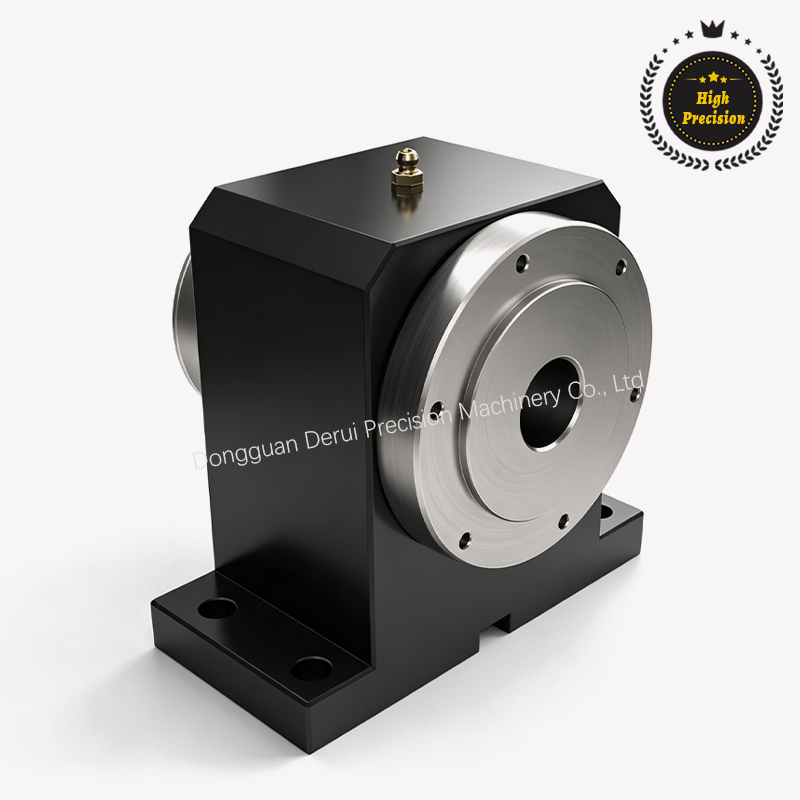

Rotary Spindle Integration (Horizontal)

High Precision
$ 537 USDMotor price not included

Model

    No data available

  • Spindle rotational accuracy: 0.005 mm

  • Features a direct-drive transmission system utilizing

    synchronous pulleys, gears, and a servo motor

  • Compatible with various chucks

    making it suitable for application across

    a wide range of high-precision machining fields

Get Your Solution

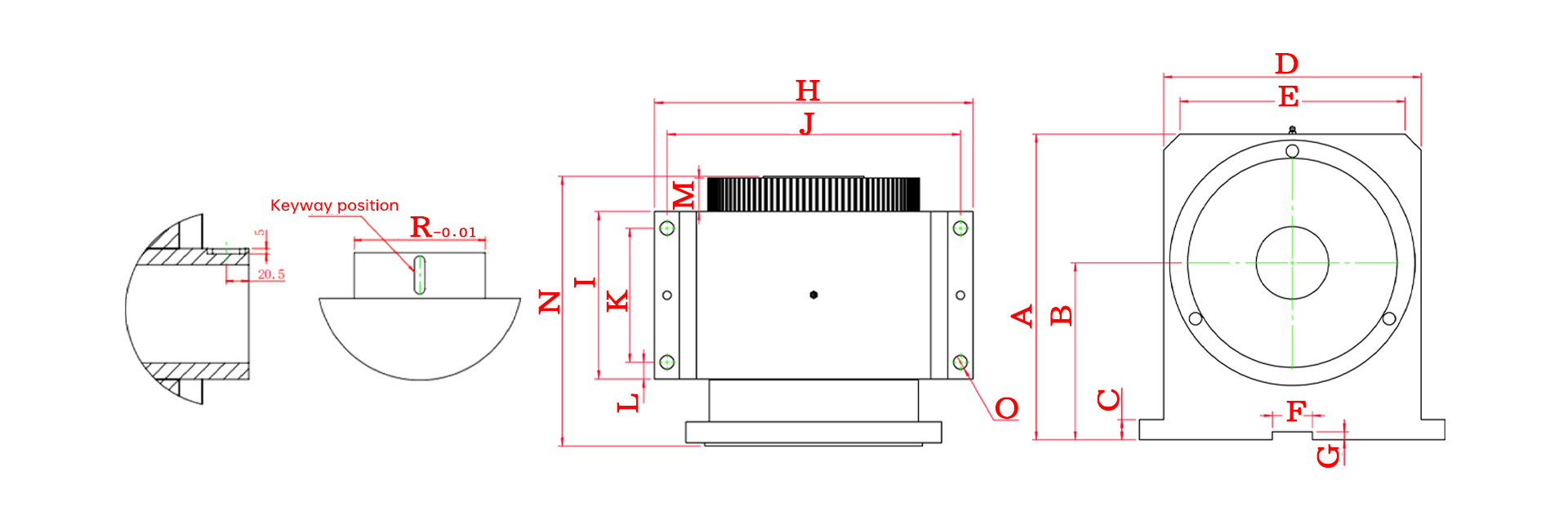

2D Drawing平面图.png

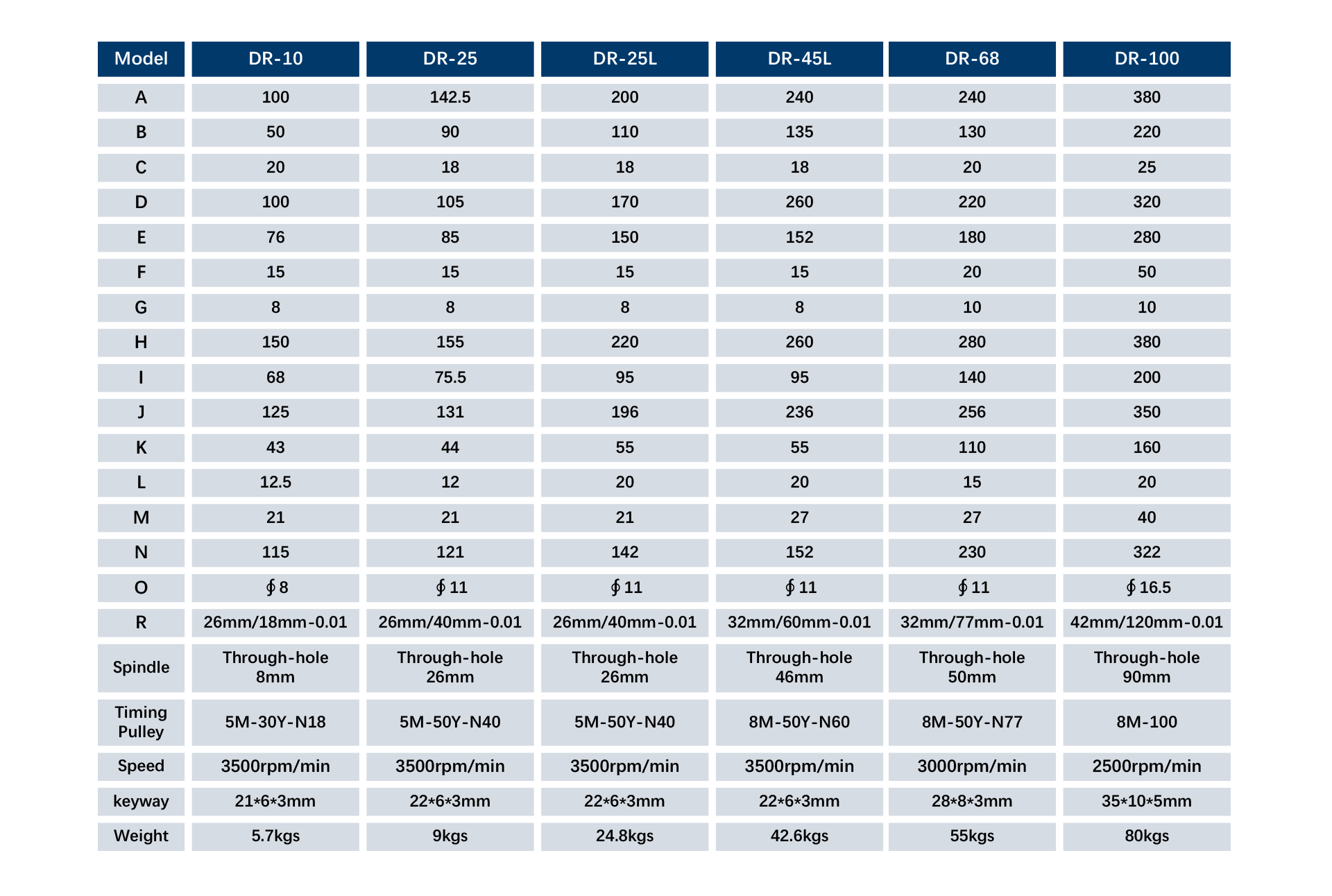

Technical Specifications (mm)


Document DownloadSTEP Format

Document DownloadPDF Format

1/5

How to choose the right chuck model for your machine?

Please fill in the following.

  • Rotary (Rotary Type):
    The chuck rotates together with the machine tool spindle,
    making it suitable for workpieces that require continuous rotary machining.
  • Fixed (Fixed Type):
    The chuck is mounted on the machine bed and does not rotate.
    It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
