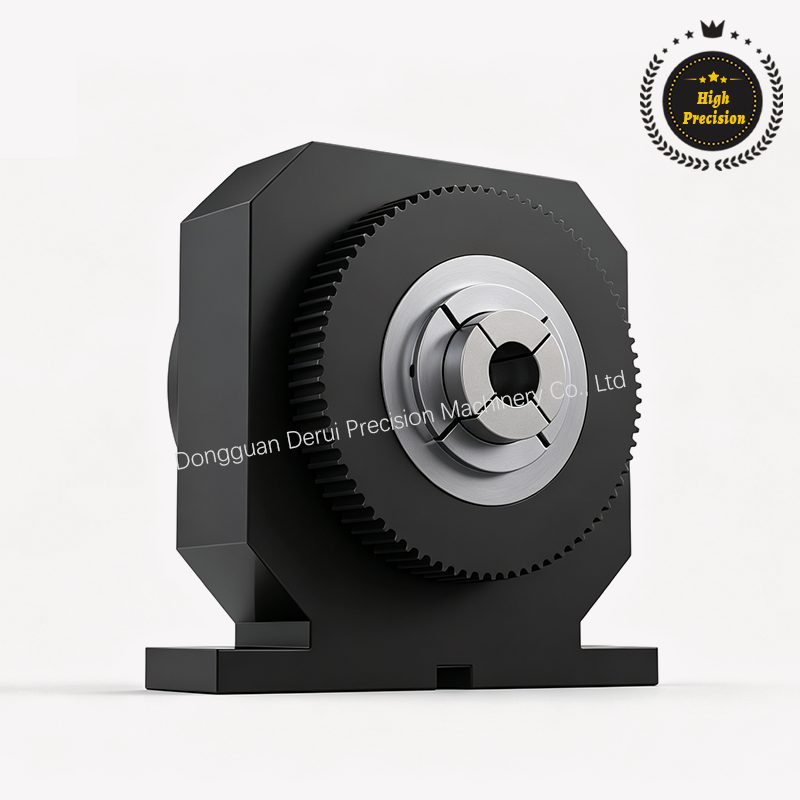

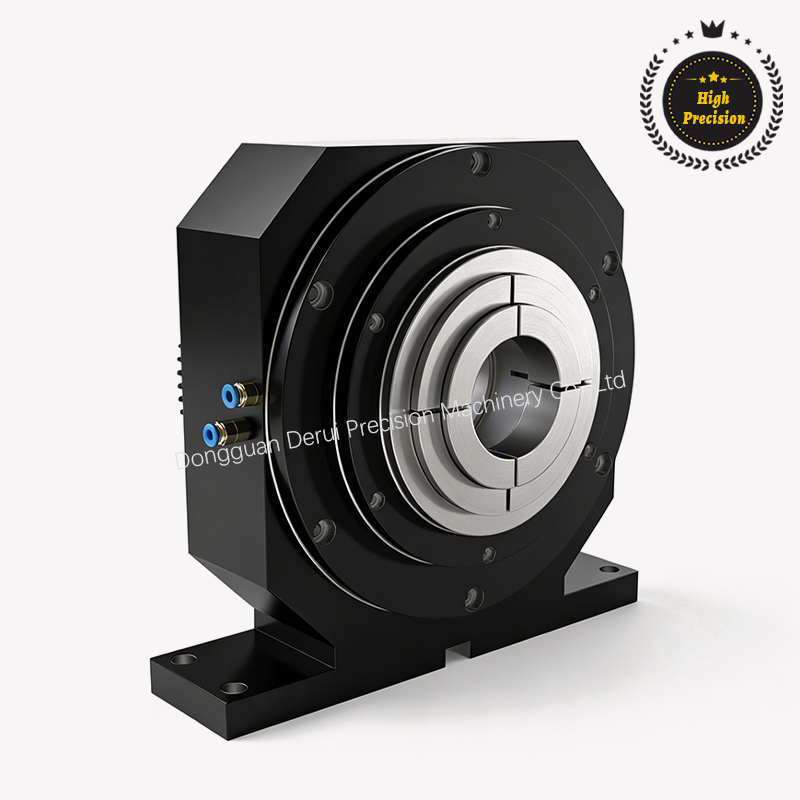

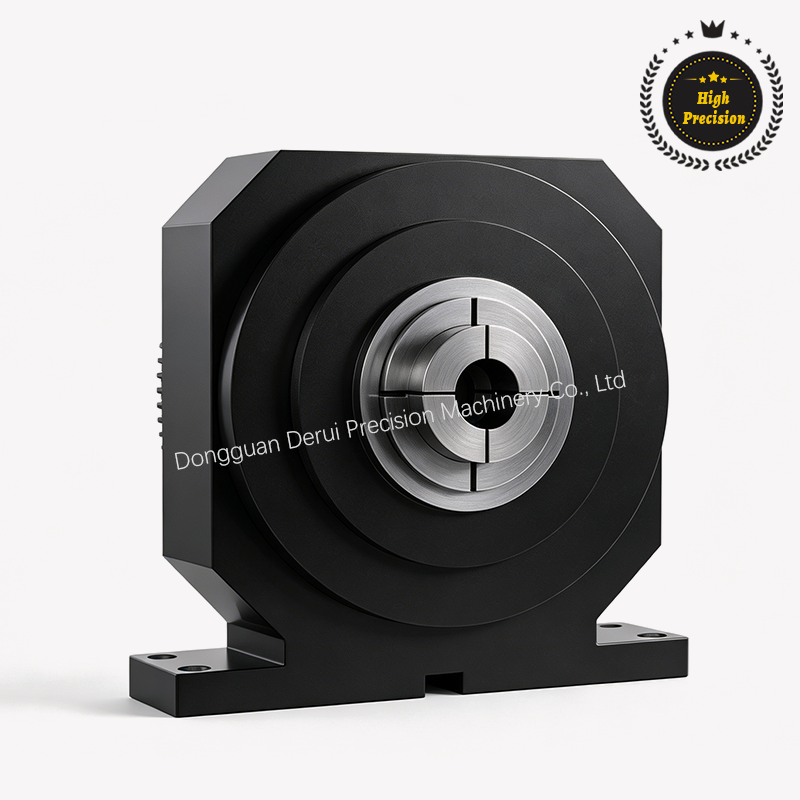

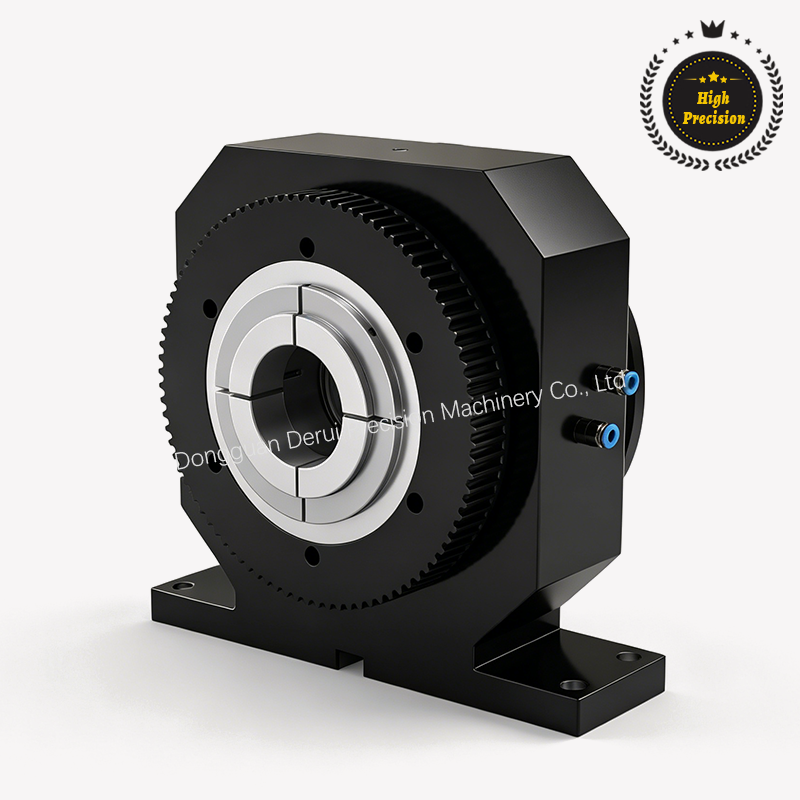

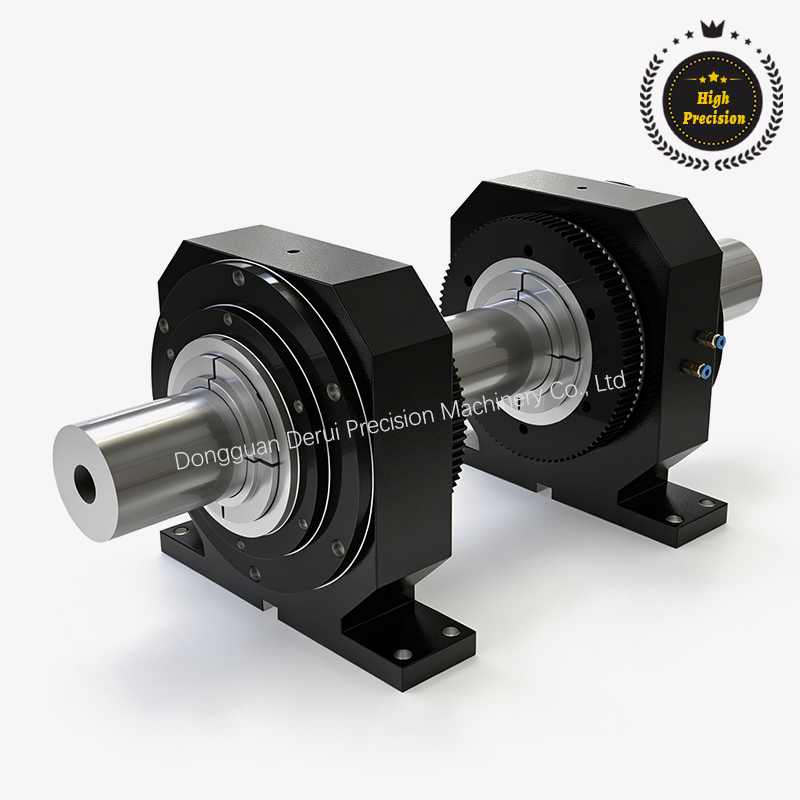

DRC Series

Spindle Housing (Double Collet)

High Precision
$ 3500 USDMotor price not included

Model

    No data available

  • Adops 5C/ 16C collet

  • 5C Collet max.capacity 26mm

  • 16C Collet max.capacity 40mm

  • Pull back design. High accuracy

Get Your Solution

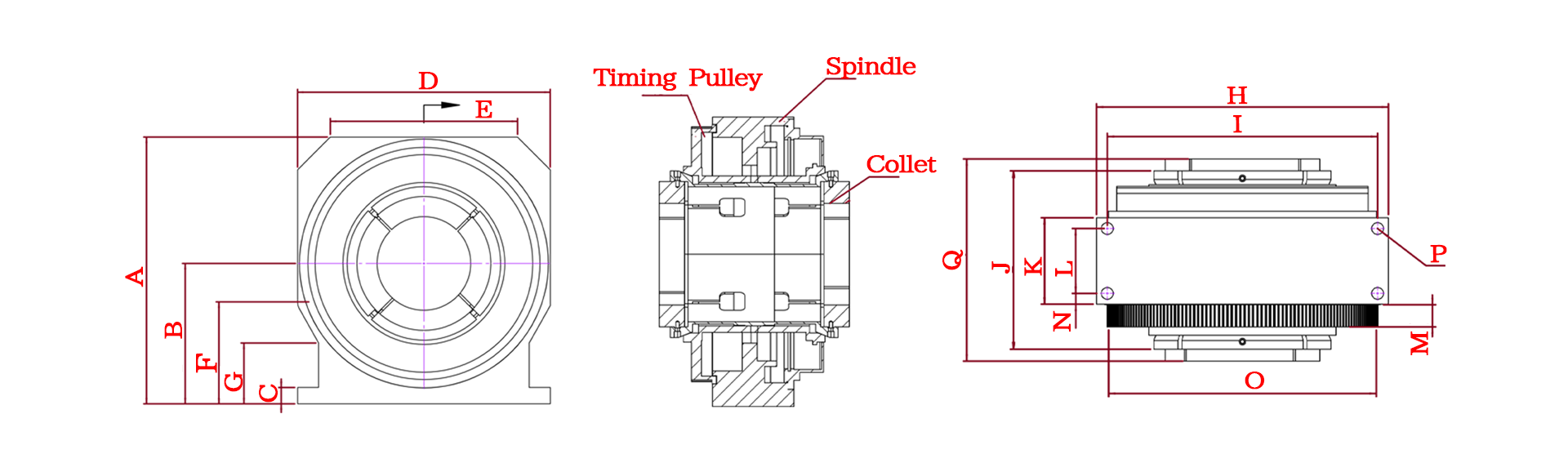

2D Drawing

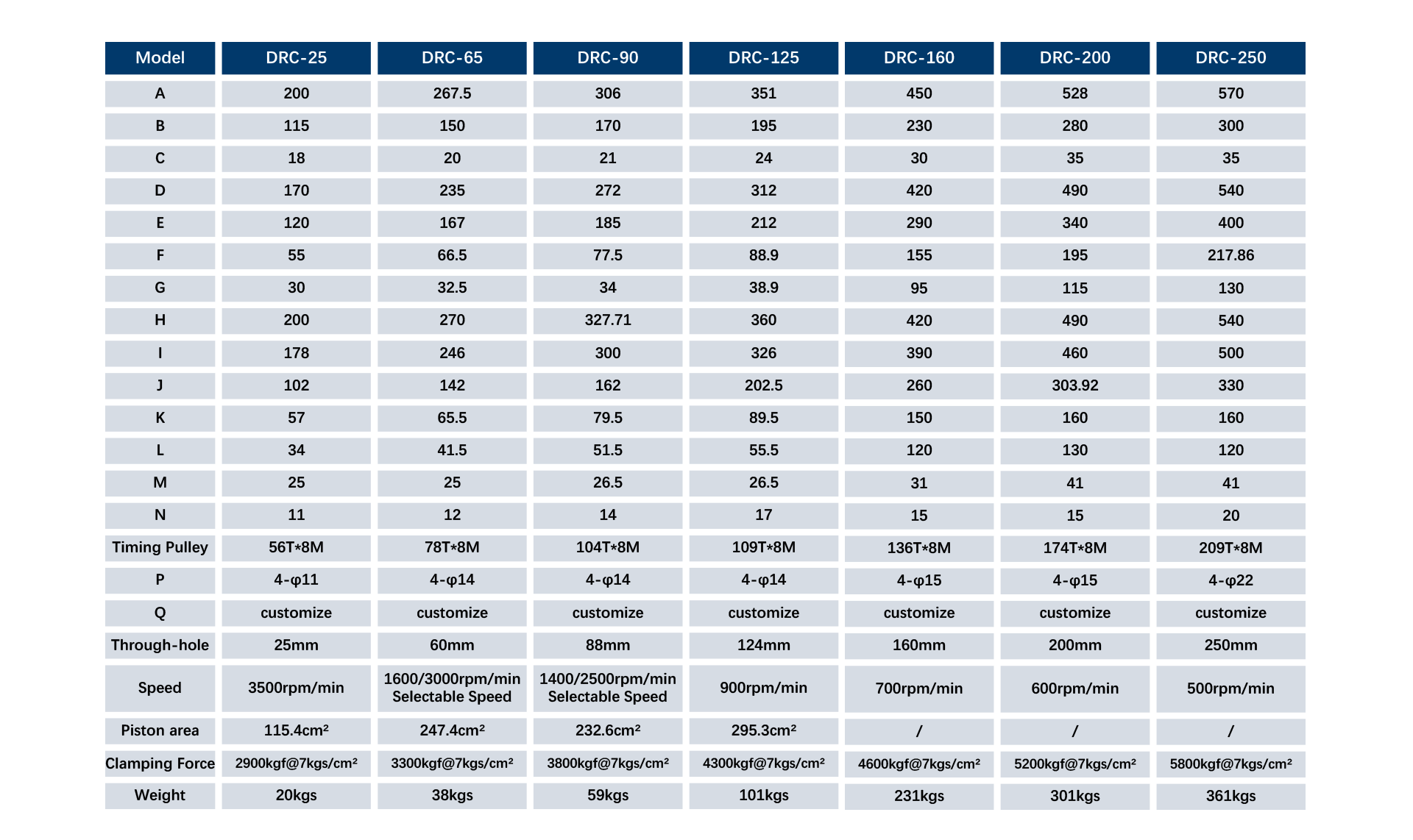

Technical Specifications (mm)参数.png

Document DownloadSTEP Format

Document DownloadPDF Format

1/5

How to choose the right chuck model for your machine?

Please fill in the following.

  • Rotary (Rotary Type):
    The chuck rotates together with the machine tool spindle,
    making it suitable for workpieces that require continuous rotary machining.
  • Fixed (Fixed Type):
    The chuck is mounted on the machine bed and does not rotate.
    It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
