Home > All > GA Plus DR Series
Gallery Video

  • Worldwide Delivery

  • Hassle-Free Warranty

  • Custom Made

  • Lifetime Customer Support

Worldwide Delivery

Expedited shipping is available for urgent orders.
All orders are securely packaged for safe delivery.
For shipping times, customs details and tracking, contact our sales team or view our full Shipping Policy.

Hassle-Free Warranty

If the product has quality problems within one year, DGDR will provide direct, hassle-free warranty service. For more information, please refer to: Warranty Policy

Custom Made

DGDR Precision Machinery provides fully customized precision machinery solutions. We tailor products to your exact specifications, materials, and design needs. Reach out to our team for your custom project.

Lifetime Customer Support

We'll always be there for you. If you have any questions or concerns, feel free to contact us at

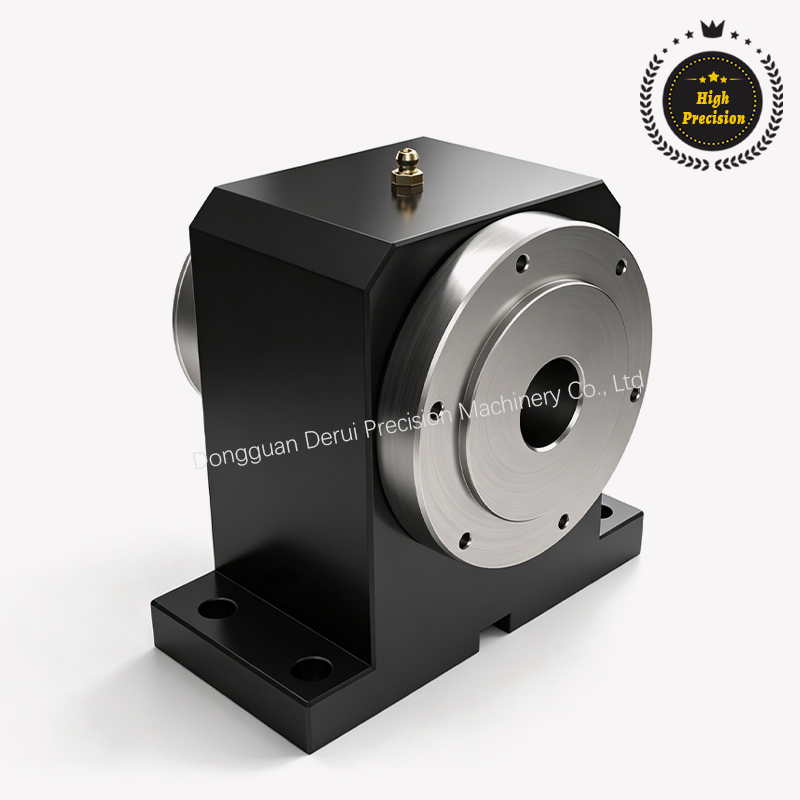

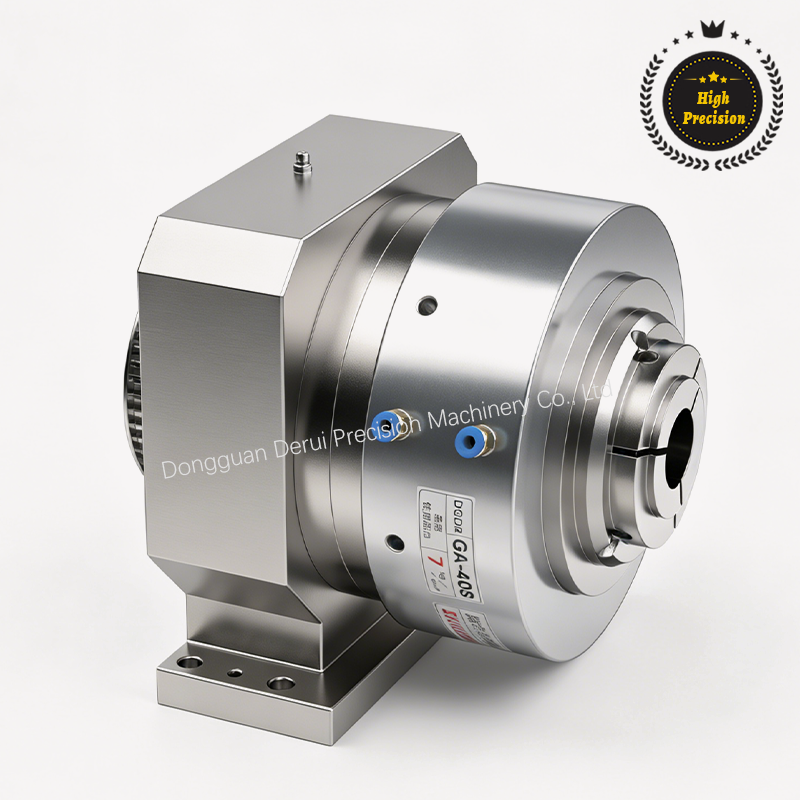

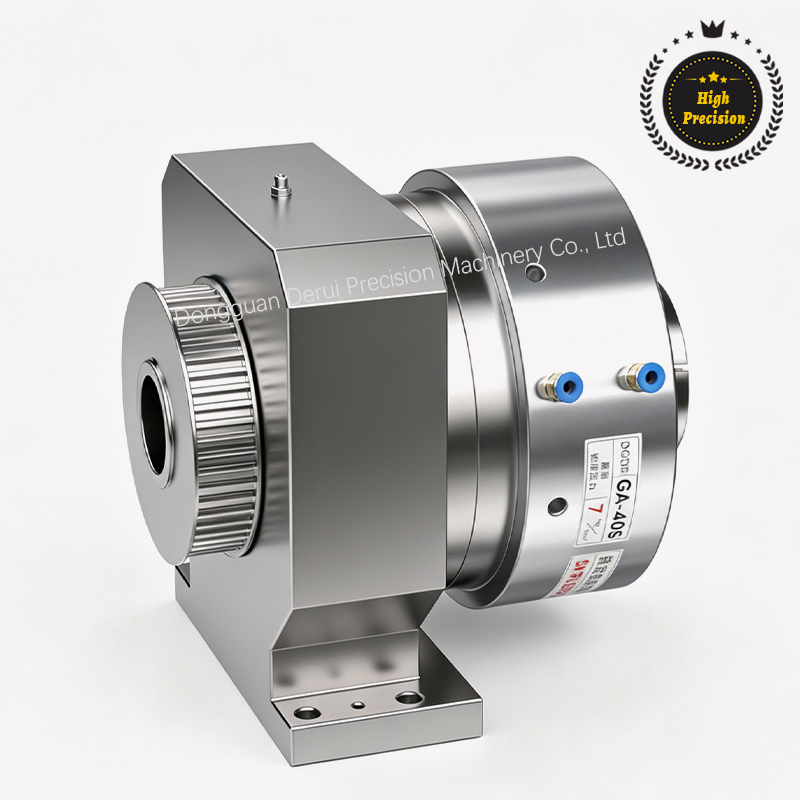

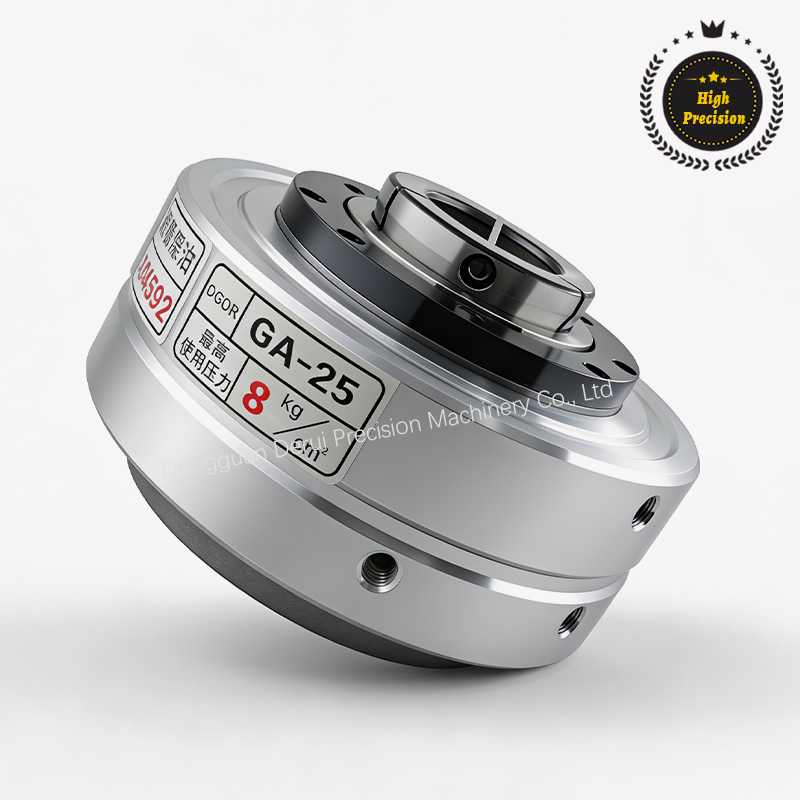

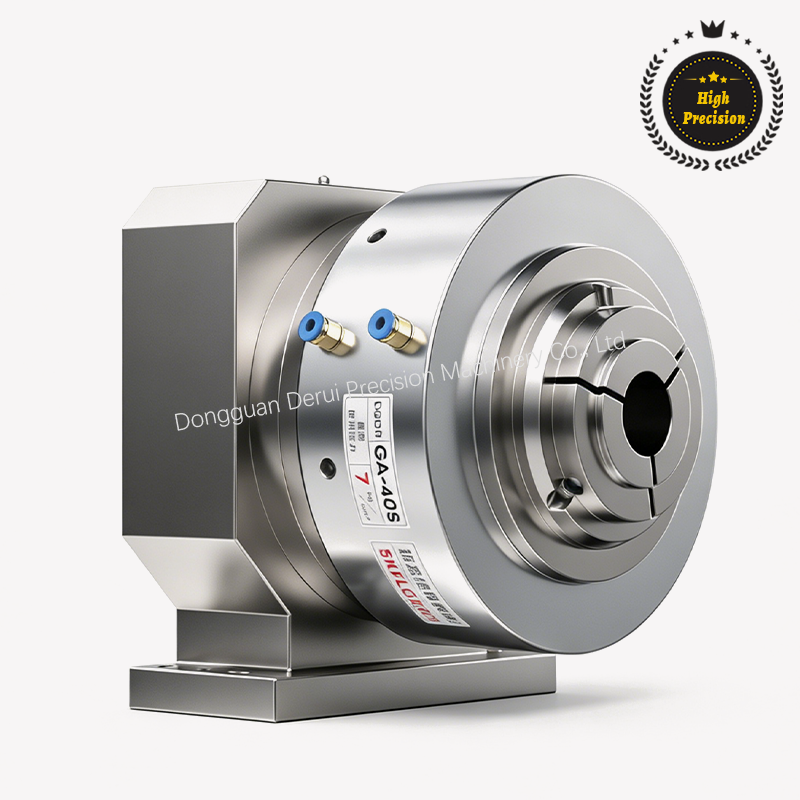

GA Plus DR Series

High-Precision Rotary Spindle

High Precision
$ 1383 USDMotor price not included

Model

    No data available

  • No additional cylinders required

  • Enables rapid setup of workholding systems

  • Central through-hole, supports rear feeding

  • Clamping repeatability within 0.05 mm

  • Suitable for retrofitting traditional

  • lathes for automation or semi-automation

  • High Flexibility, Rapid Auxiliary Jaw Replacement

  • Cutting fluid must not be directed at the chuck

Get Your Solution

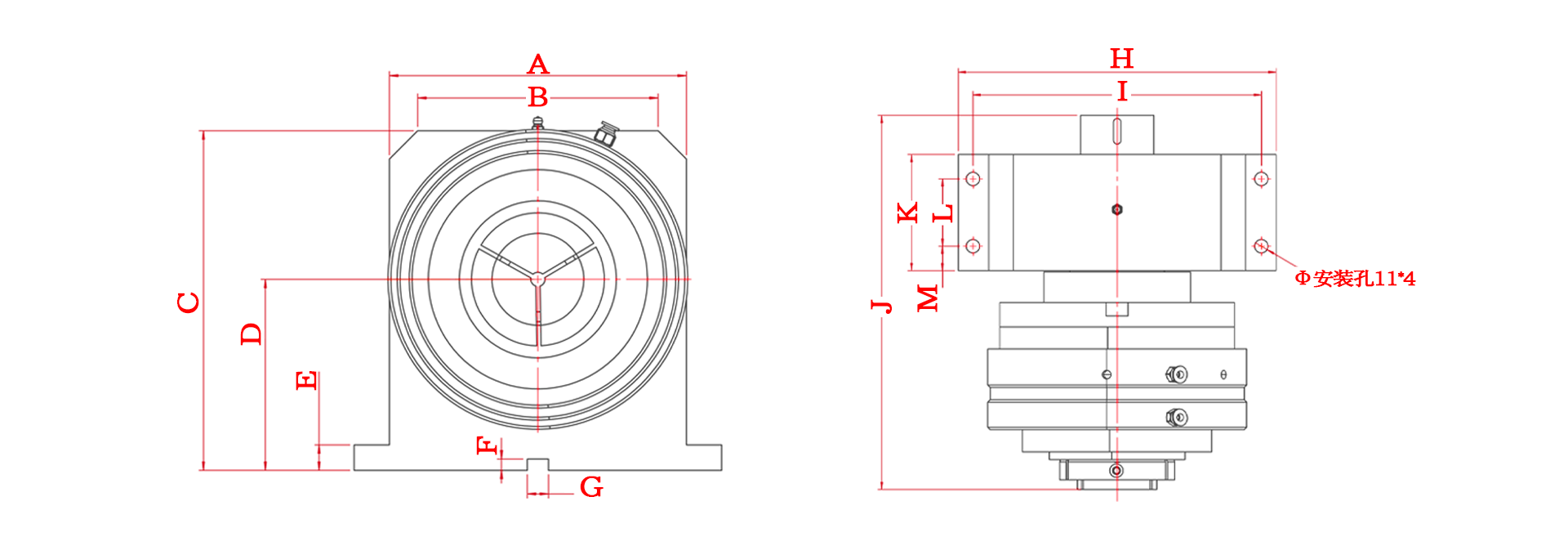

2D Drawing平面图.png

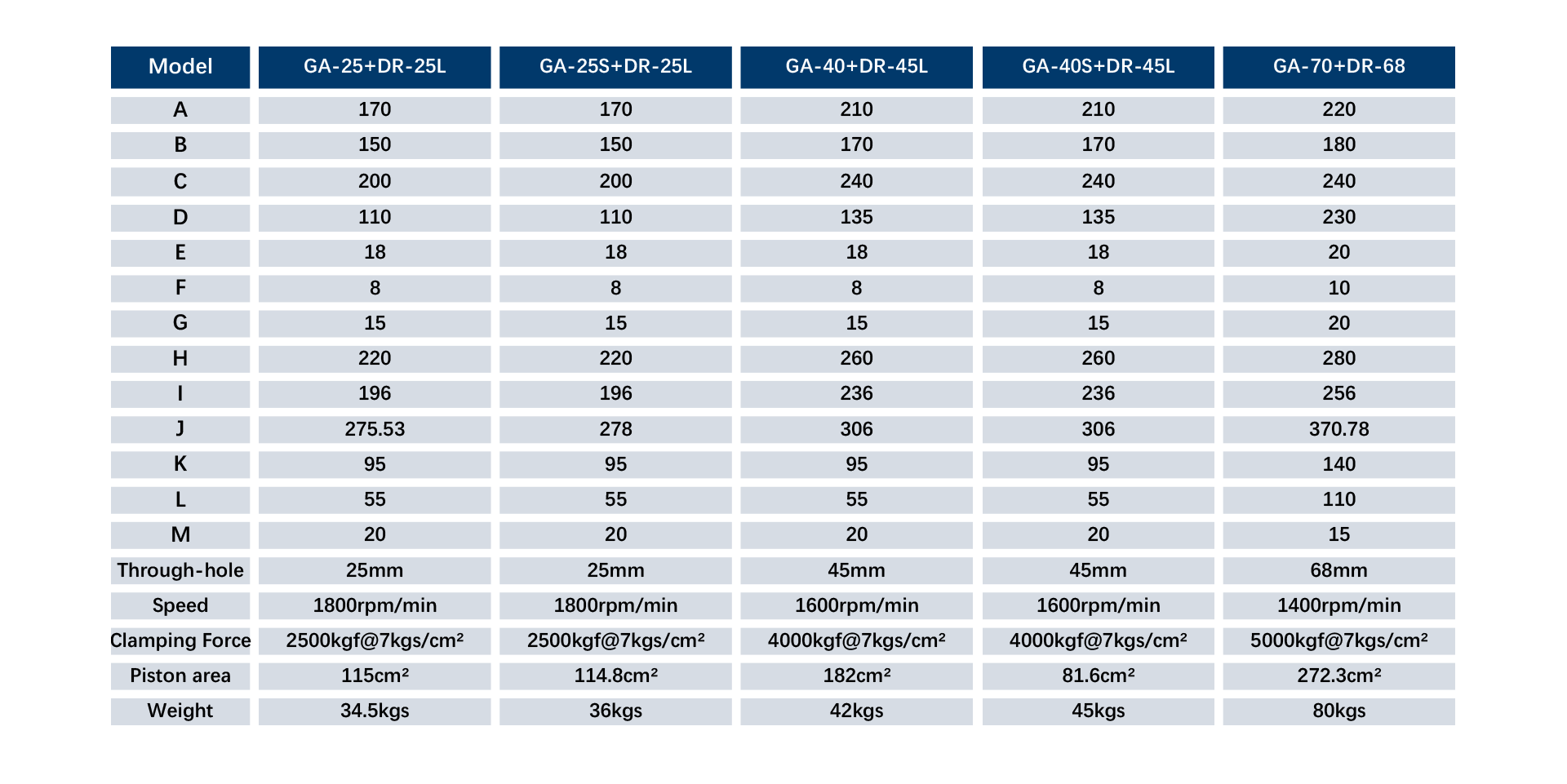

Technical Specifications (mm)参数.png

Document DownloadSTEP Format

Document DownloadPDF Format

1/5

How to choose the right chuck model for your machine?

Please fill in the following.

  • Rotary (Rotary Type):
    The chuck rotates together with the machine tool spindle,
    making it suitable for workpieces that require continuous rotary machining.
  • Fixed (Fixed Type):
    The chuck is mounted on the machine bed and does not rotate.
    It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
