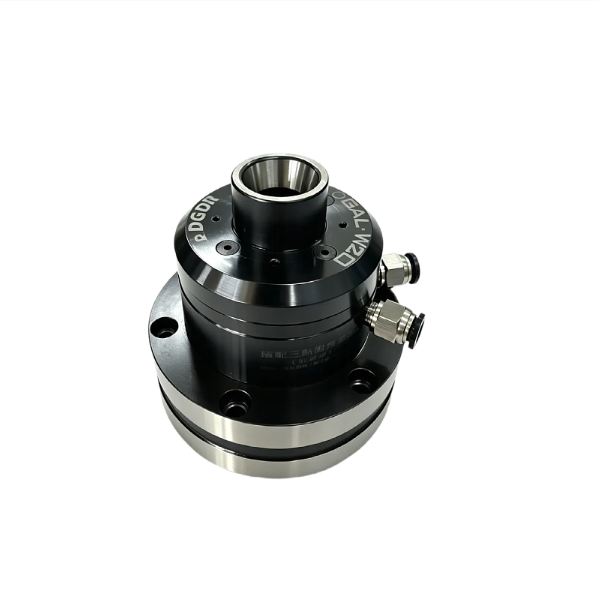

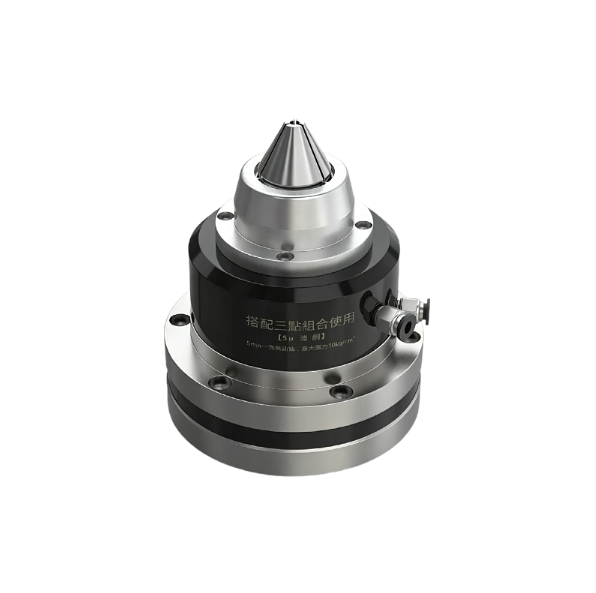

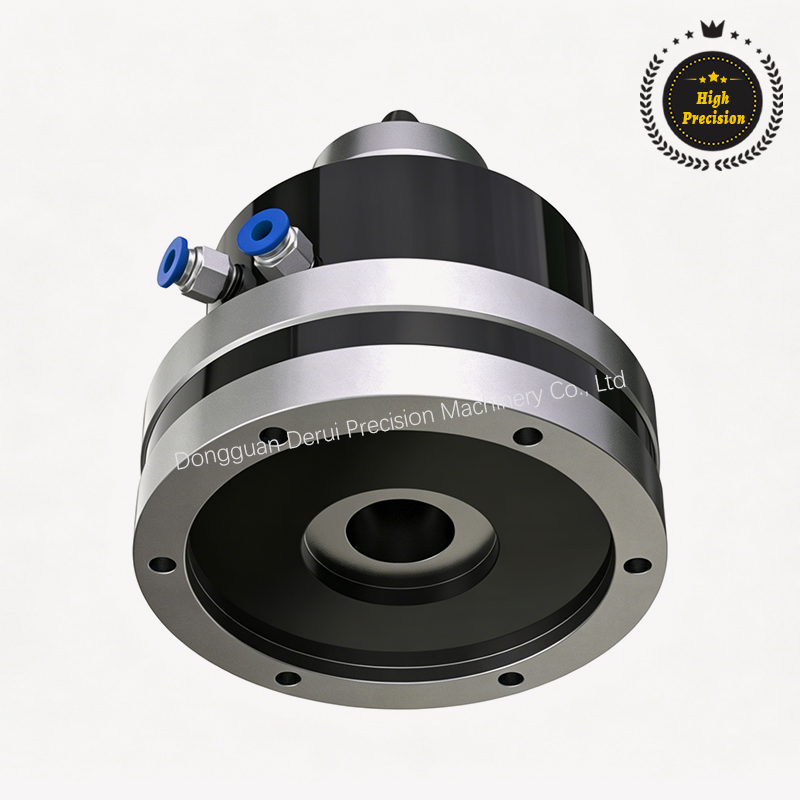

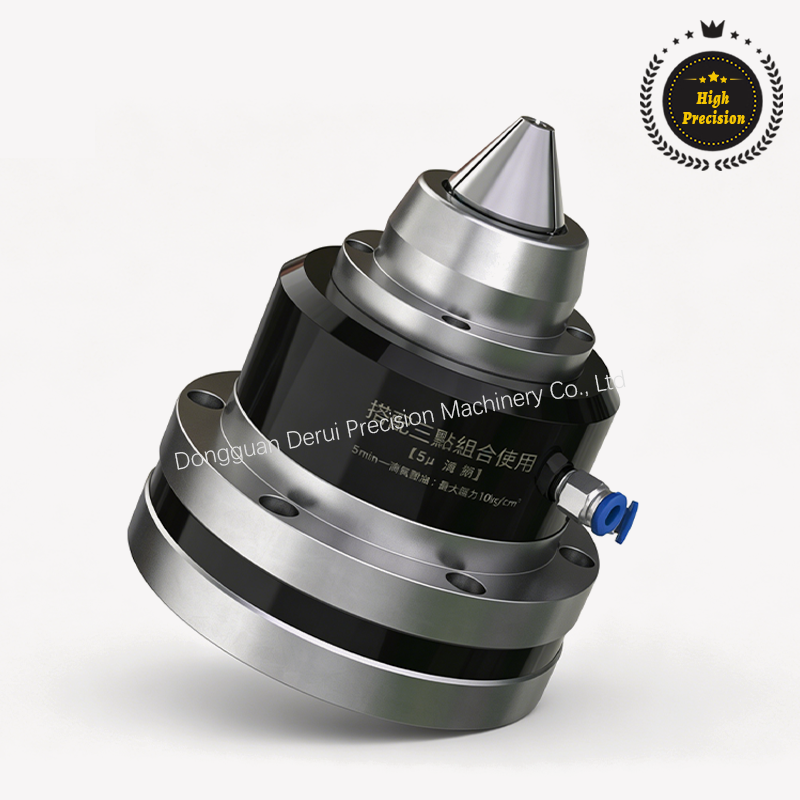

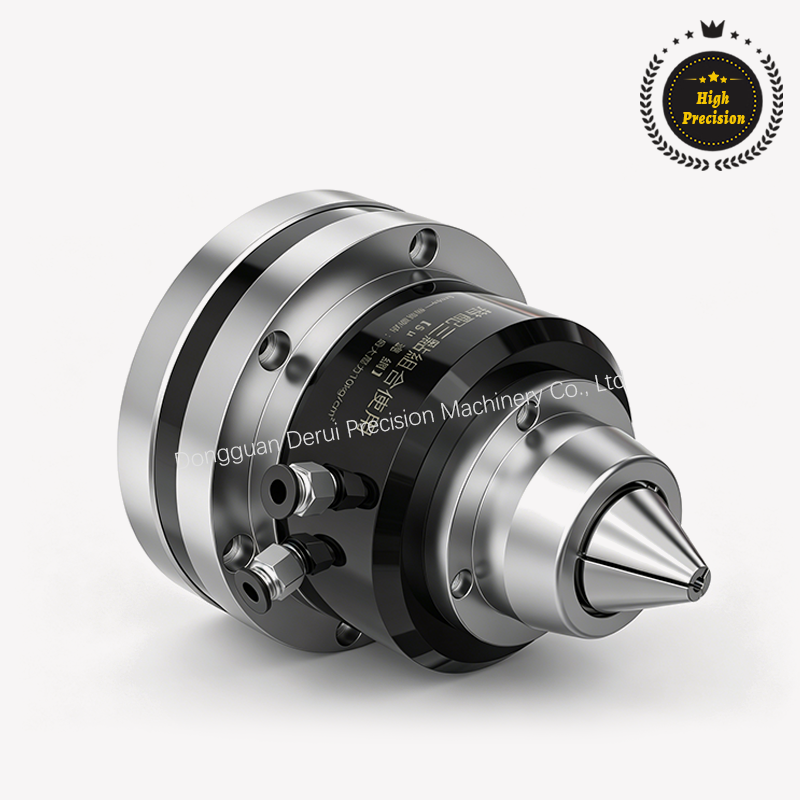

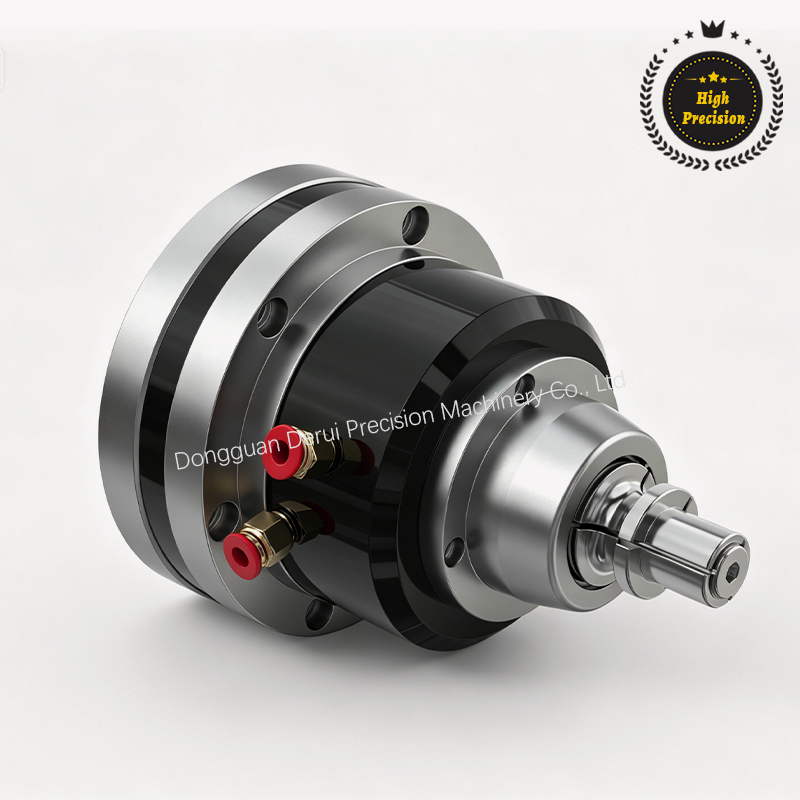

GAL Series

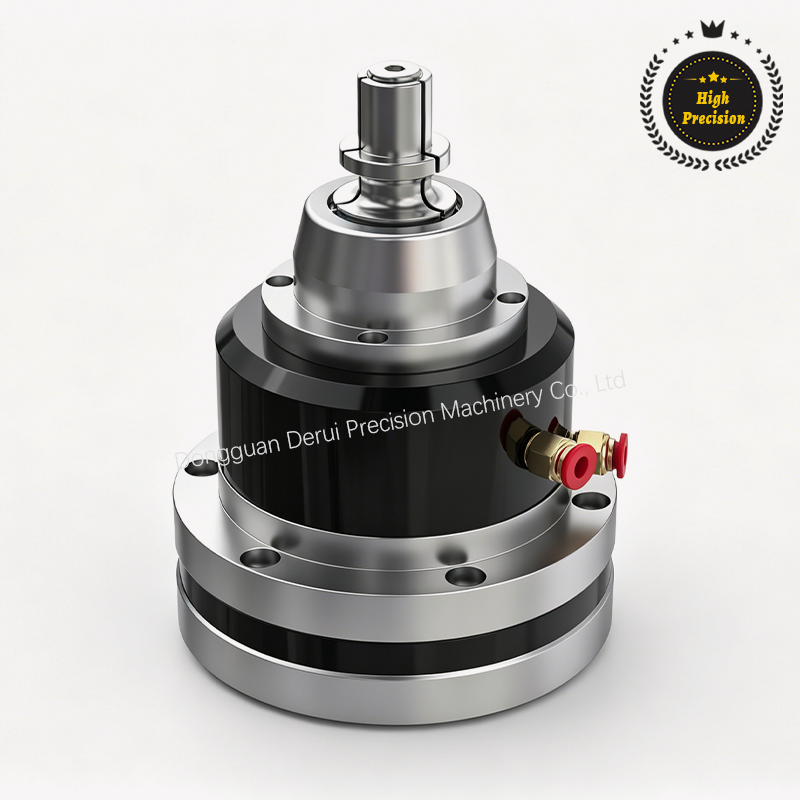

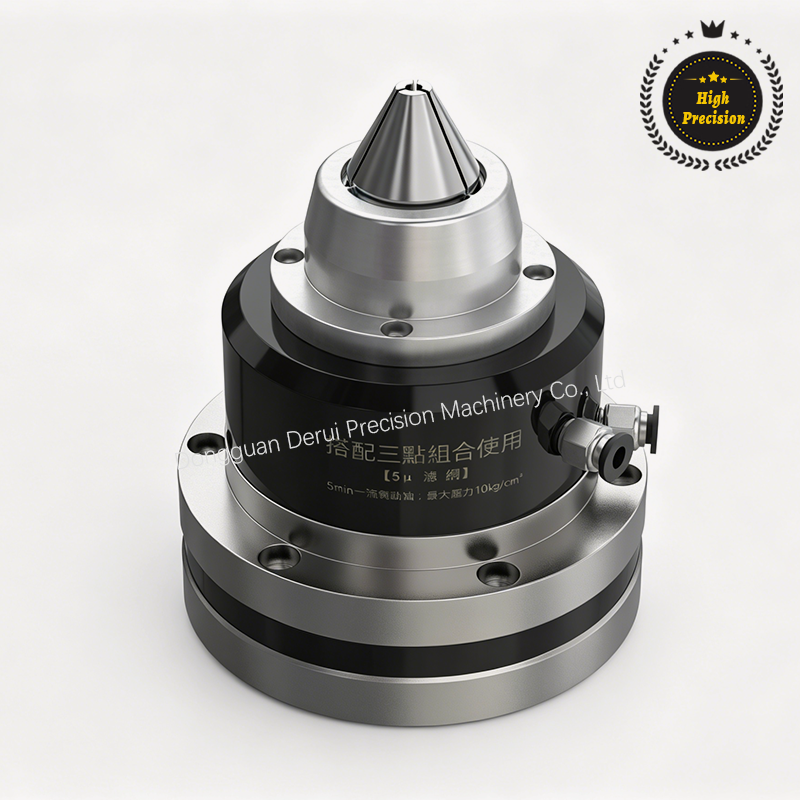

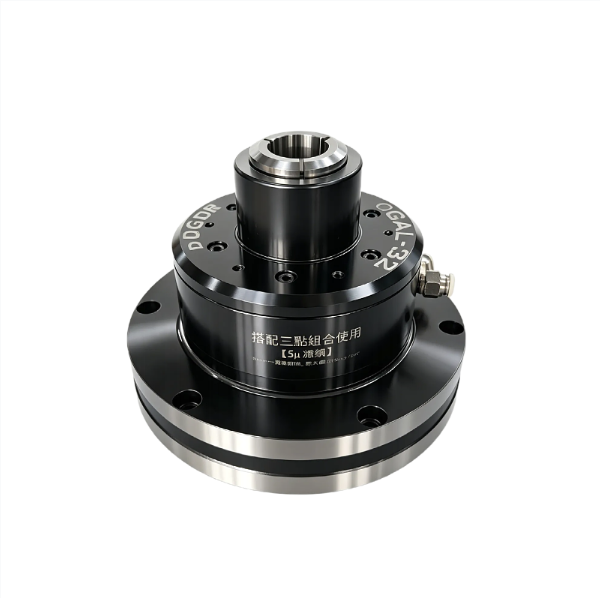

High-Precision Rotary Chuck
High Precision
$ 922 USDMotor price not included

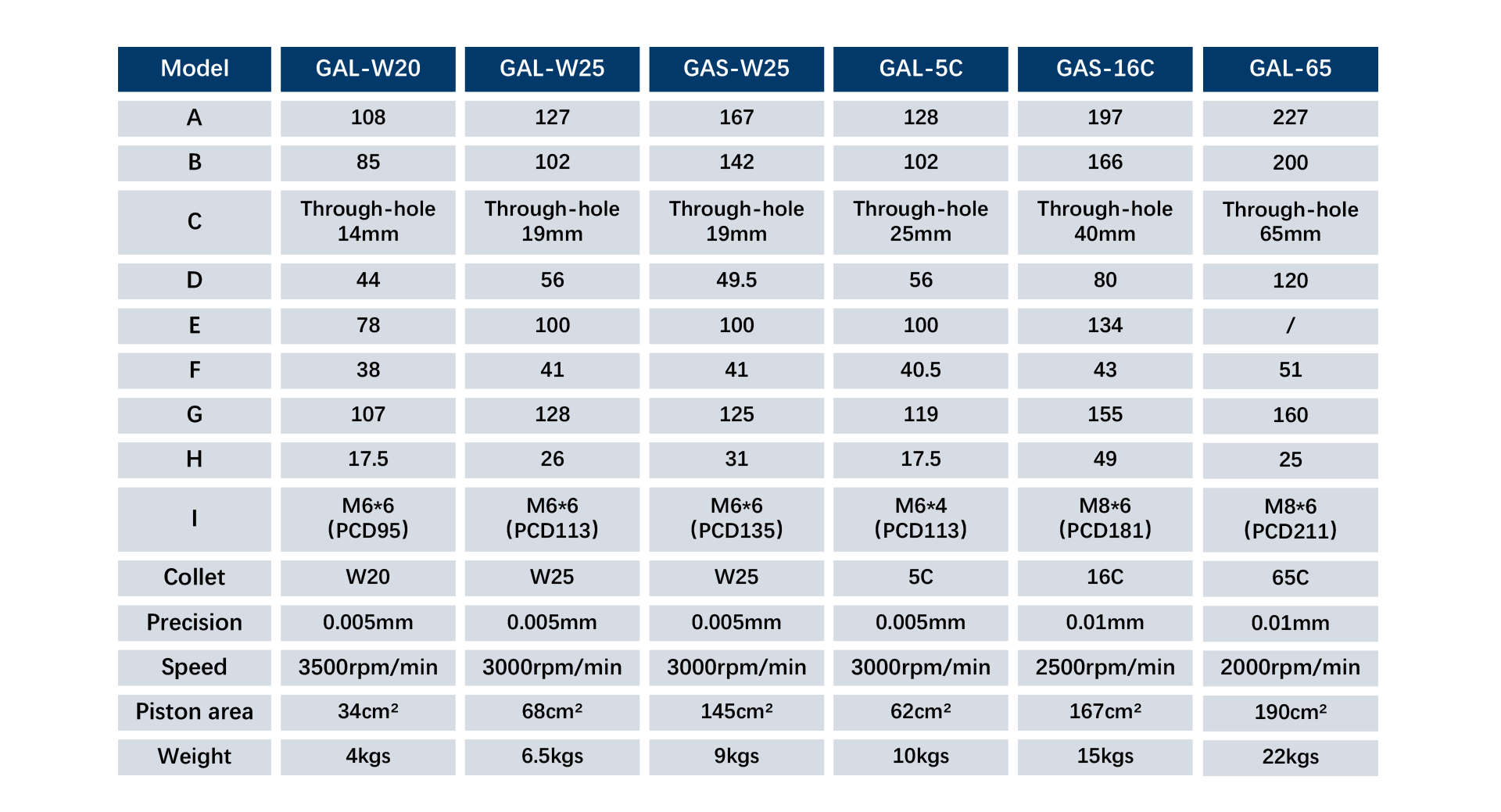

Model
DGDR GAL-W20
DGDR GAL-W25

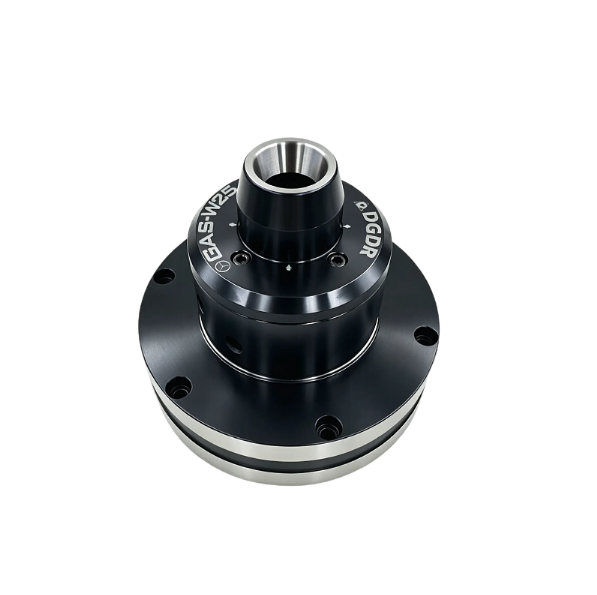

DGDR GAS-W25

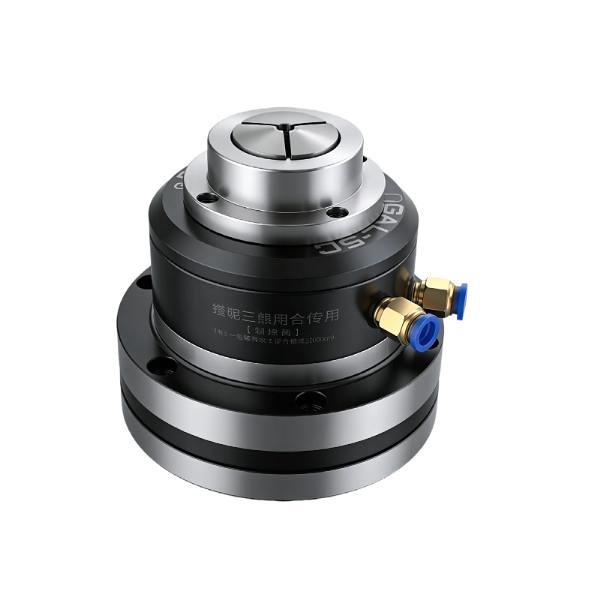

DGDR GAL-5C

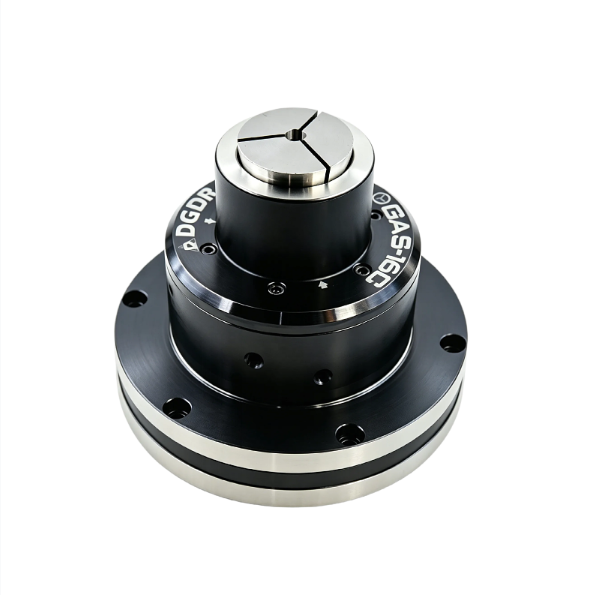

DGDR GAS-16C
DGDR GAL-65
Steel Chuck Body stable reliable performance
Chuck supports both internal expansion external clamping
Clamping repeatability within 0.005 mm
No additional cylinders required
Operating air pressure: 3–8 kg/cm²; dustproof waterproof
Suitable for various precision specialized machines grinding machines,
4-axis and 5-axis machines inspection equipment, and similar applications
How to choose the right chuck model for your machine?
Please fill in the following.
Would you like a rotary type or a fixed type chuck?
Rotary (Rotary Type):
The chuck rotates together with the machine tool spindle,
making it suitable for workpieces that require continuous rotary machining.
Fixed (Fixed Type):
The chuck is mounted on the machine bed and does not rotate.
It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
