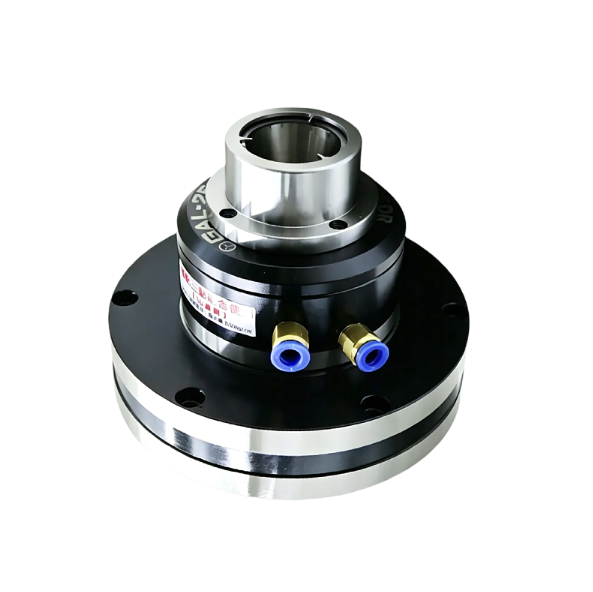

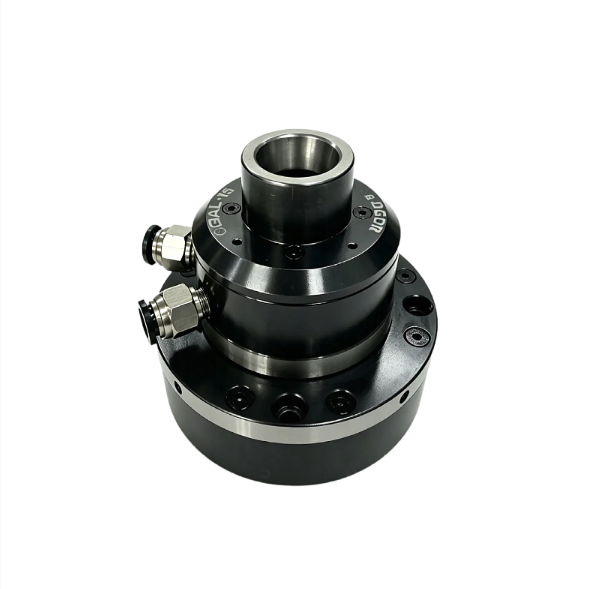

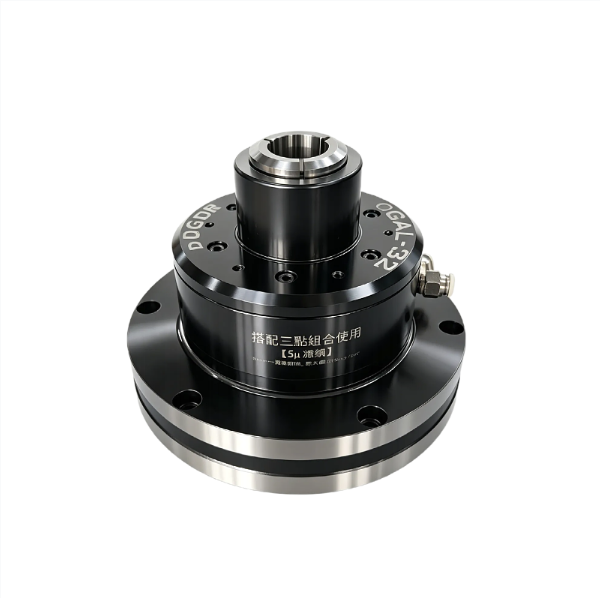

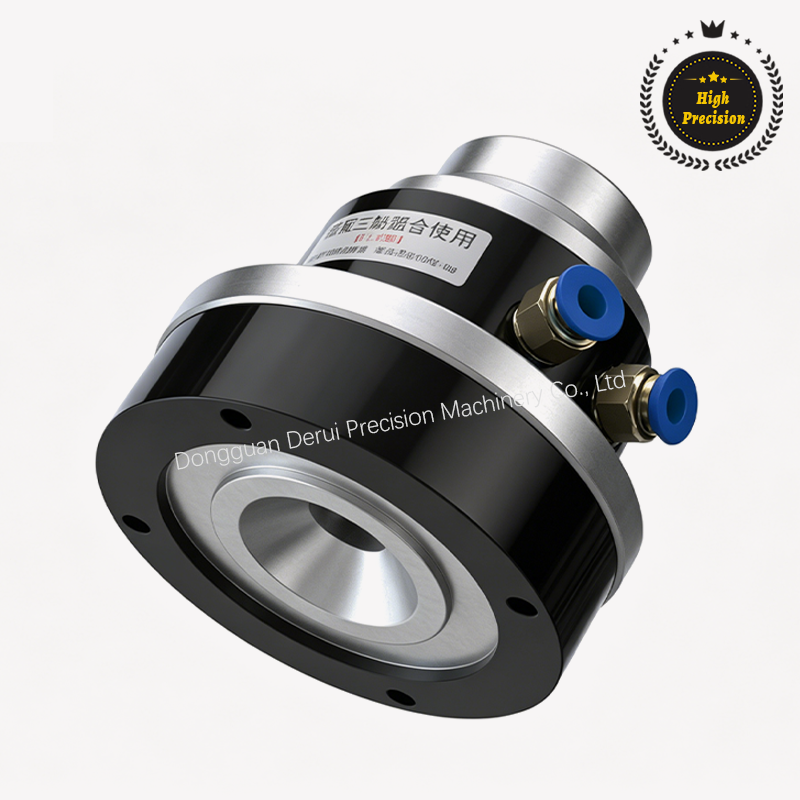

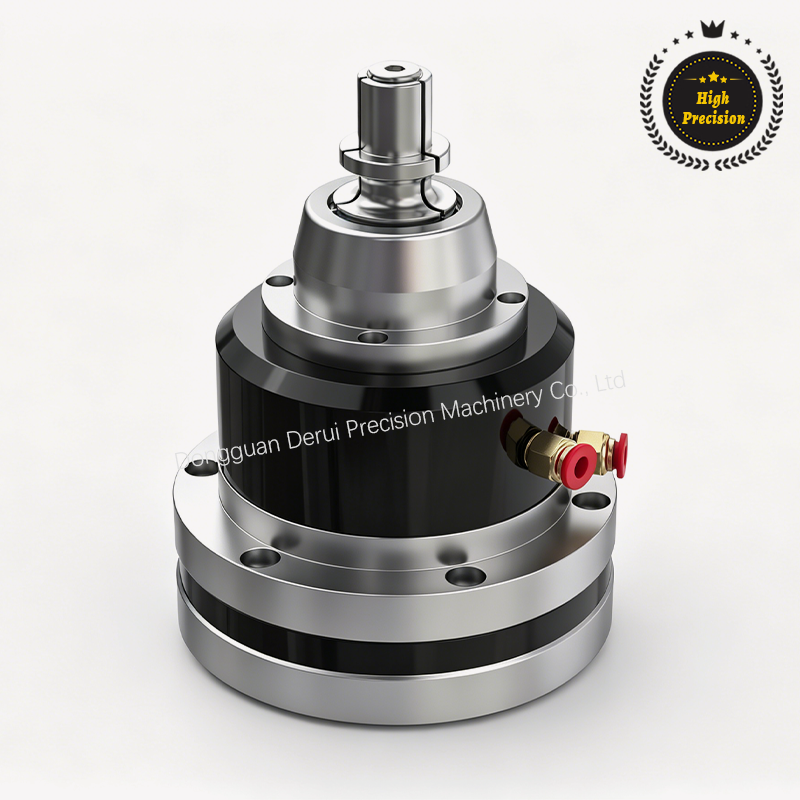

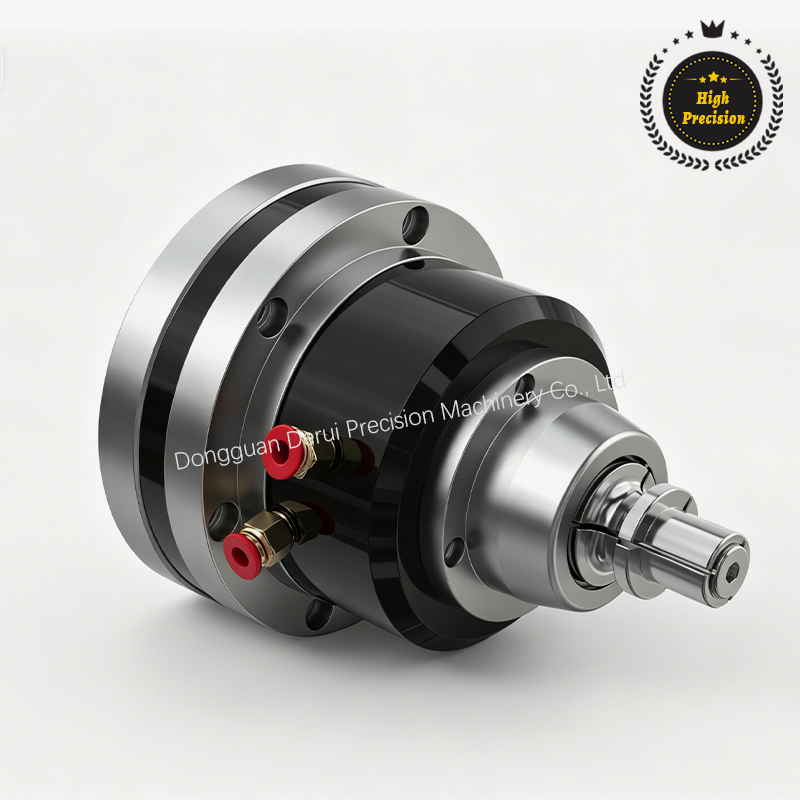

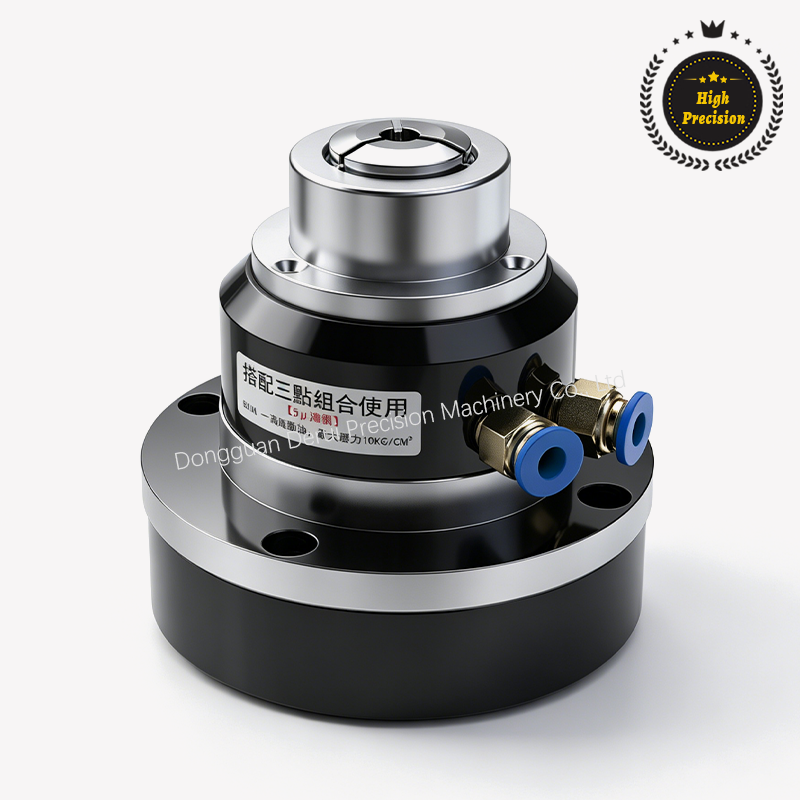

GAL Series

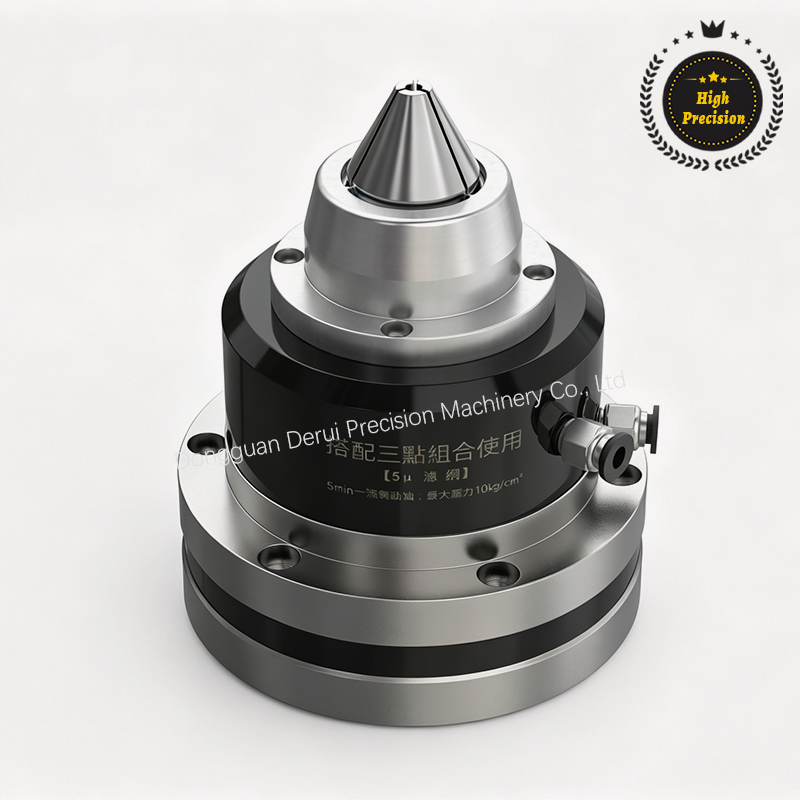

Pneumatic Rotary Chuck
High Precision
$ 811 USDMotor price not included

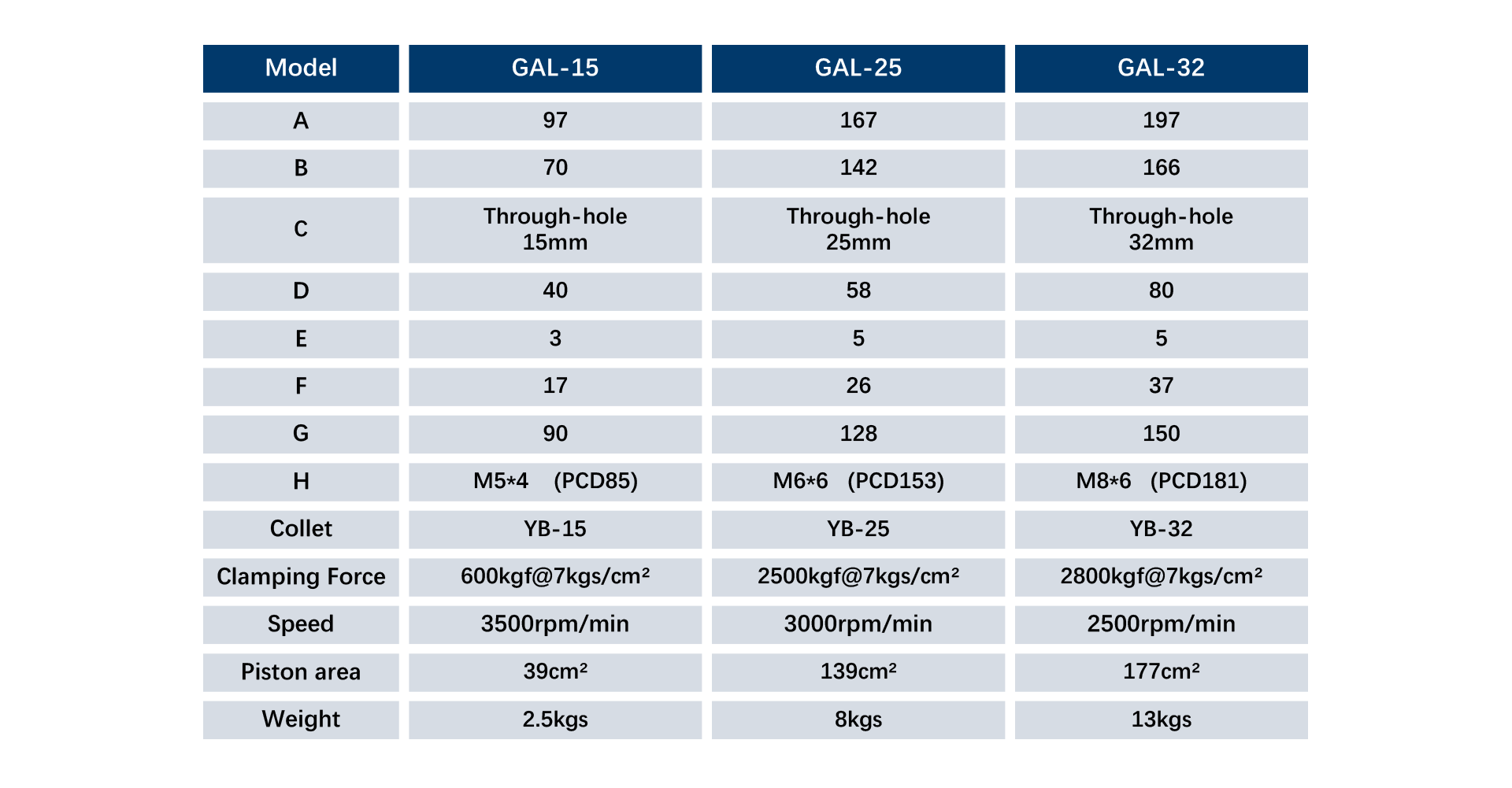

Model
DGDR GAL-15
DGDR GAL-25
DGDR GAL-32
Steel collet body, offering a long service life
Small installation outer diameter, large through-hole
High precision clamping repeatability within 0.01 mm
Chuck Internal Expansion and External Clamping
No additional cylinders (hydraulic cylinders) required
Operating air pressure: 3–8 kg/cm²; dustproof waterproof
Suitable for various precision specialized machines grinding machines, 4-axis and 5-axis machines
How to choose the right chuck model for your machine?
Please fill in the following.
Would you like a rotary type or a fixed type chuck?
Rotary (Rotary Type):
The chuck rotates together with the machine tool spindle,
making it suitable for workpieces that require continuous rotary machining.
Fixed (Fixed Type):
The chuck is mounted on the machine bed and does not rotate.
It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.

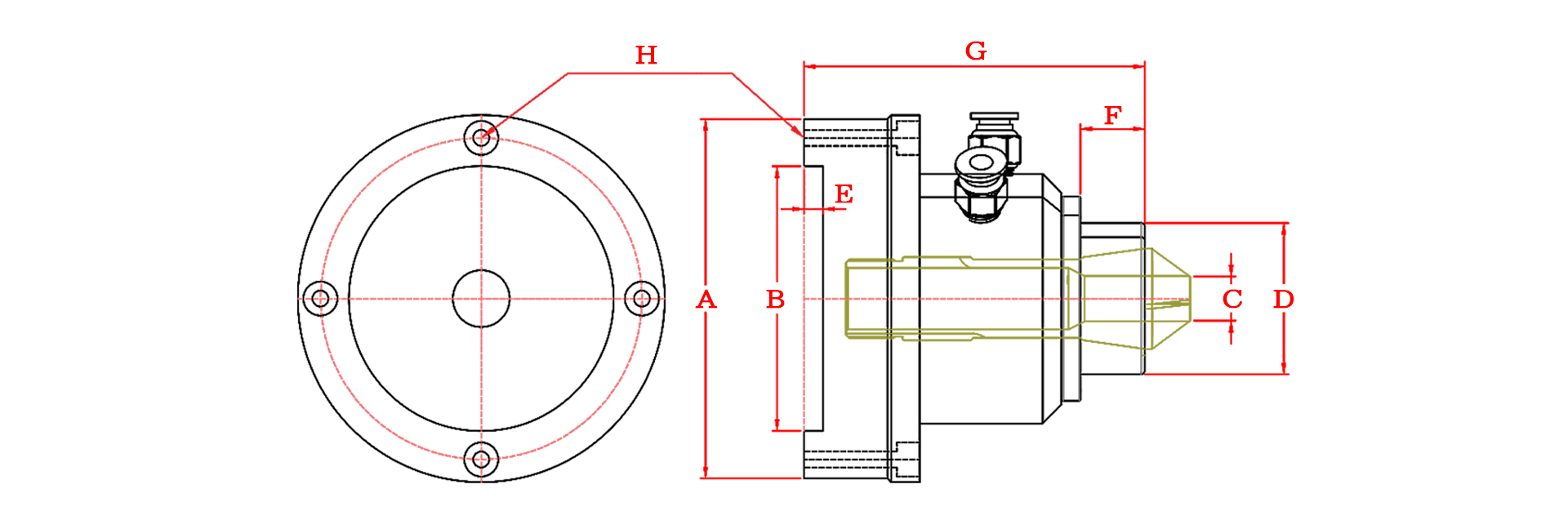

STEP Format
