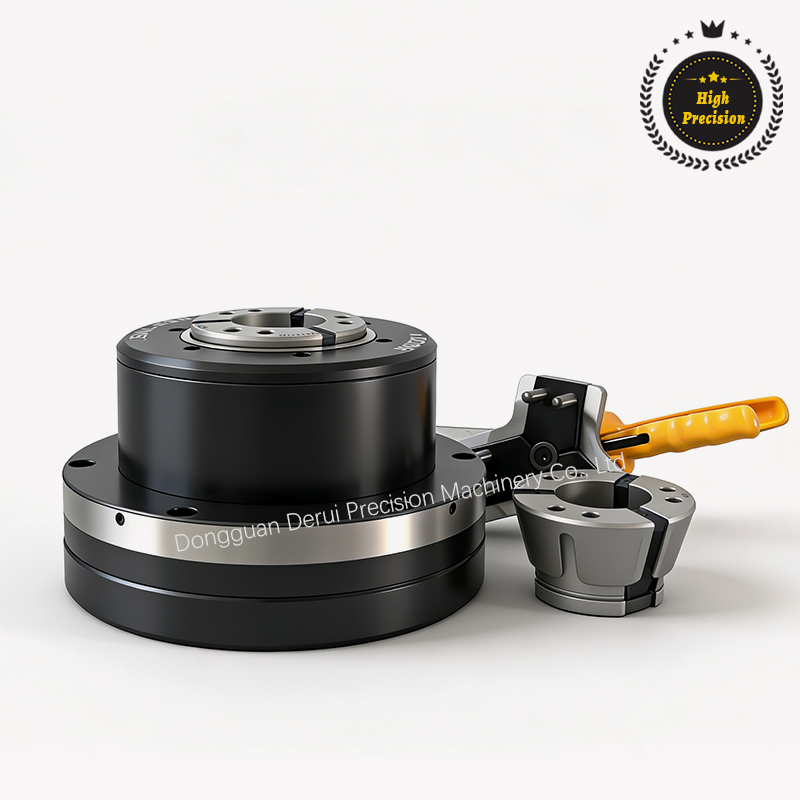

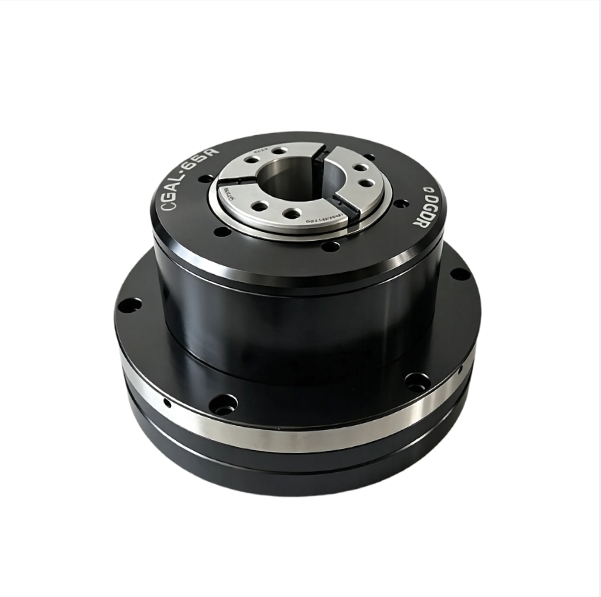

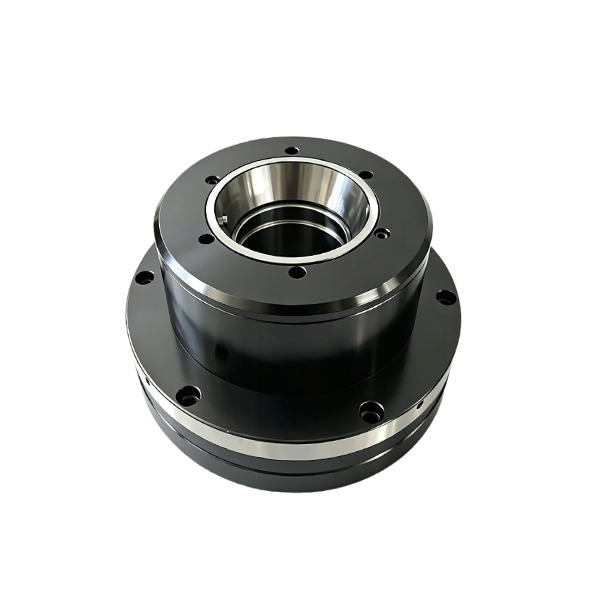

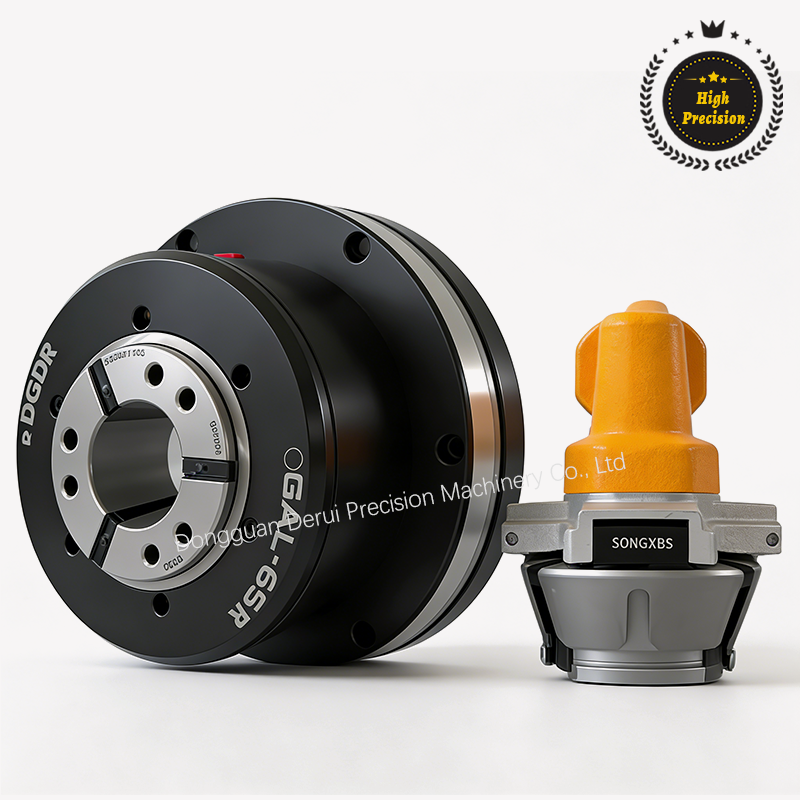

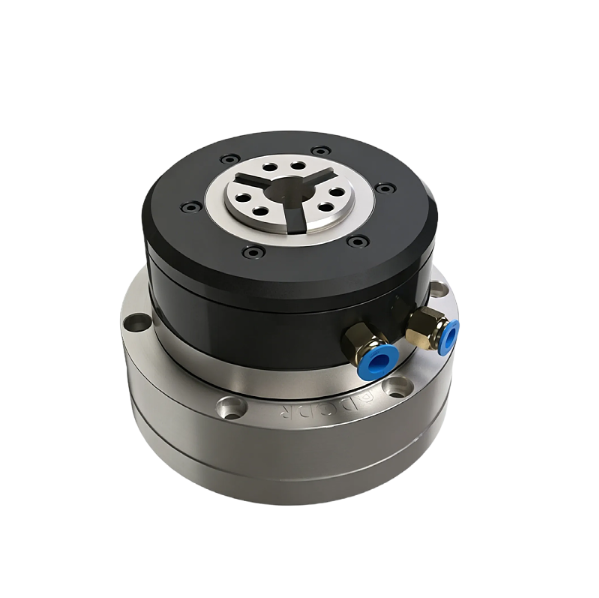

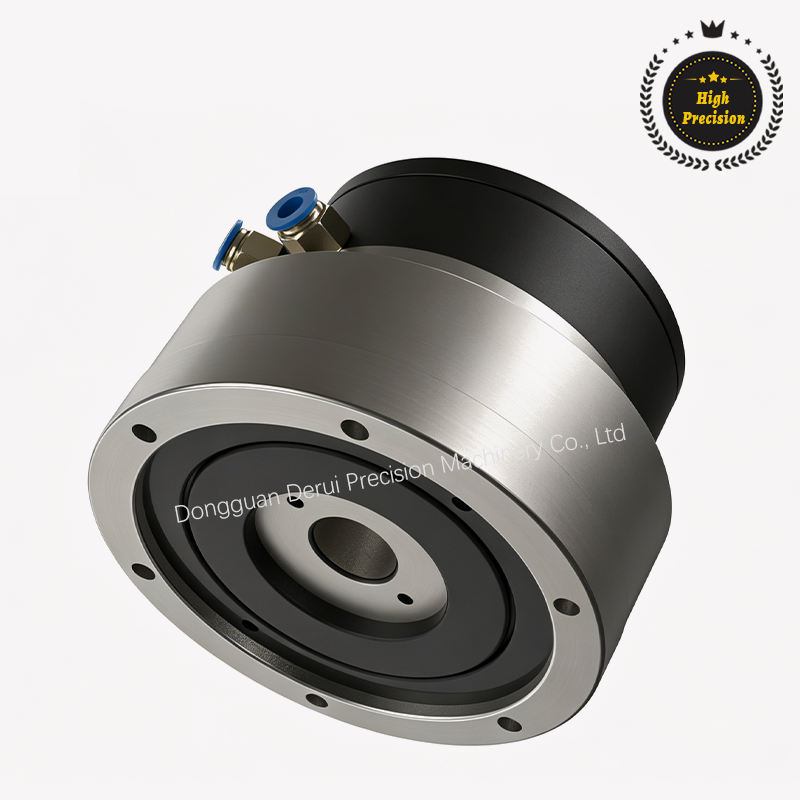

GAL-R Series
Pneumatic Rotary Chuck
High Precision
$ 1815 USDMotor price not included

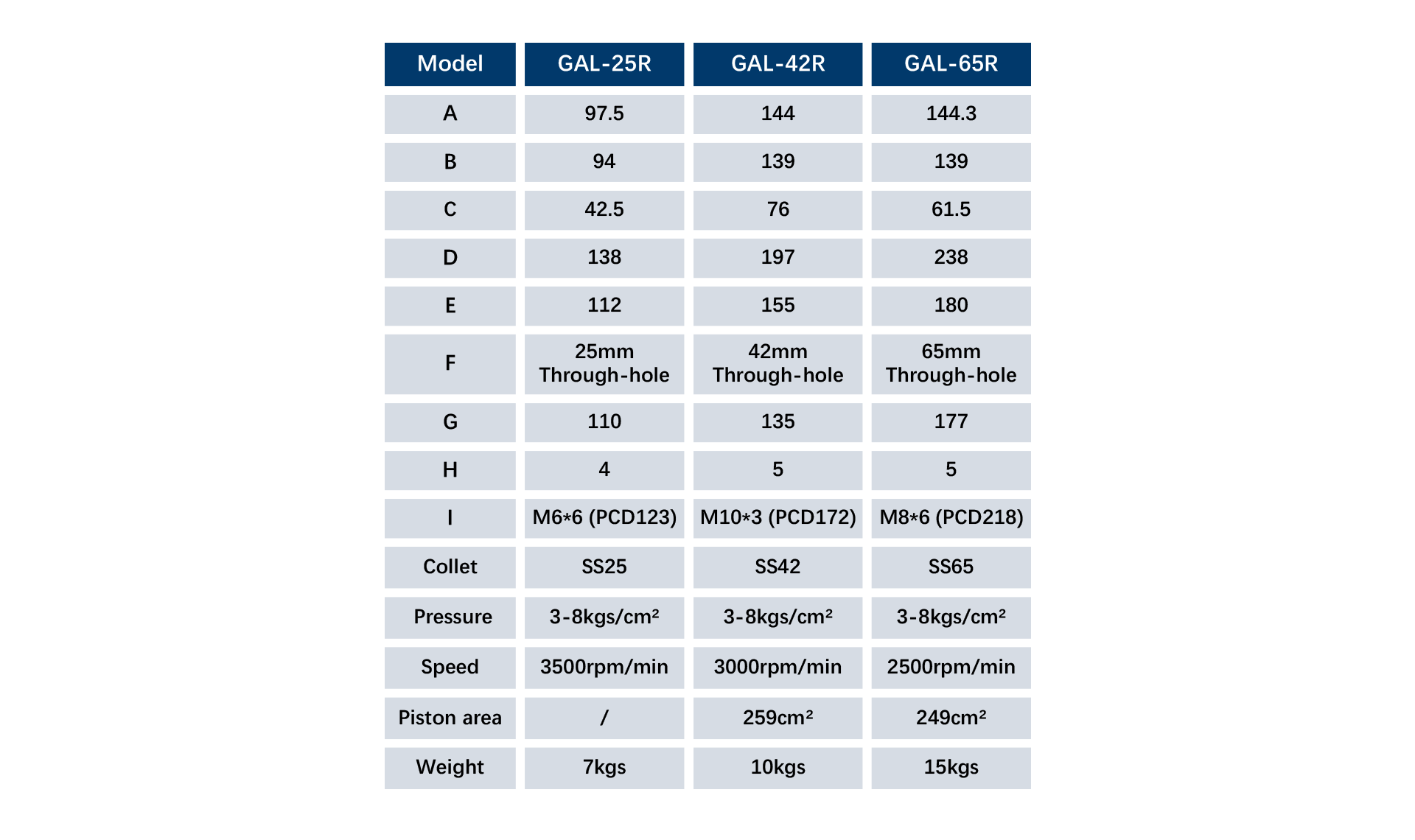

Model
DGDR GAL-25R
DGDR GAL-42R

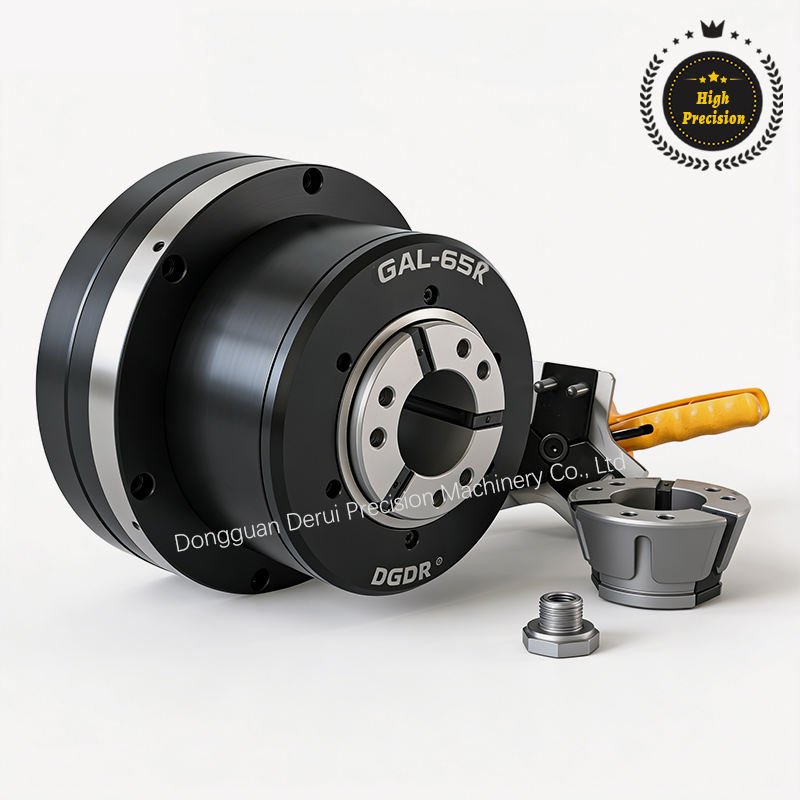

DGDR GAL-65R
Clamping Repeatability within 0.005 mm, Requires no external mounting cylinder

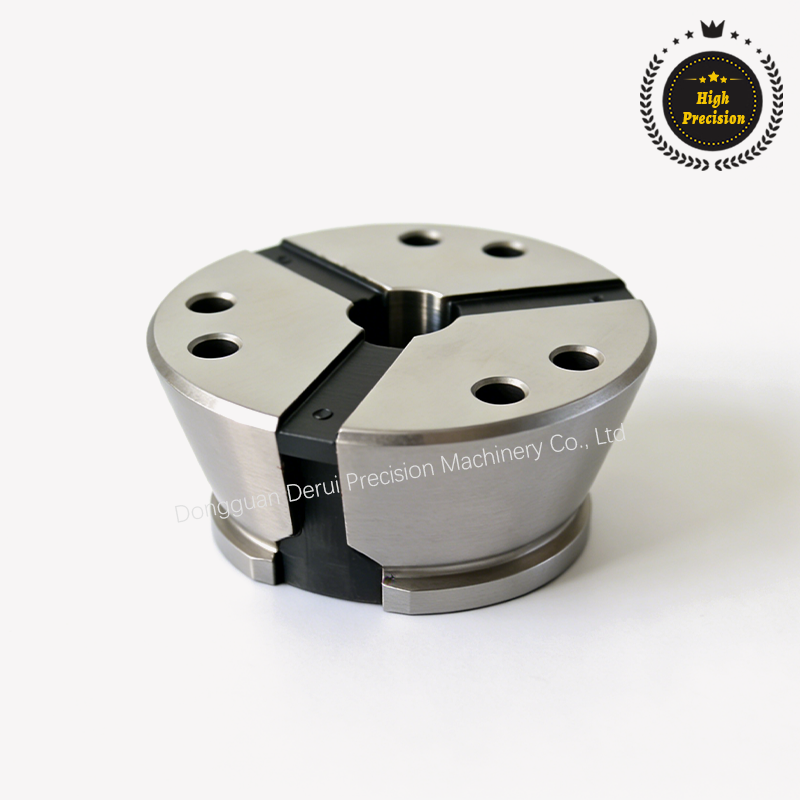

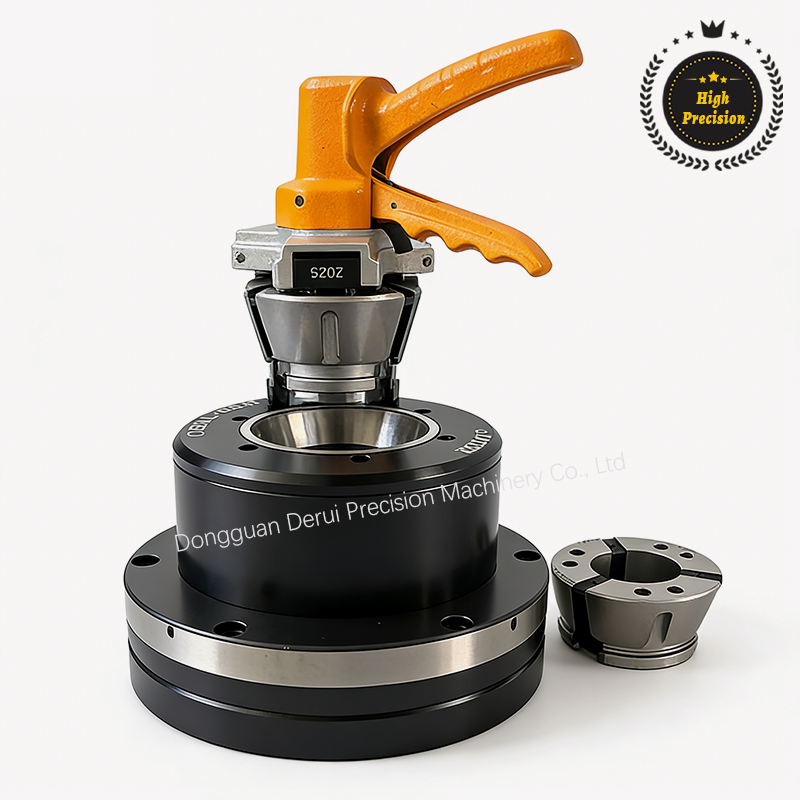

compatible with rubber collet, Facilitates rapid jaw, changes via a dedicated jaw-unloading
tool, easy to operate. Suitable for a wide range of applications, including CNC lathes
4-axis and 5-axis, machining centers, automated and semi-automated
equipment retrofits, and specialized machinery, Dustproof and waterproof (when pressurized)
How to choose the right chuck model for your machine?
Please fill in the following.
Would you like a rotary type or a fixed type chuck?
Rotary (Rotary Type):
The chuck rotates together with the machine tool spindle,
making it suitable for workpieces that require continuous rotary machining.
Fixed (Fixed Type):
The chuck is mounted on the machine bed and does not rotate.
It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
STEP Format
PDF Format
