GM Series

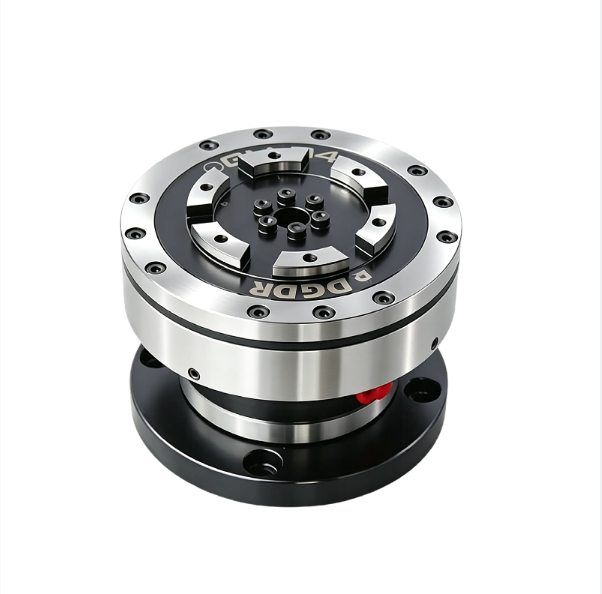

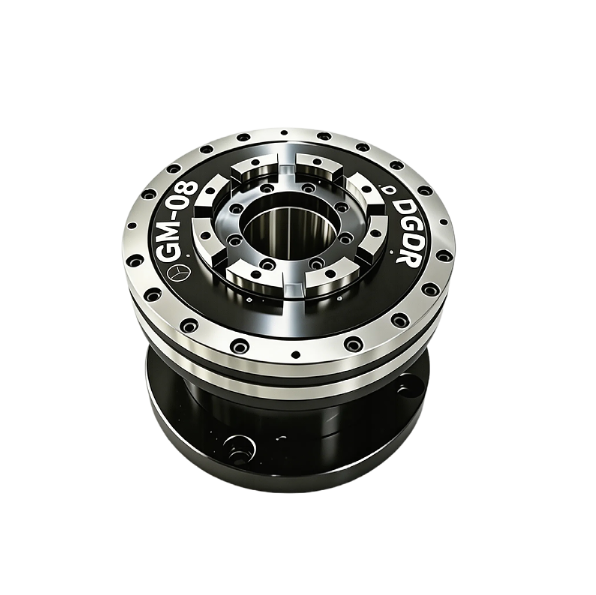

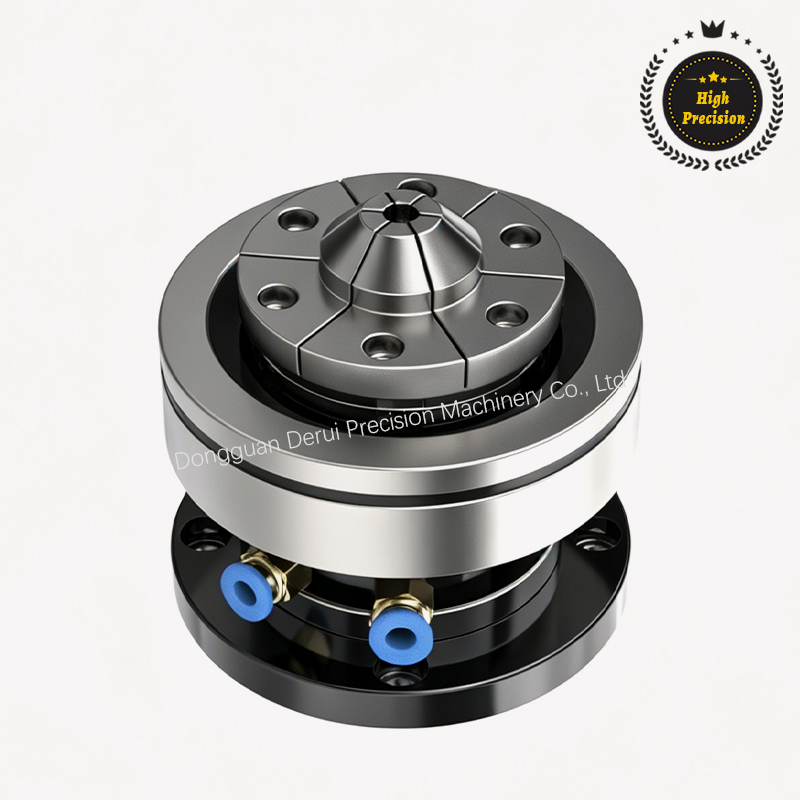

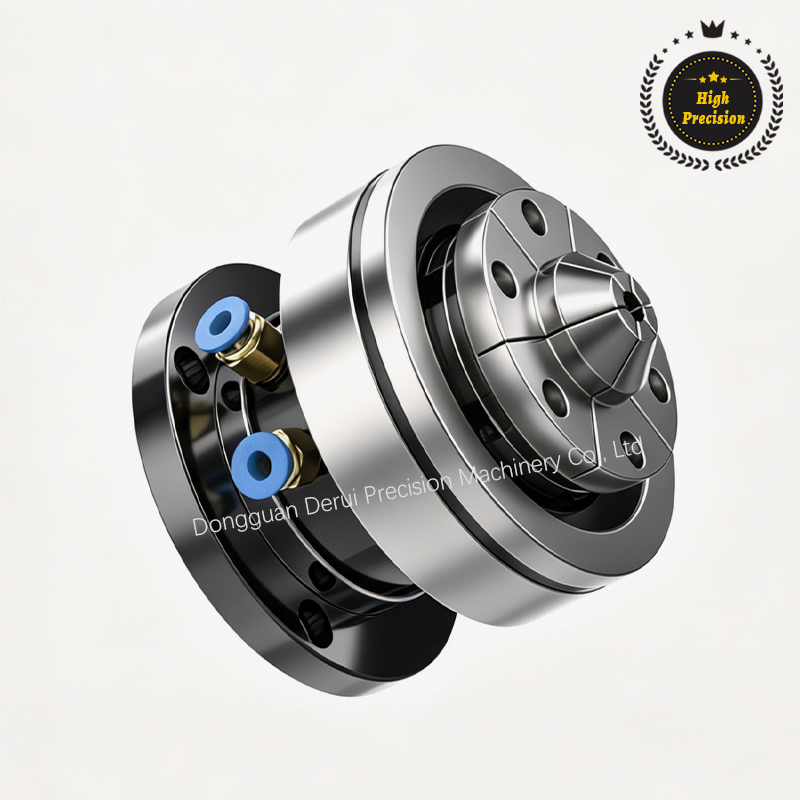

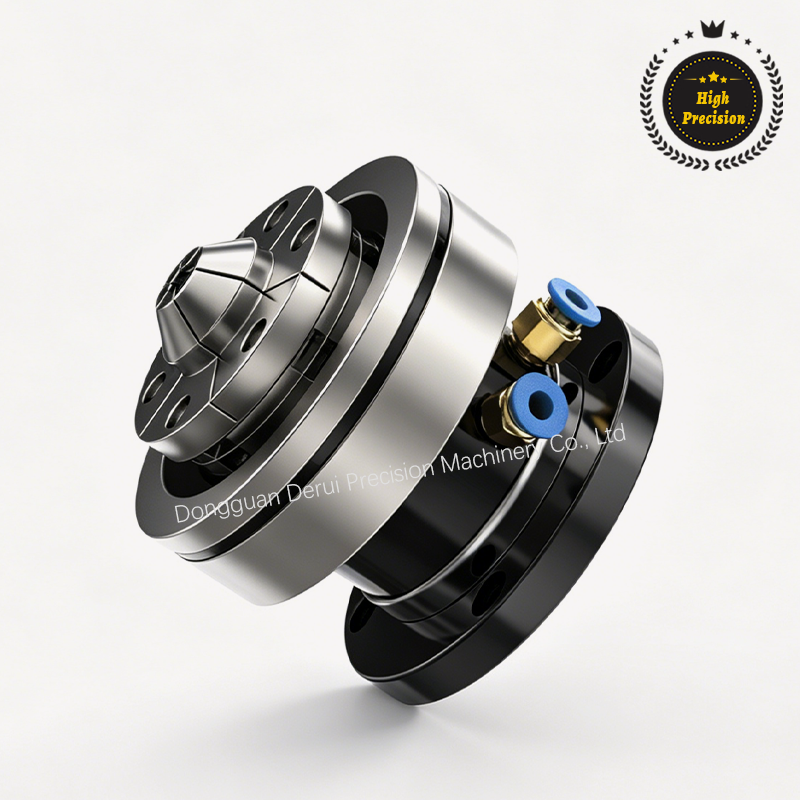

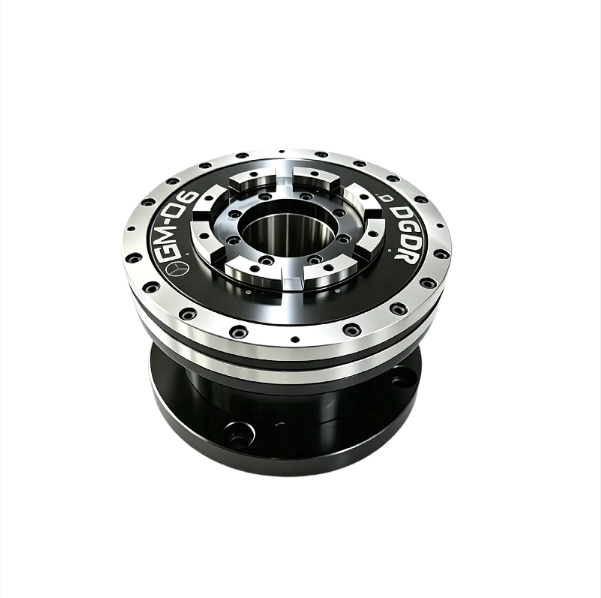

Diaphragm Pneumatic Rotary Chuck
High Precision
$ 922 USDMotor price not included

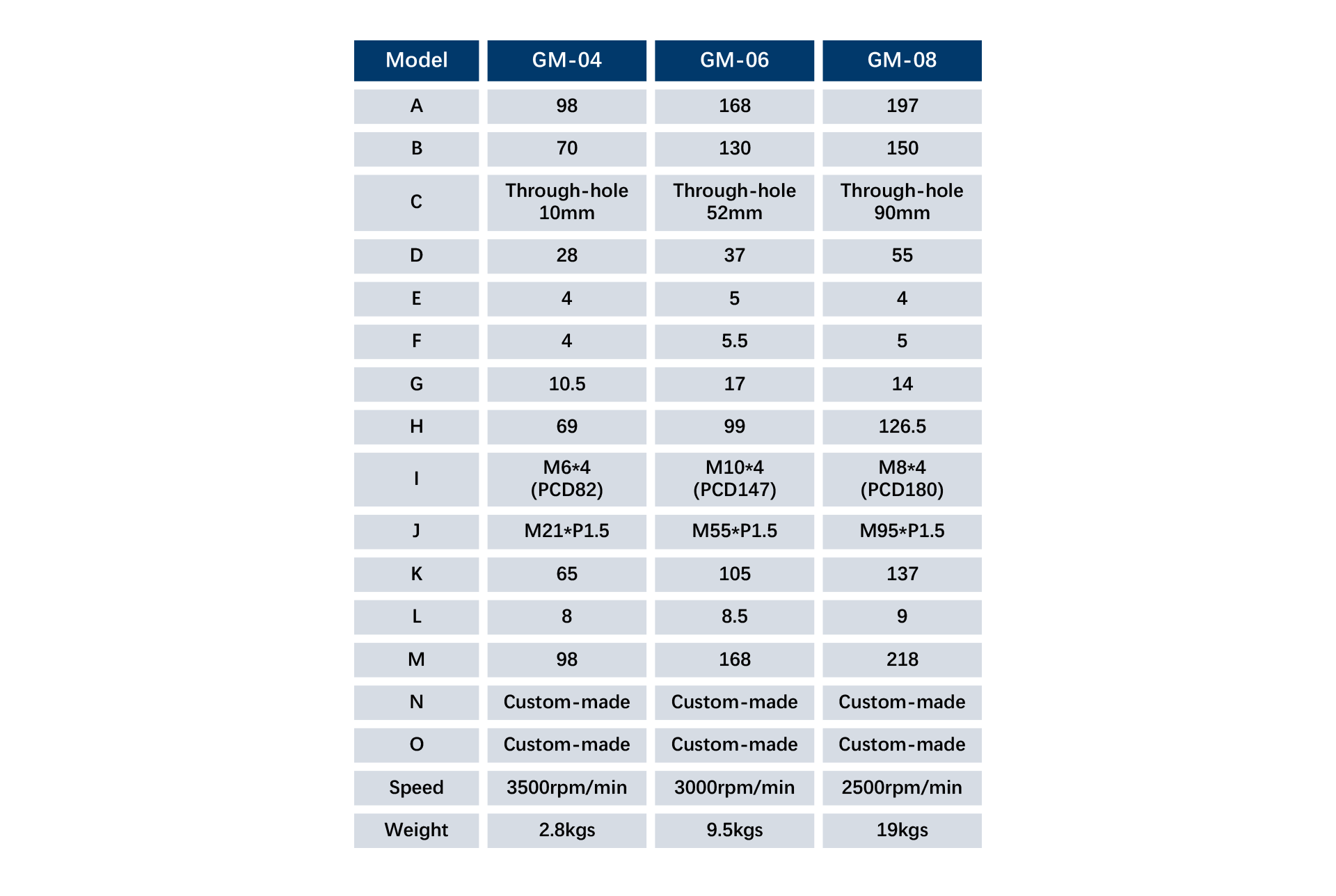

Model
DGDR GM-04
DGDR GM-06
DGDR GM-08
No external cylinder installation required.
Operating air pressure: 3–8 kg/cm²; features a side-mounted air inlet for clamping and
unclamping operations.The air hose connection remains stationary (non-rotating), ensuring a
repetitive clamping accuracy of 0.005 mm.Capable of both internal expansion and external clamping;
expansion/clamping stroke: 0.02 mm.Ideal for holding thin-walled or lightweight
workpieces that are fragile or prone to deformation.Suitable for use with precision
CNC lathes, precision grinding machines, and inspection equipment.
How to choose the right chuck model for your machine?
Please fill in the following.
Would you like a rotary type or a fixed type chuck?
Rotary (Rotary Type):
The chuck rotates together with the machine tool spindle,
making it suitable for workpieces that require continuous rotary machining.
Fixed (Fixed Type):
The chuck is mounted on the machine bed and does not rotate.
It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
