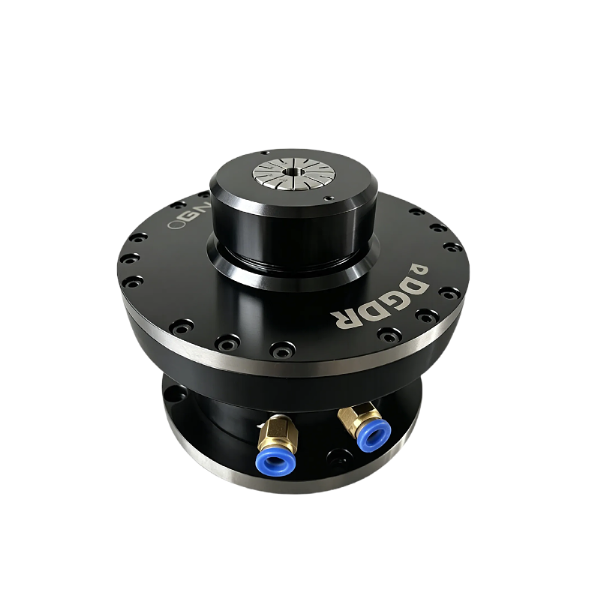

GNE-40

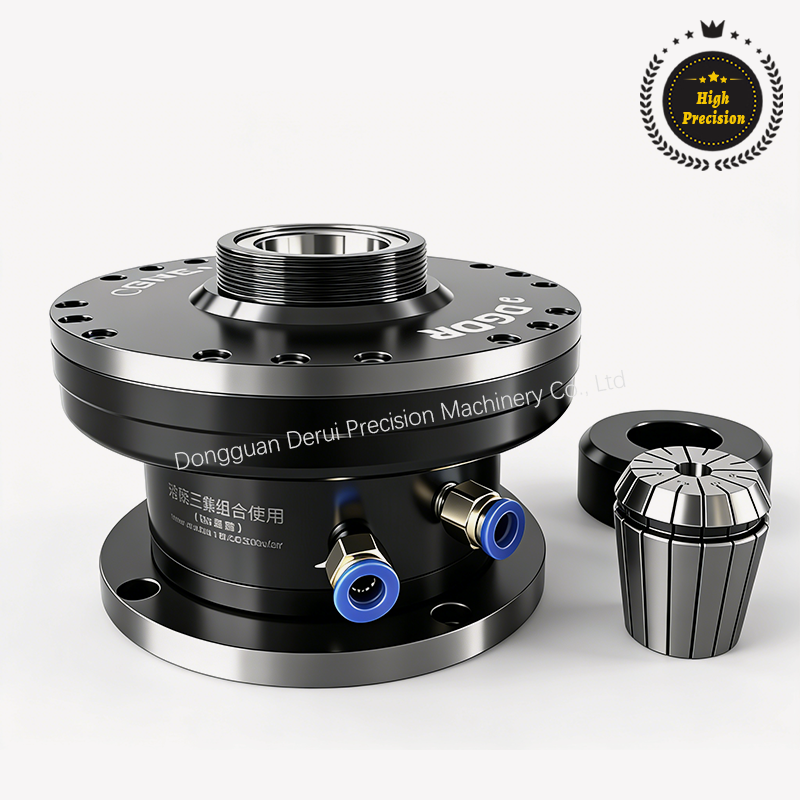

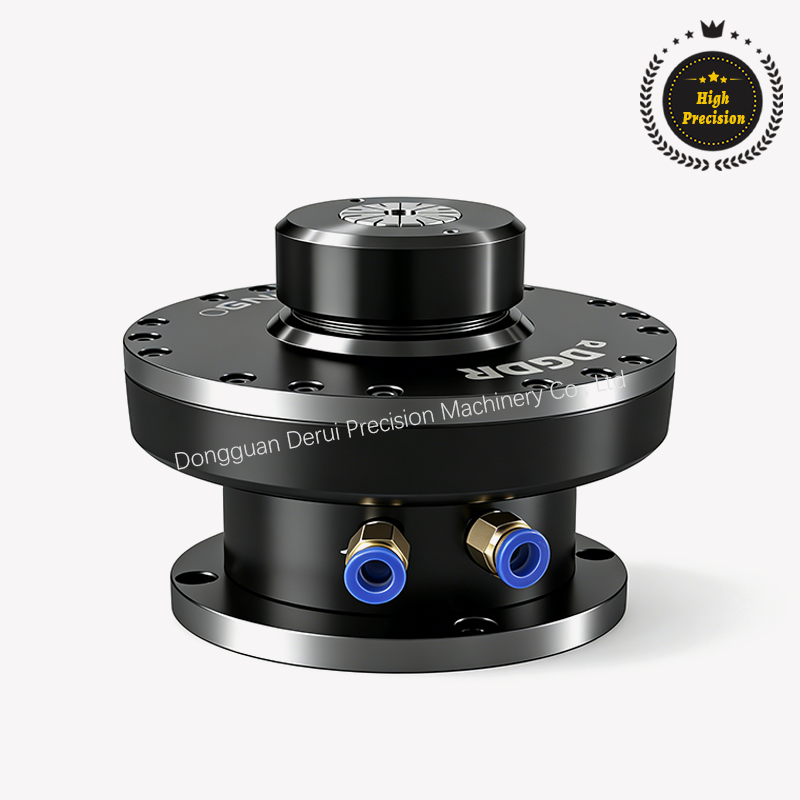

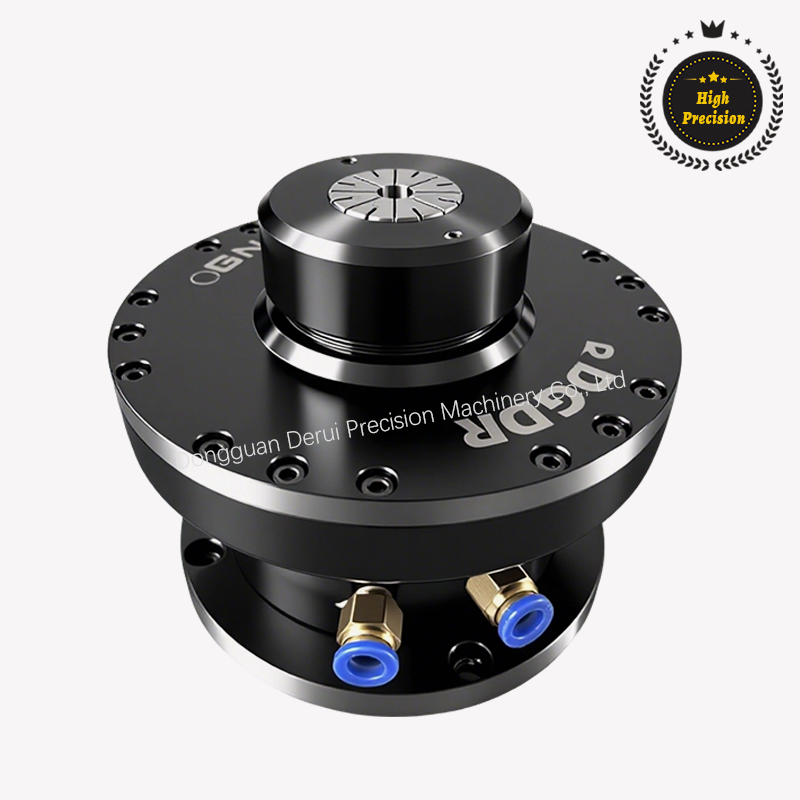

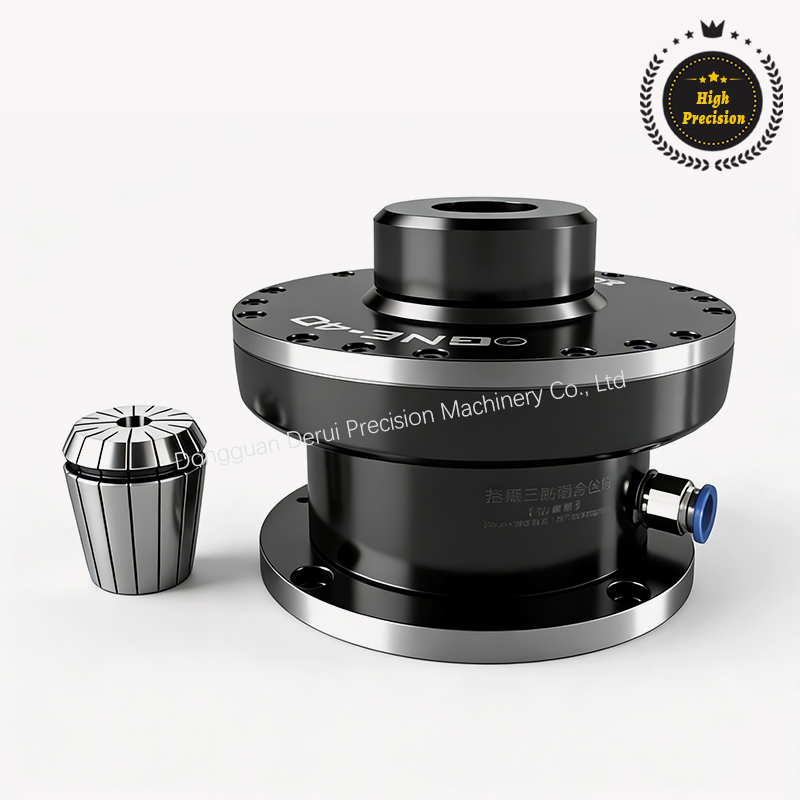

High-Precision Pneumatic Rotary Chuck
High Precision
$ 1463 USDMotor price not included

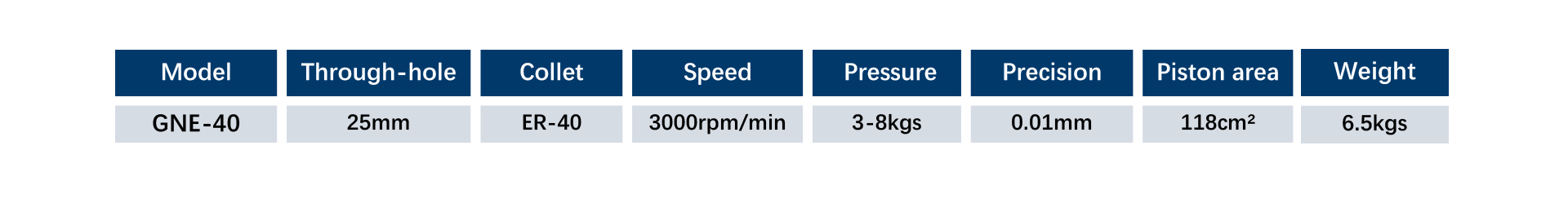

Model
DGDR GNE-40
Concentricity within 0.005mm
No additional cylinders required
Used with automated machinery such as
machining centers and 4-axis/5-axis CNC lathes, Enables continuous loading and unloading
without stopping, facilitating automated production
Tie-Rod Mechanism: Simply connect an air hose to
the side of the main body to execute both unclamping and clamping operations
Dustproof, Waterproof, and Resistant to Cutting Fluids
How to choose the right chuck model for your machine?
Please fill in the following.
Would you like a rotary type or a fixed type chuck?
Rotary (Rotary Type):
The chuck rotates together with the machine tool spindle,
making it suitable for workpieces that require continuous rotary machining.
Fixed (Fixed Type):
The chuck is mounted on the machine bed and does not rotate.
It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.

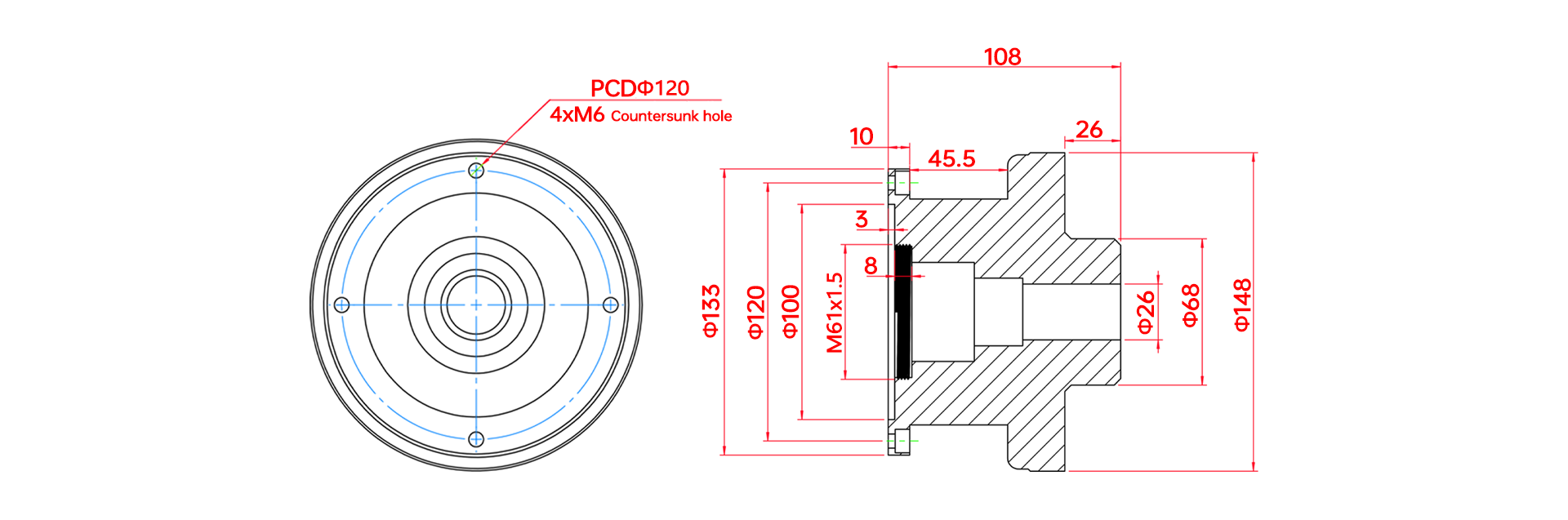

STEP Format
