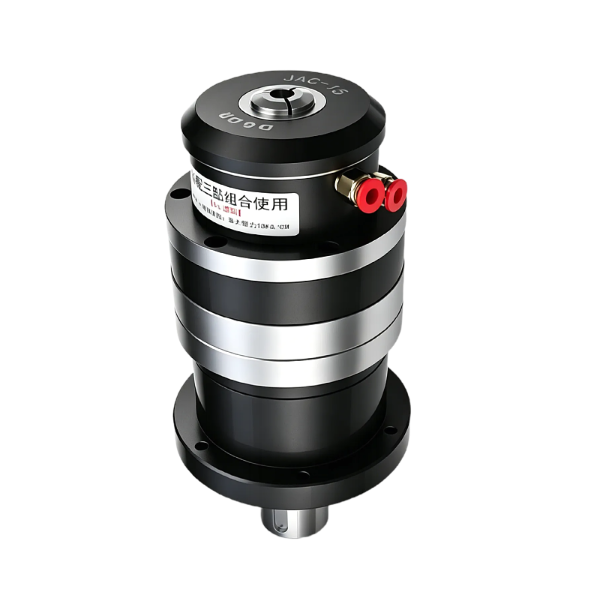

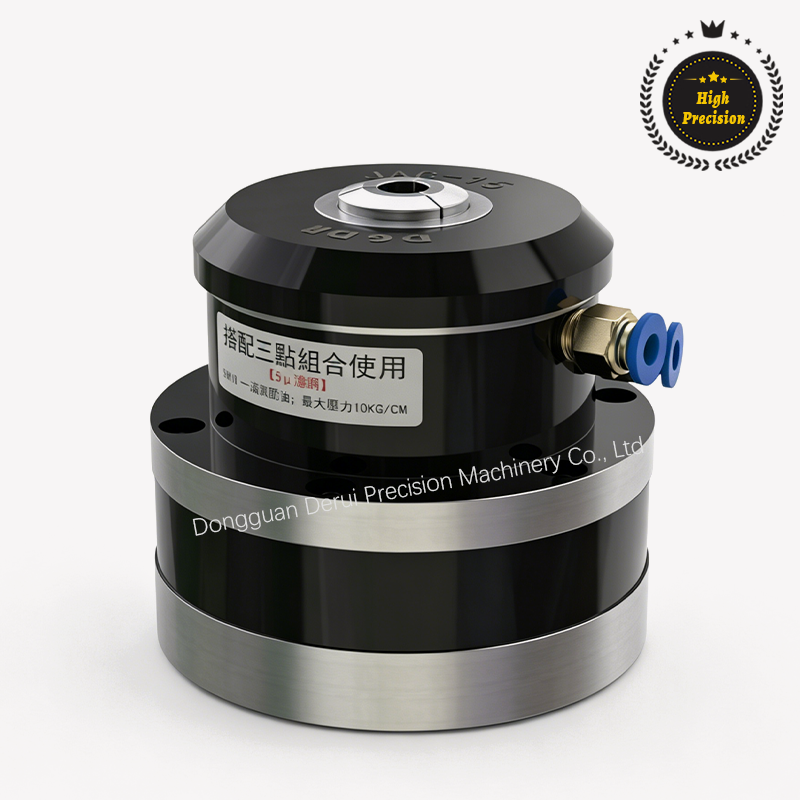

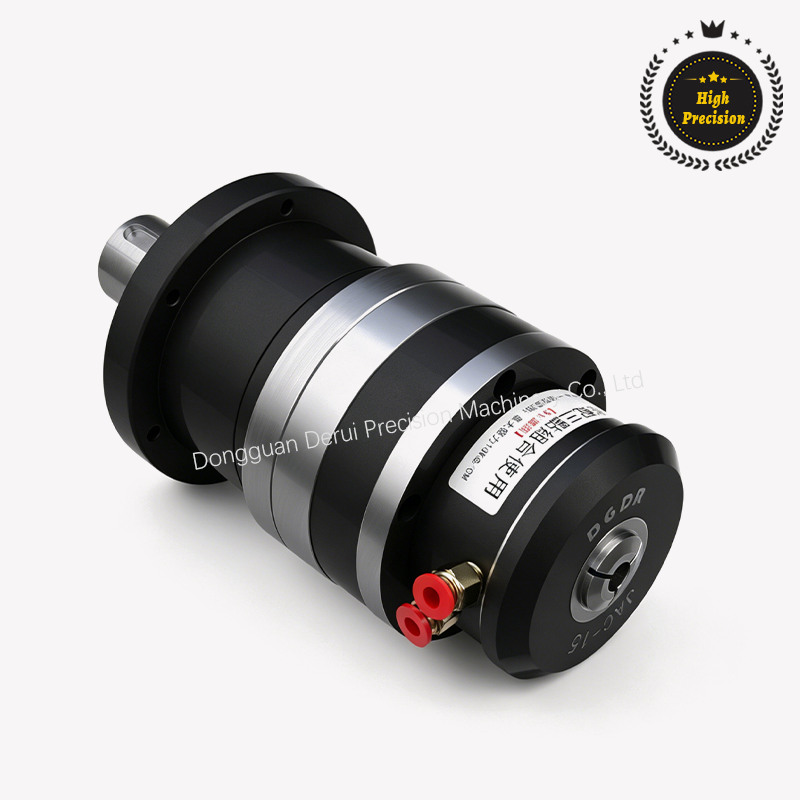

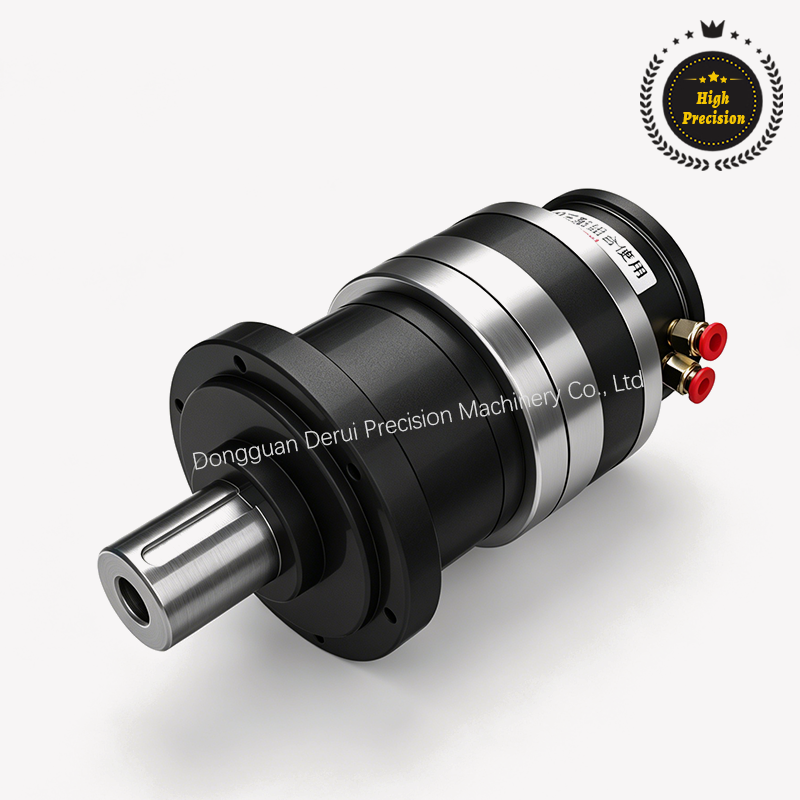

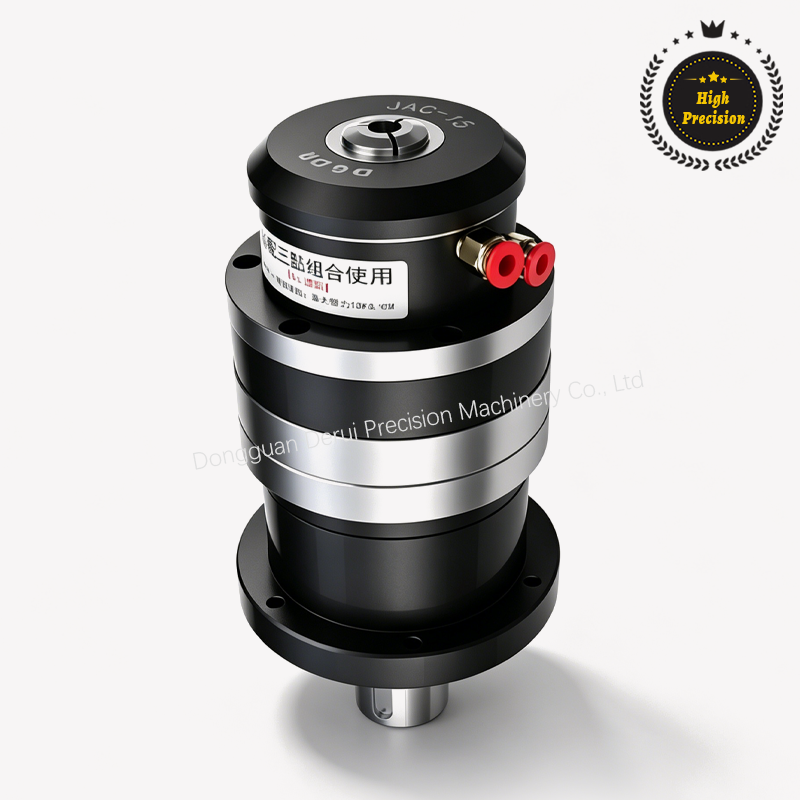

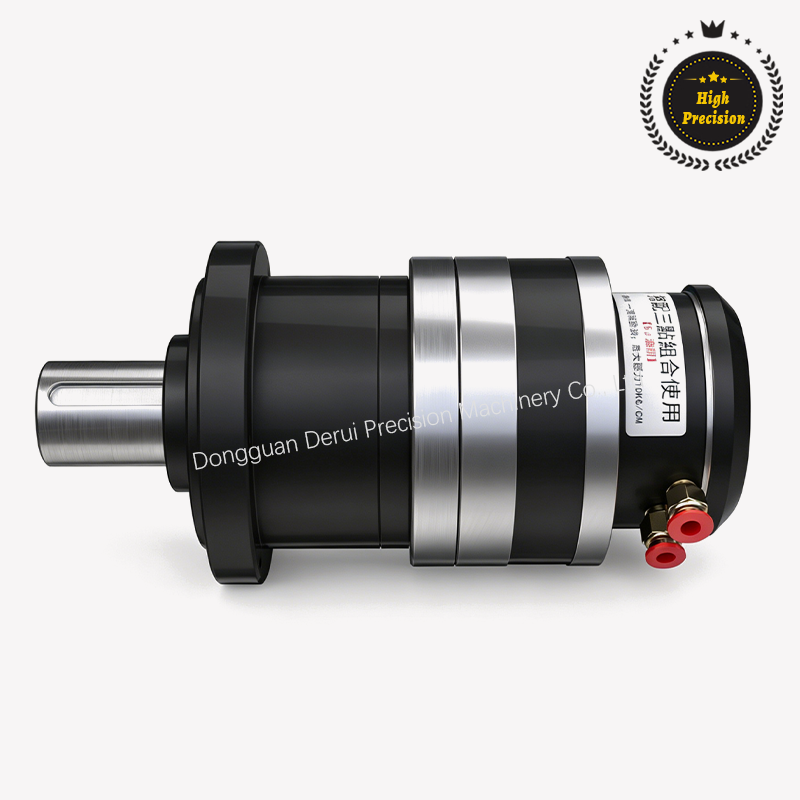

JAC Spindle Series
Vertical Spindle Integration
High Precision
$ 981 USDMotor price not included

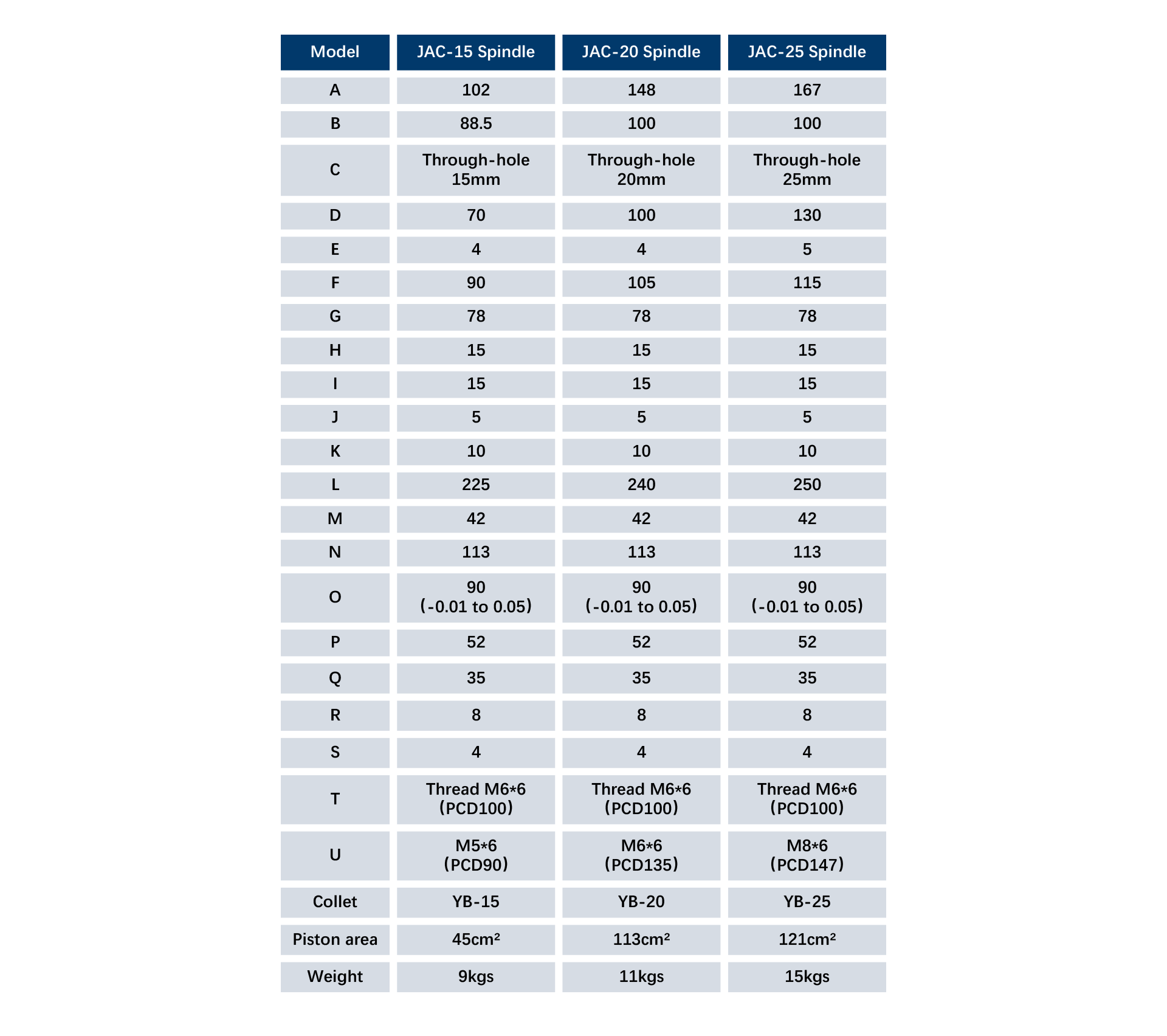

Model
DGDR JAC-15 Spindle
DGDR JAC-20 Spindle
DGDR JAC-25 Spindle
Steel collet body, offering a long service life.
No Additional Rotary Cylinder Installation Required
Clamping repeatability within 0.03 mm

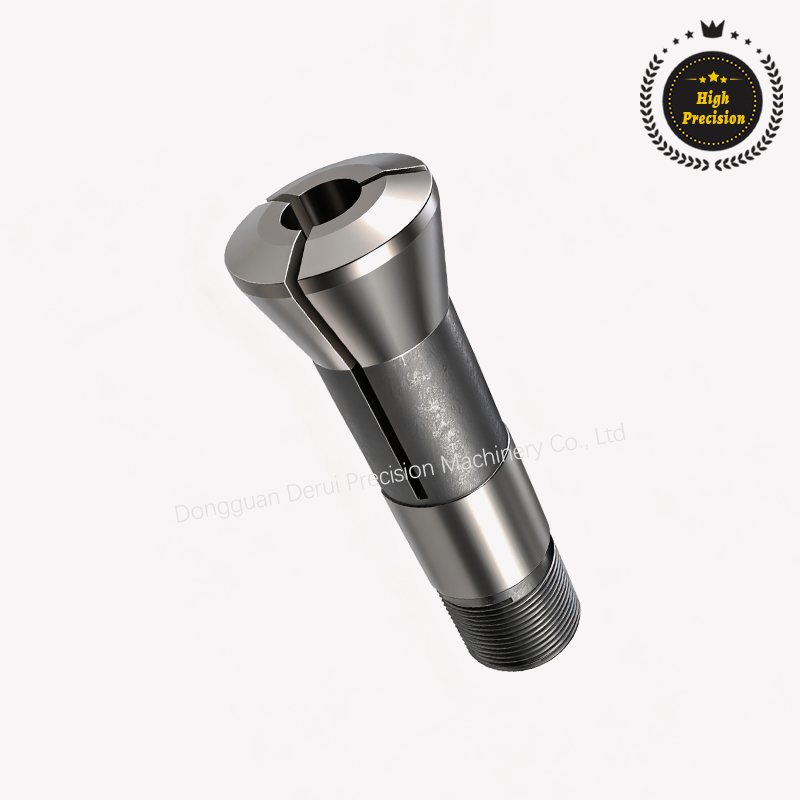

Through-hole chuck; collet can be interchanged for different workpieces
Maximum speed 1000 rpm/min
Air pressure: 3–8 kg/cm²; dustproof and waterproof
How to choose the right chuck model for your machine?
Please fill in the following.
Would you like a rotary type or a fixed type chuck?
Rotary (Rotary Type):
The chuck rotates together with the machine tool spindle,
making it suitable for workpieces that require continuous rotary machining.
Fixed (Fixed Type):
The chuck is mounted on the machine bed and does not rotate.
It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
