JAC-T8
Small Pneumatic Rotary Chuck
High Precision
$ 778 USDMotor price not included

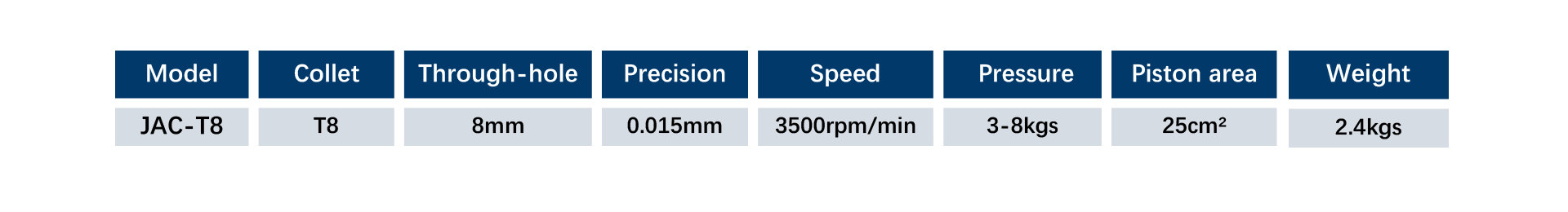

Model
DGDR JAC-T8

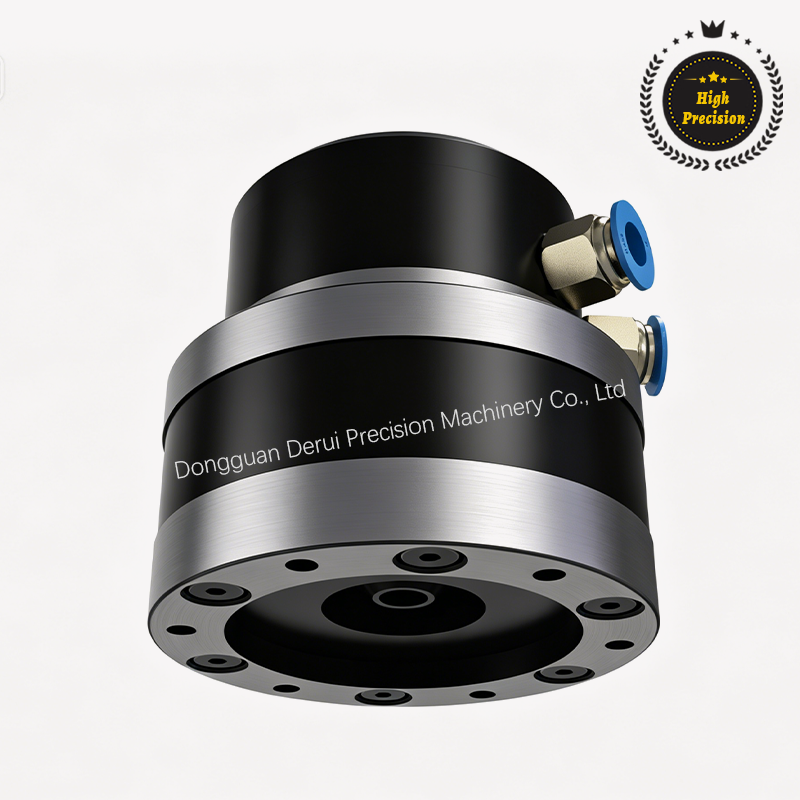

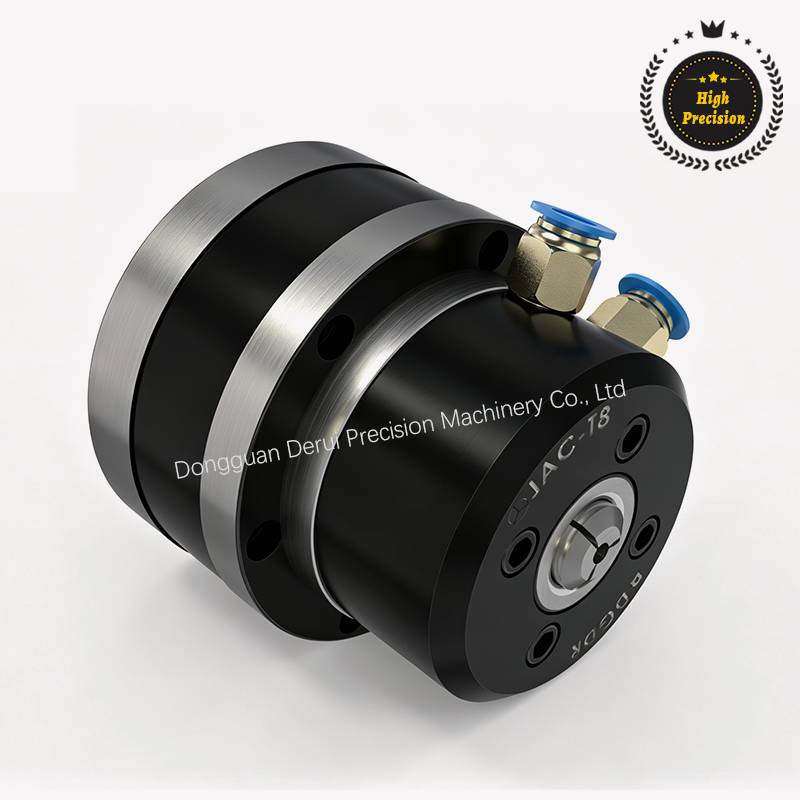

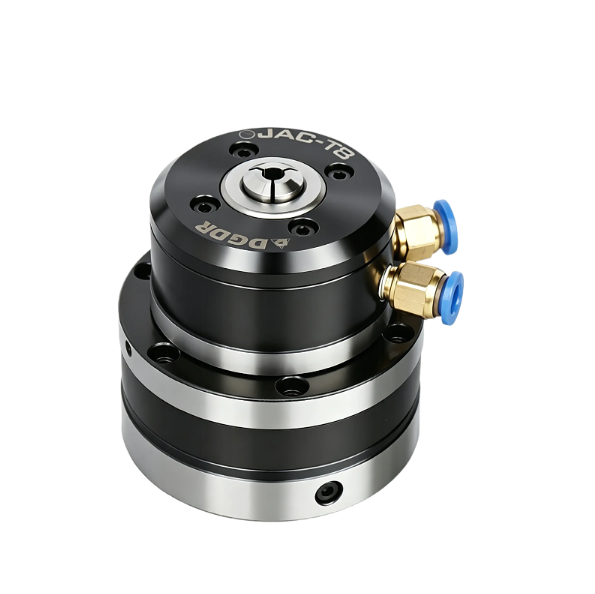

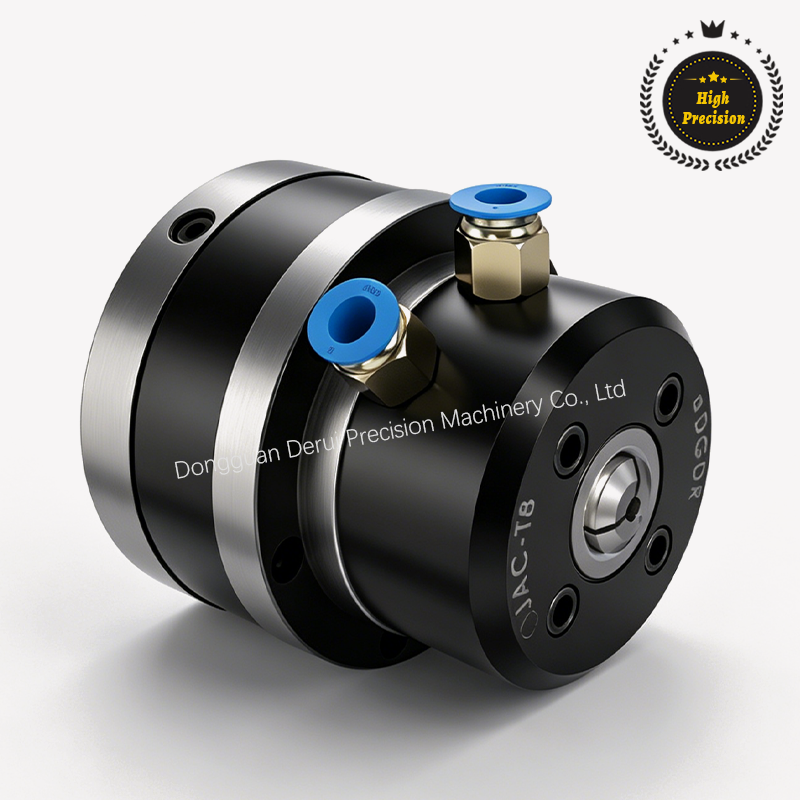

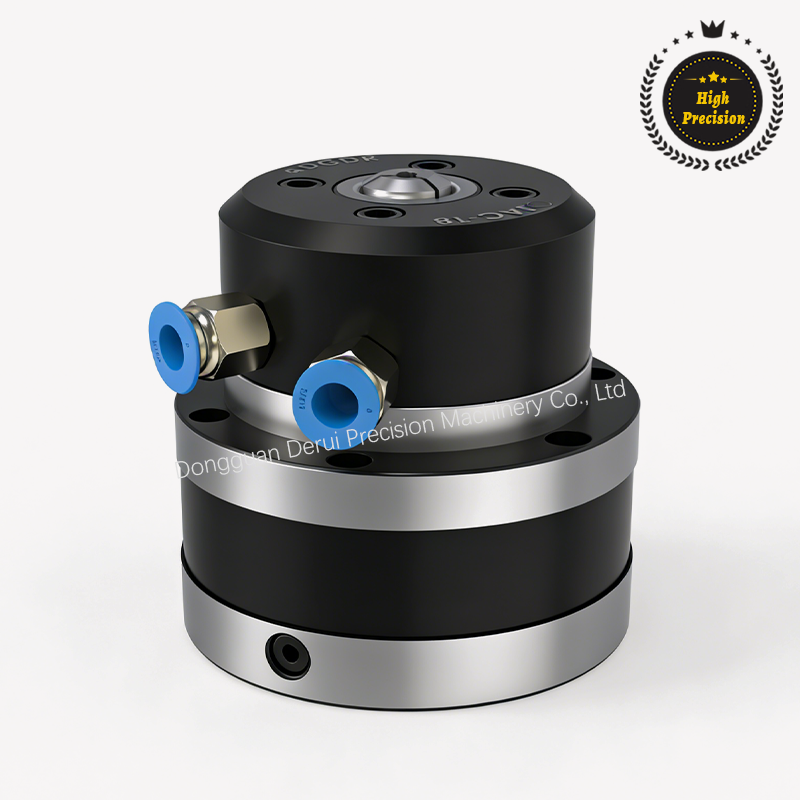

JAC-T8 is a front-mounted, hollow rotary pneumatic chuck
It requires no external rotary cylinder, features a compact

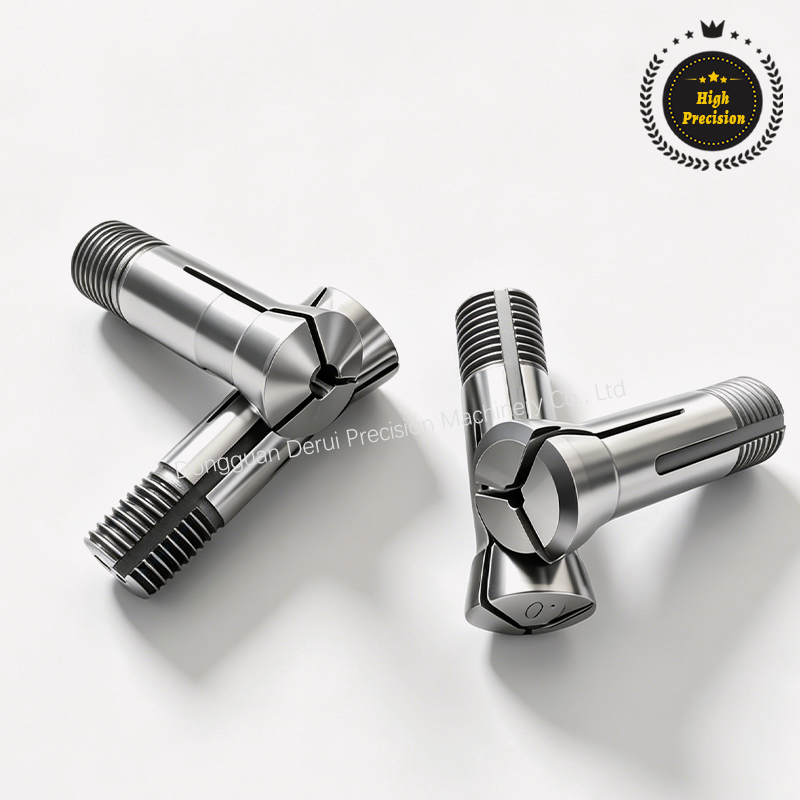

outer diameter, and allows for collet interchangeability
to accommodate various workpieces.It offers a
clamping range of 0.35–8 mm, with a body
runout precision of less than 0.01 mm.Featuring
an airtight, dustproof, and waterproof design
it is ideally suited for the machining of various
small parts—such as medical instruments and precision components
How to choose the right chuck model for your machine?
Please fill in the following.
Would you like a rotary type or a fixed type chuck?
Rotary (Rotary Type):
The chuck rotates together with the machine tool spindle,
making it suitable for workpieces that require continuous rotary machining.
Fixed (Fixed Type):
The chuck is mounted on the machine bed and does not rotate.
It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.

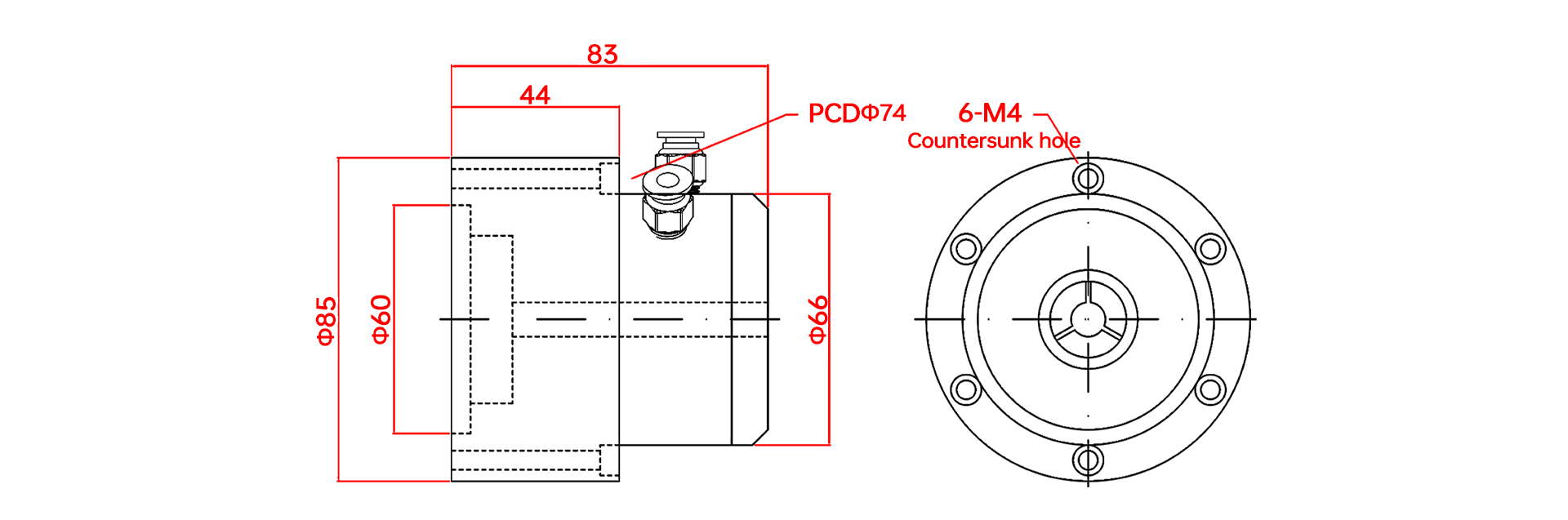

STEP Format
